Wheelhouse tabs - in or out?

[Twalker]

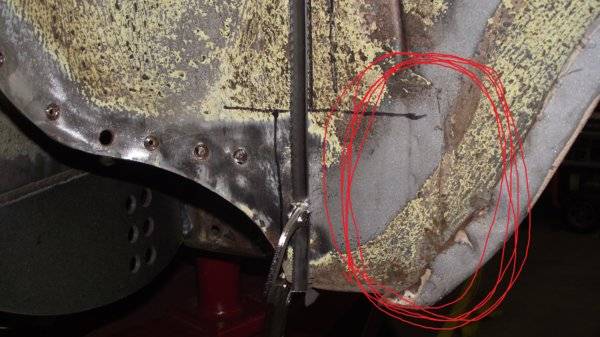

hey guys take a look at the photo, should this tab on the inner wheel house be on the inside of the outer wheelhouse or the outside like it is in the photo?? ( 5” inch overlap at the bottom of the middle seam)



[Cranky]

Looks right to me....



[gkent]

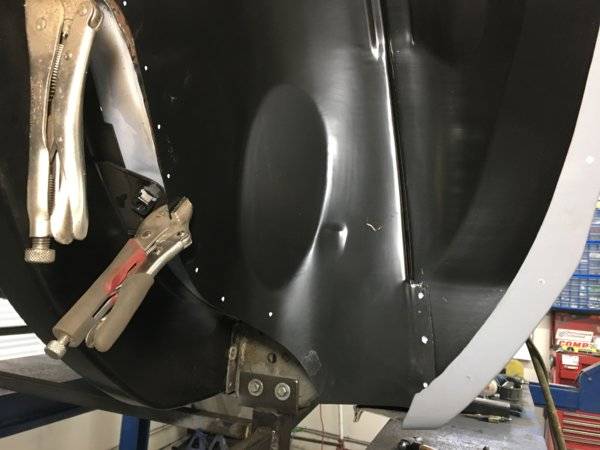

here you can clearly see the inner overlaps the outer



[Twalker]

Awesome, thanks for the picture!

The other thing I think is strange is how the seam between the inner and outer leans in on the top. I never noticed it before but it does seem it’s the way it’s supposed to be.

Anyone have any photos of inside their wheel houses?



[gkent]

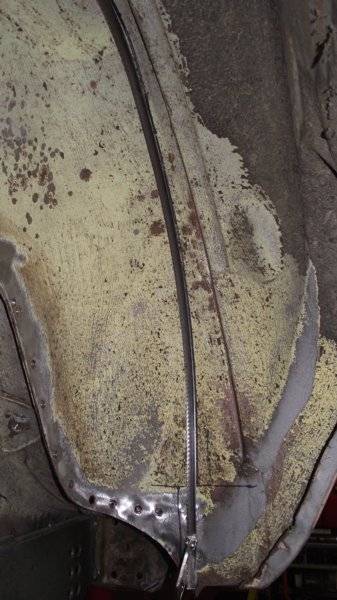

They absolutely lean in. If you noticed in my photo there's a bandsaw blade clamped there. That's to give me a straight "level" line around the whole tub to cut for mini tubs. A lot of guys will cut following the seam and then when they make the filler pieces they have to do it in multiple sections because it ends up in a compound shape. Mine is just a dead straight strip and fits perfect.

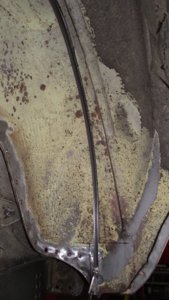

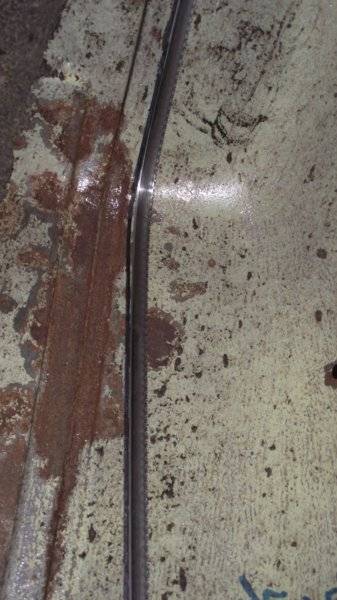

You can see the "lean" here ... that sawblade is dead nuts vertical !!



[Twalker]

They absolutely lean in. If you noticed in my photo there's a bandsaw blade clamped there. That's to give me a straight "level" line around the whole tub to cut for mini tubs. A lot of guys will cut following the seam and then when they make the filler pieces they have to do it in multiple sections because it ends up in a compound shape. Mine is just a dead straight strip and fits perfect.

You can see the "lean" here ... that sawblade is dead nuts vertical !!

View attachment 565169 View attachment 565171

Thanks man very helpful
