Air shield??

[hunt2elk]

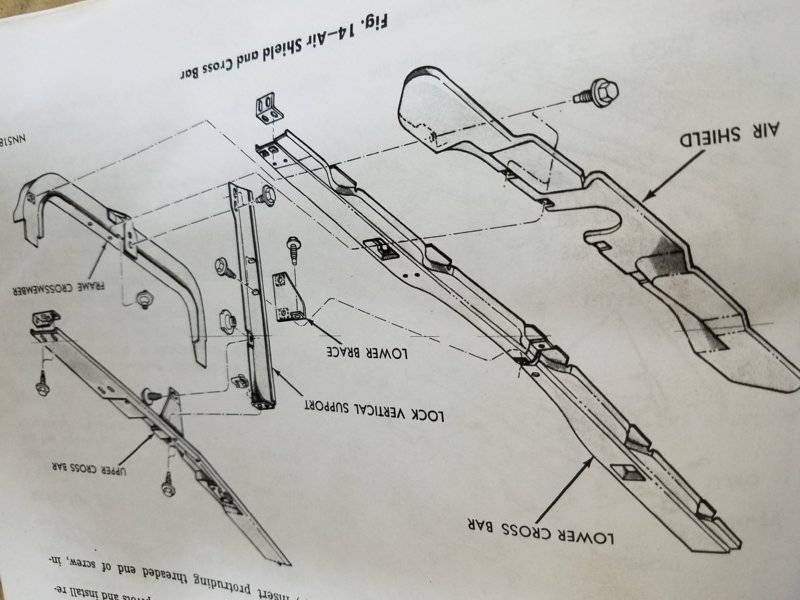

Anybody know where to buy this air shield that bolts to the lower radiator support? Ran across this pic in my 69 Dodge service manual. Checked my Plymouth manual and it also shows one. Neither my Bee or Road Runner has them.



[kiwigtx]

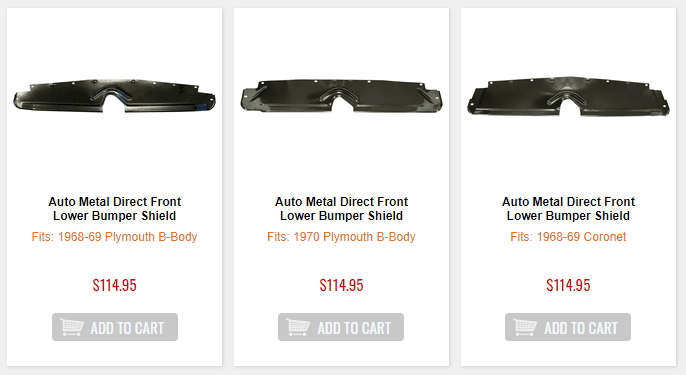

Have you looked at Mancini Racing...they have a discount right now I think...

https://www.manciniracing.com/frbushlo.html



[kiwigtx]

MOPAR MARCH MADNESS SALE


It’s March Madness at MANCINI RACING and we have some slam dunk savings on high-performance parts for your old-school or modern Mopar. Through the month of March, we’re taking 10% off your parts order*. Our March Madness sale and these awesome discounts will last a month, but don’t double dribble and get fouled while scoring on these sweet deals.


When ordering type in "MOPAR MADNESS" to Receive the discount on your order



Quantities are limited so call or go online today at MANCINIRACING.COM


*Discount does not apply to Engines, Blocks, Auto Metal Direct,

Accurate Exhaust, Edelbrock,TTI Exhaust, Doug's Headers, Mopar Collectibles

and items marked as On-Sale or Clearance items.

Sorry...AMD parts exempt from discount.



[hunt2elk]

Have you looked at Mancini Racing...they have a discount right now I think...

https://www.manciniracing.com/frbushlo.html


View attachment 917632

I have that shield. Looking for the one labeled air shield in my upside down pic.



[kiwigtx]

I have that shield. Looking for the one labeled air shield in my upside down pic.

Is it not the same piece? I followed the bolt hole dotted lines....looks to be what I posted.
Can you show pics of the area on the actual car?

Different name to what is advertised, but looks like the same thing.



[dadsbee]

I've always called it a rock guard.. but it's the only one that goes down there!



[kiwigtx]

I've always called it a rock guard.. but it's the only one that goes down there!

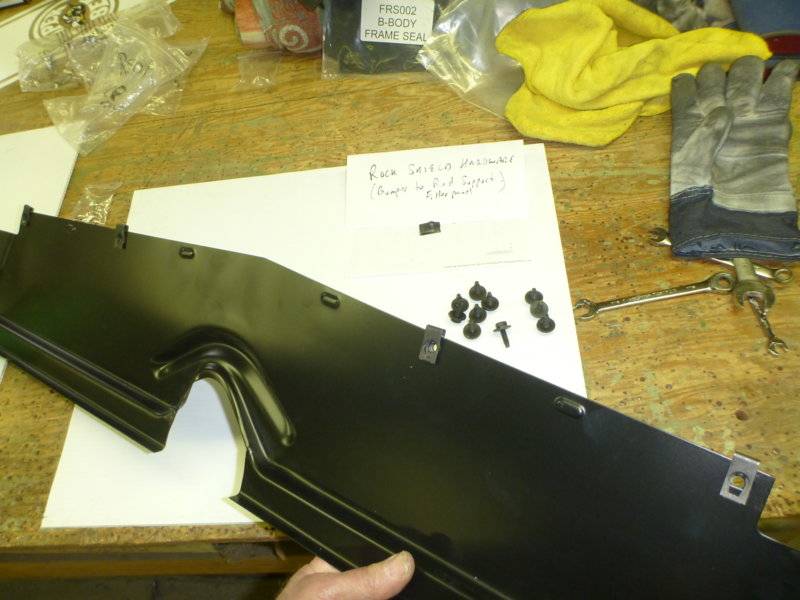

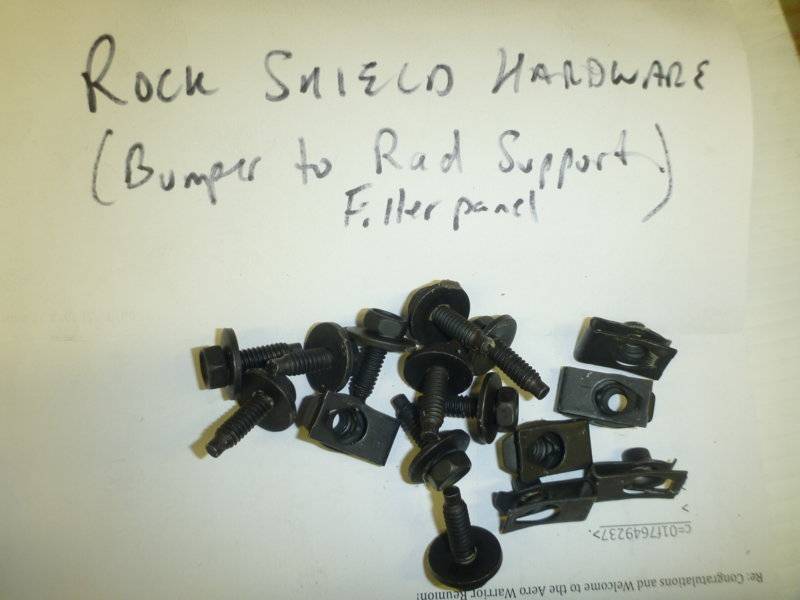

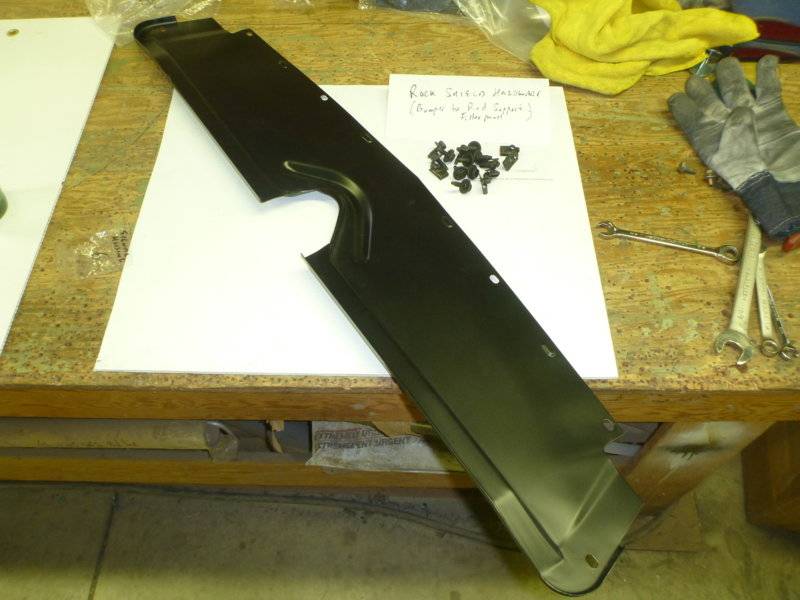

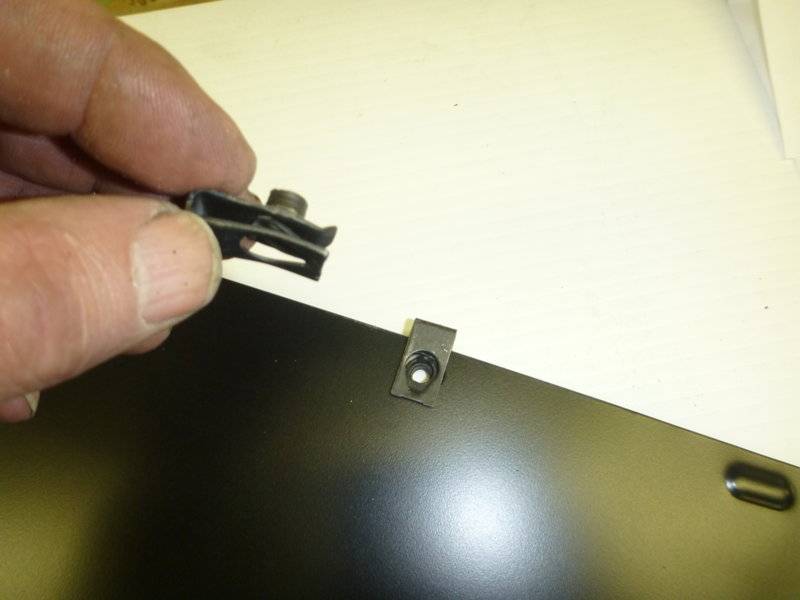

View attachment 917670 View attachment 917671 View attachment 917672 View attachment 917673 View attachment 917674

Thanks Wayne.....for a minute there I thought I was going crackers.



[chtampa]

I believe the hardware in the picture is incorrect, if it matters. Supposed to be nuts with captured washers, no clips.



[hunt2elk]

I've always called it a rock guard.. but it's the only one that goes down there!
View attachment 917670 View attachment 917671 View attachment 917672 View attachment 917673 View attachment 917674

Yes, that is what I have and always called it a gravel gaurd. It looks in the shop manual that there is supposed to be another shield that bolts into the 2 captive nuts, one on each lower corner of the of the radiator support. maybe not though, because I don't ever remember seeing one.



[hunt2elk]

I believe the hardware in the picture is incorrect, if it matters. Supposed to be nuts with captured washers, no clips.

I believe you are correct, as I have the nuts with spin washers.



[dadsbee]

I see what you're saying Joel.. looks like it bolts to the face of the rad support. Never seen one of those in my life.. will check my parts manual.

As for the hardware shown in my pictures, can't see reaching in through the bumper cut outs to install a captive washer nut. Doesn't make sense on the line.. but a lot of stuff Mopar doesn't make sense.. lol



[dsd1967]

The original fsm schematic looks like my 67 Belvedere. Mine bolts directly to the lower radiator support and not the bumper brackets.



[davek]

View attachment 917633

View attachment 917634

View attachment 917635

View attachment 917636

MOPAR MARCH MADNESS SALE


It’s March Madness at MANCINI RACING and we have some slam dunk savings on high-performance parts for your old-school or modern Mopar. Through the month of March, we’re taking 10% off your parts order*. Our March Madness sale and these awesome discounts will last a month, but don’t double dribble and get fouled while scoring on these sweet deals.


When ordering type in "MOPAR MADNESS" to Receive the discount on your order



Quantities are limited so call or go online today at MANCINIRACING.COM


*Discount does not apply to Engines, Blocks, Auto Metal Direct,

Accurate Exhaust, Edelbrock,TTI Exhaust, Doug's Headers, Mopar Collectibles

and items marked as On-Sale or Clearance items.



View attachment 917637

Sorry...AMD parts exempt from discount.

SO what the hell is on sale t shirts?



[hunt2elk]

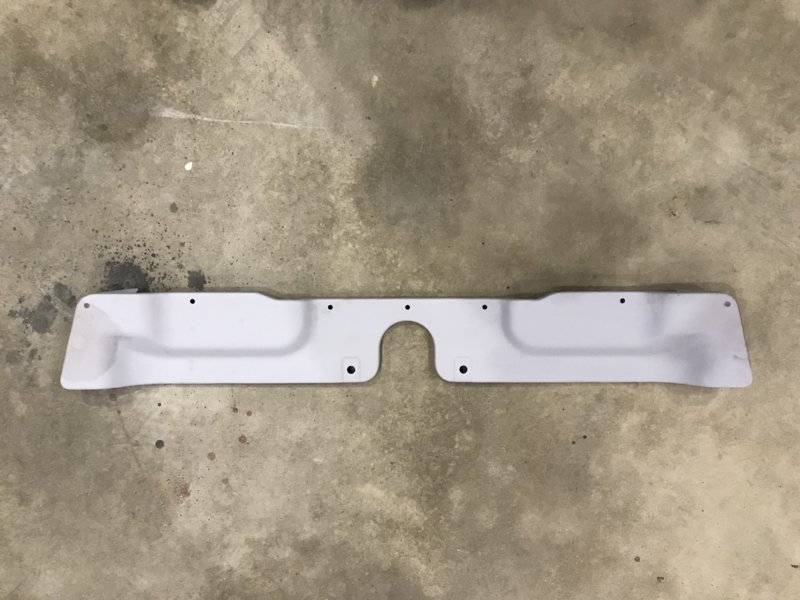

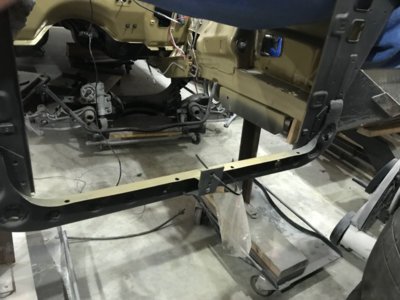

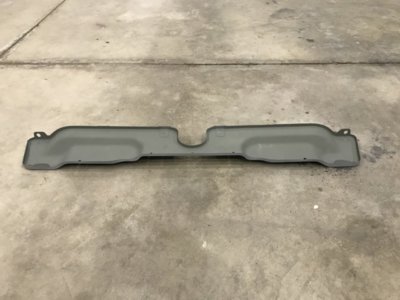

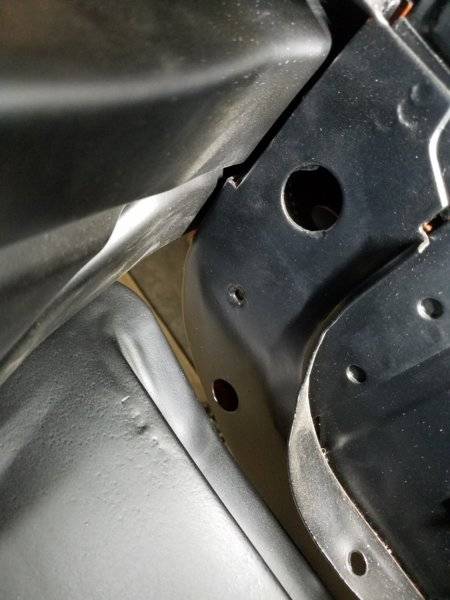

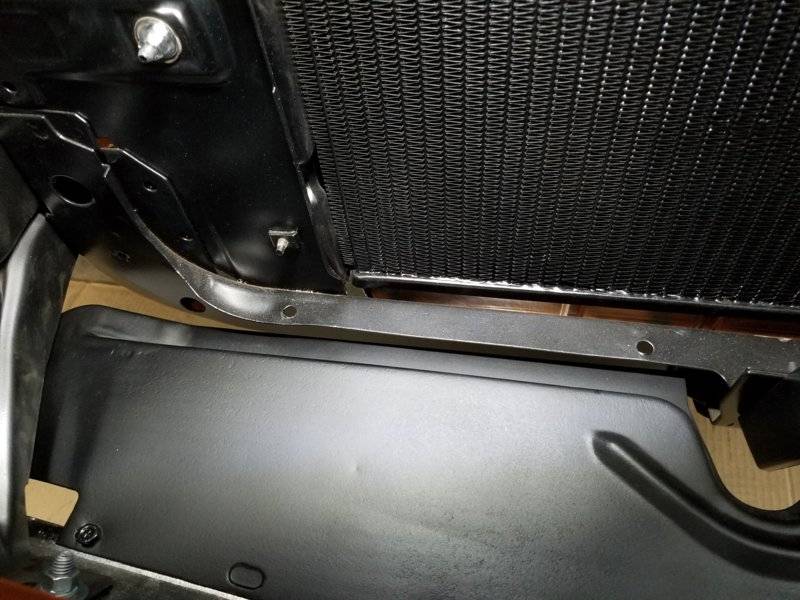

Here is where I am looking. On the front lip of the lower radiator support there are 4 holes, and then the nut welded inside each lower corner of the support. I just thought something should go there.



[kiwigtx]

SO what the hell is on sale t shirts?

I don't really know...I just get the emails every month.....seldom buy from them now.



[kiwigtx]

Here is where I am looking. On the front lip of the lower radiator support there are 4 holes, and then the nut welded inside each lower corner of the support. I just thought something should go there.

View attachment 917691 View attachment 917692

I think that is so you can make your own holes to suit the car....not all cars would line up....that's my guess.

I nearly bought the same thing for my GTX ...and then it sold, so I didn't bother.



[kiwigtx]

Going by Wayne's picture....holes and fixing onto the lower radiator lip may not be necessary....



[hunt2elk]

The original fsm schematic looks like my 67 Belvedere. Mine bolts directly to the lower radiator support and not the bumper brackets.

These are the books I have, both showing the same pic for B-bodies.



[dadsbee]

I'll go look in my parts book when the wife dismisses me from supper... lol



[dsd1967]

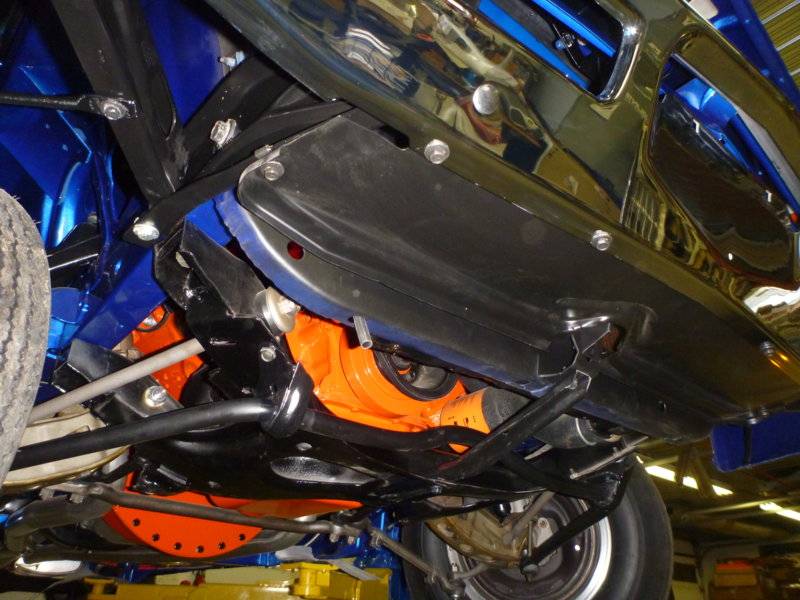

Here is my 67 Belvedere rock shield. It bolts onto the lower core support at the weld nuts on the outer edges and uses j nuts at the center
