Help with ingnition

[John Molands]

Hi!

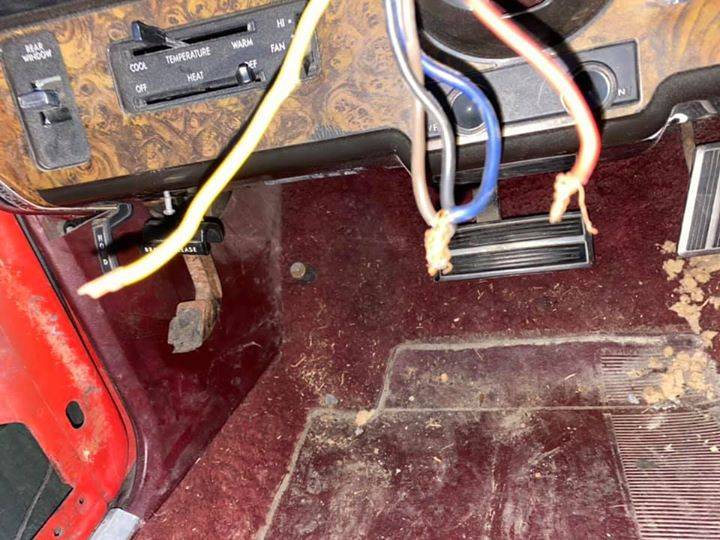

I just bought a 1975 Charger SE but the key was lost and they had cut som wires hanging out of the steering column. As you see in the picture. The colors are Red, yellow, brown, black and blue. Does anyone have a tip on how to hotwire this car this is how it was when I bought I do not want to try anything until I know it is right.
Thanx in advance

And by the way Sorry for the bad English. I am a Norwegian :-D



[66Satellite47]

John Welcome from Minnesota, we have many, many Norwegian's here. Your English is just fine. I'll look for my old factory service manual (FSM) & see if can get the wiring diagram.



[ruffcut]

Hi from Pennsylvania! Your grammar is very good. Wishing you good luck with your project! Ruffcut



[Don Frelier]

Here are the schematics you need:
http://www.mymopar.com/downloads/1975/75ChargerSEA.JPG
http://www.mymopar.com/downloads/1975/75ChargerSEB.JPG

The Wires you see:
Red = Battery
Yel = Starter relay
Brn = Coil and field and load relay
Blk = Fuse panel power
Blu = Electronic Ignition and Ballast resistor

Be careful with this...



[John Molands]

Here are the schematics you need:
http://www.mymopar.com/downloads/1975/75ChargerSEA.JPG
http://www.mymopar.com/downloads/1975/75ChargerSEB.JPG

The Wires you see:
Red = Battery
Yel = Starter relay
Brn = Coil and field and load relay
Blk = Fuse panel power
Blu = Electronic Ignition and Ballast resistor

Be careful with this...

In other words I can connect the brown, black and blue cables together. Then connect the red wire to them to set ignition on, then touch them with the yellow wire and the starter should kick in?



[66Satellite47]

Another option is to make your own switch panel with toggle switches and a push button for starter engagement.



[John Molands]

But can I just put them together like I suggested, just to se if I get any reaction?



[R/T Boy 67]

Yes. That is what the previous owner would have done.



[John Molands]

Ok I tried this but this is what happens, when I connect the red wire you hear a little "click" I guess that is a relay kickin in, then when I connect the yellow wire the fasten seatbelt sign/light turns on and you hear a somewhat like a buzzing sound but that is it. Any suggestions?



[Gold Rush]

I thought the Starter Interlock system was a one year only mistake ('74) but looking at the diagram Don posted I see your '75 has it also. Print out both pages and tape them together into on full schematic diagram. Makes following things much easier. If the interlock is still functional you can press the momentary bypass button then try your "hot wire" again.



[John Molands]

Where is IT located?



[Gold Rush]

I would expect it is mounted on the passenger side of the engine firewall just like he '74 is. Should be just about the heater and a/c hoses.

If you have a FSM the information is in there. I'd suggest you get your hands on one John. Even one of the downloadable versions is better than none at all...


Here's what they look like: https://www.ebay.com/itm/NOS-MOPAR-1975-SEAT-BELT-INTERLOCK-OVERRIDE-SWITCH-/233143036515

This might be an interesting read for you also: https://www.allpar.com/forums/threads/seat-belt-starter-circuit-74-charger-se-brougham.179877/



[John Molands]

Ok so i guess I must turn the ignition on befare I press the button. If I find it?



[Gold Rush]

Ok so i guess I must turn the ignition on befare I press the button. If I find it?

I believe you press and release the red button then turn the ignition. It you case "Hot Wire".. My '74 SE interlock system has been defeated... Watch the video in that second link.



[John Molands]

I believe you press and release the red button then turn the ignition. It you case "Hot Wire".. My '74 SE interlock system has been defeated... Watch the video in that second link.

How did you defeat it?



[Gold Rush]

How did you defeat it?

It came that way when I bought the car. I looked at the mod but can't really remember what was done.



[John Molands]

Maybe I can bypass it with joining the two yello wires?



[John Molands]

At least I found the switch, sinne it’s 2.am hete I will let the neighbours sleep and tru to start it later



[Gold Rush]

At least I found the switch, sinne it’s 2.am hete I will let the neighbours sleep and tru to start it later

I looked through all my files and can't find a thing on the bypass so did a little searching online. Found this. It's more than you might want to do but the simple mod is there. It's just like you were thinking...

https://wichargerguy.proboards.com/thread/2702/starter-interlock-delete



[John Molands]

Thank you so much for all your help, she finally starts and runs but she is not running smooth on idle yet. she stops.
But I guess That may be som adjustments og vacuume issues
