Wiper Motor Wiring

[Beavis]

Question: what is the wiring config on my 69 A12 wiper motor ? i have 4 wires Blue, Red, Brown & Green.

i know the blue get constant when the key is on but not sure what the other 3 are configured to make it work properly. the switch just has 2 positions besides off



[vance.dykes]

MyMopar - Mopar Forums & Information - Service Manuals look hear.



[Beavis]

its a 2 speed wiper motor (2983116) with 4 wires. the manual doesnt tell you what wires deliver 12v to the motor for each speed. i dont think its 1 wire per speed with 4 wires going to the motor



[vance.dykes]

the color code in the diagram should show witch wire goes where. in the manual for testing should help show witch wire dose what.



[gkent]

The manual will show which wire goes into which socket in the 4 pin connector. Also, on that motor the speed is controlled by the ballast resistor on the motor. It doesn't matter if you get those two crossed.



[69Bee]

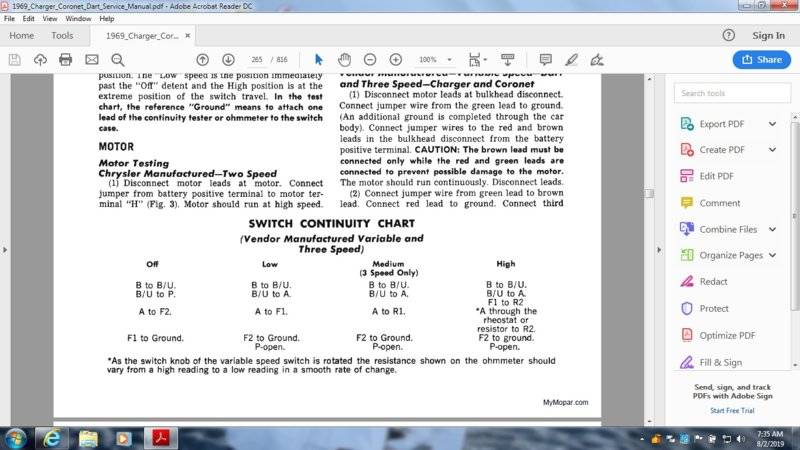

Test Procedure Page 1:

Test Procedure Page 2:

Engine Wiring Diagram for Wiper Motor:

Insturment Panel Wiring for Coronet:

Download the manual referenced above (FREE), and see it better...
