WTB Aluminum center section

[precisionweldin]

Looking for aluminum 8.75” housing just giving it a shot



[BeepBeepRR]

Why would you want one? Seems like the weakest thing you can put under power.



[Charlie Brown]

Looking for aluminum 8.75” housing just giving it a shot

See attached link - not Aluminum, but close. Note price is in C$ - subtract 30% for US$

Mopar 8 3/4 rear differential Magnesium Rare Mickey Thompson | Transmission & Drivetrain | Winnipeg | Kijiji

Extremely rare Mopar 8 3/4 rear differential center section magnesium very rare custom built from Mickey Thompson himself never find another one can make you whatever ratio and posi of your desire , it was built for reenforcement for Dragsters in the day ,who piece, vintage, collectable, make...

www.kijiji.ca



[6PKRTSE]

That is where you want the weight anyway is over/near the rear.



[Lefty71]

See attached link - not Aluminum, but close. Note price is in C$ - subtract 30% for US$

Im not too sure that piece belongs on a car.....maybe not the museum either, but if it were mine, I think it is best off "retired" to prevent potential damage. Coolness factor of "10", maybe even "11" lol.



[GTX JOHN]

I run them and have never had an issue with them.

I have a spare Mopar performance in the trailer with very
few runs that has been there for years. 4:56 Spool.

$2,450.00 Ready to run and that is a Bargain!



[j-c-c-62]

I have four, one is brand new, still in the box., I listed it here? a few months back, too pricey for most it seems.
Mopar stated it was 10% stronger than the typical 742 carrier.



[hdwrench]

I have four, one is brand new, still in the box., I listed it here? a few months back, too pricey for most it seems.
Mopar stated it was 10% stronger than the typical 742 carrier.

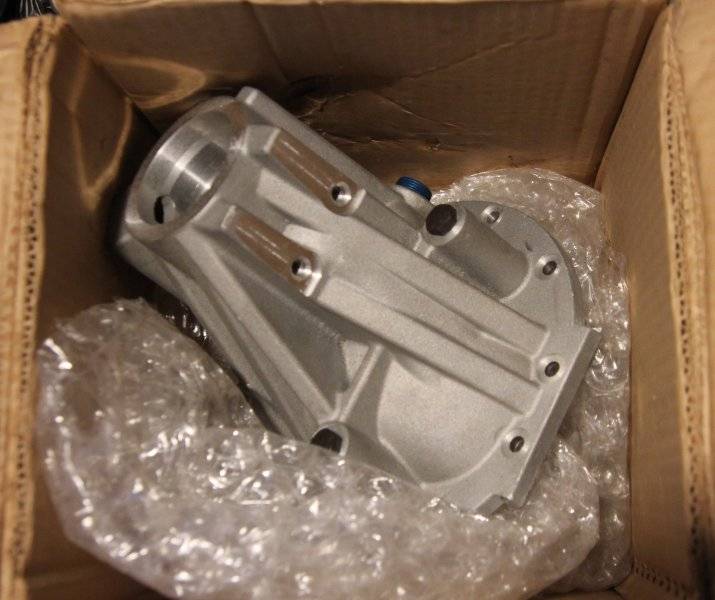

View attachment 1660922

View attachment 1660923

sure is pretty!



[Badvert65]

Just curious, how much does one of those aluminum center sections weigh?



[GTX JOHN]

I have four, one is brand new, still in the box., I listed it here? a few months back, too pricey for most it seems.
Mopar stated it was 10% stronger than the typical 742 carrier.

View attachment 1660922

View attachment 1660923

How much was it listed for sale?
I might be interested.



[j-c-c-62]

Just curious, how much does one of those aluminum center sections weigh?

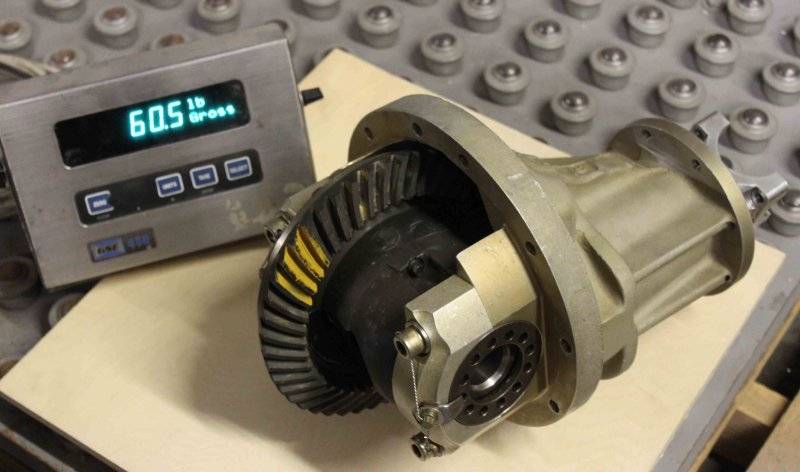

Here is an out of production long ago Mark Williams 742 Alum carrier, it has rebuilt I believe 3.55 with an Auburn and a billet 1350 CM yoke, weight as pictured.
When I discovered there were a few Alum 8.75" aftermarket carriers around late 80's, I looked for years, and found this one in a for sale dragster that I had to buy to obtain it in NJ.
Early nineties I pleaded with Mopar to offer/build an Alum carrier, they blew me off and said there was no market. Decade later it was in their catalog



[j-c-c-62]

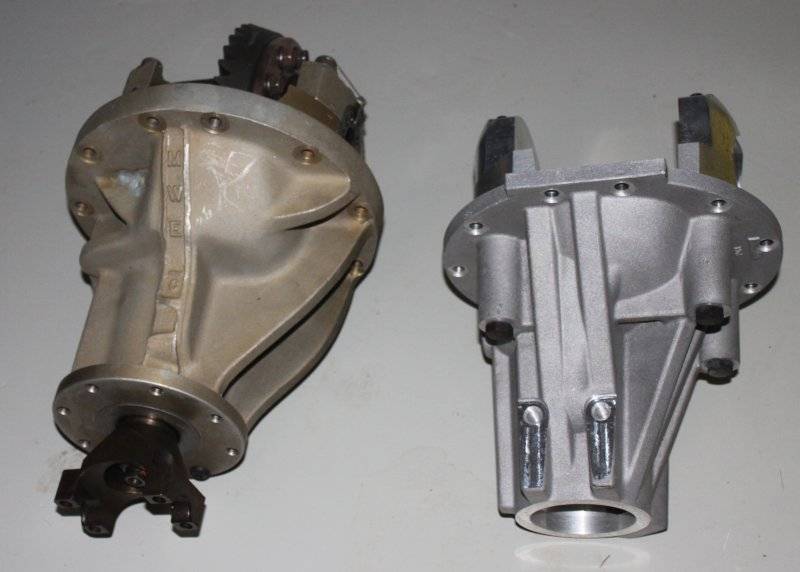

A side by side comparison, my others are installed.



[Badvert65]

Here is an out of production long ago Mark Williams 742 Alum carrier, it has I believe 3.55 with an Auburn and a billet 1350 CM yoke, weight as pictured.
When I discovered there were a few Alum 8.75" aftermarket carriers around late 80's, I looked for years, and found this one in a for sale dragster that I had to buy to obtain it in NJ.
Early nineties I pleaded with Mopar to offer/build an Alum carrier, they blew off and said there was no market. Decade later in was in their catalog

View attachment 1661143

Good to know. I weighed the center section of the unit I am running, 3.91, Sure-Grip, '489' housing and it came in at 73 pounds.



[GTX JOHN]

Mine is significantly lighter but it is a spool and some
other work!



[33 IMP]

Good to know. I weighed the center section of the unit I am running, 3.91, Sure-Grip, '489' housing and it came in at 73 pounds.

I just weighed my new 9" aluminum center. In the bottom half of the box it came in (whole box around 5 lbs) It weighed 61.6, with 4,10 gear and a steel spool. I'm kinda disappointed it's not lighter, but I guess it has to be heavier than I expected, to be strong enough.



[j-c-c-62]

BTW I would guess the MW Alum carrier is a few lbs heavier than the Mopar Alum carrier, for reference check out the difference between the two in the mounting flange thickness.
