1962 Fury push dash light shields ?

[rustytoolss]

Does anyone have pictures of the "Shield" s {Cardboard things used with the black felt material} around the push buttons for shifter and heat control buttons...They hlep contain the light for lumination of the buttons...In the parts p book they are call " shield" also noted " not serviced." Theres one for the shift button unit, and one for the heat control buttons.



[khryslerkid]

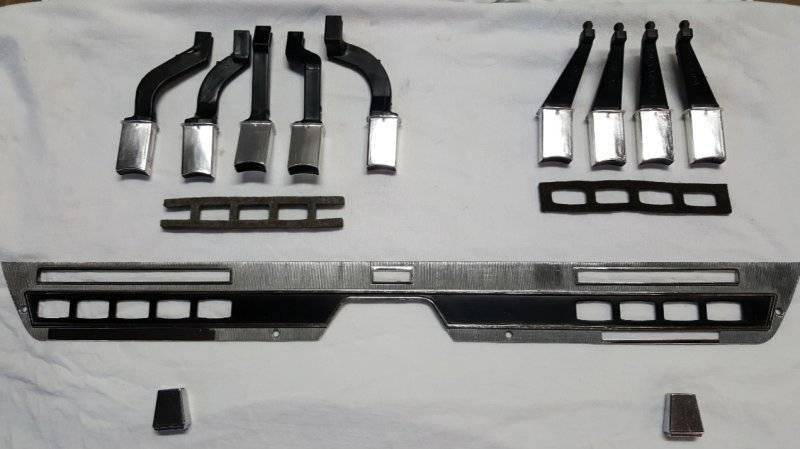

On the '62 Dodge they used felt. Reminds me of home weather strip that you might use around an outside door to seal it. Probably find it at your local builder's supply store. My guess it's 1/8" to 3/16" thick. No shields in the Dodge, they're not illuminated buttons like the Plymouth. The rectangle above the buttons are illuminated.



[rustytoolss]

On the '62 Dodge they used felt. Reminds me of home weather strip that you might use around an outside door to seal it. Probably find it at your local builder's supply store. My guess it's 1/8" to 3/16" thick. No shields in the Dodge, they're not illuminated buttons like the Plymouth. The rectangle above the buttons are illuminated.

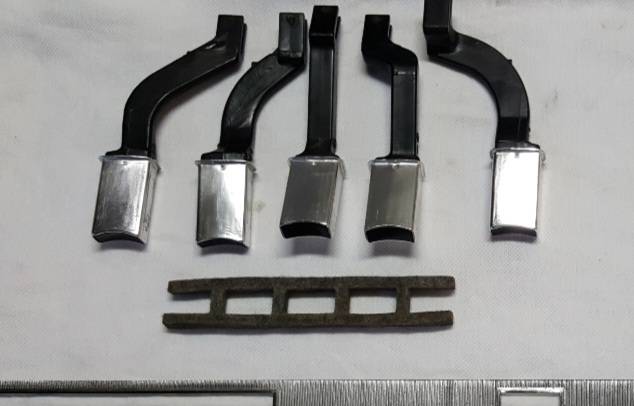

View attachment 1804894
View attachment 1804895

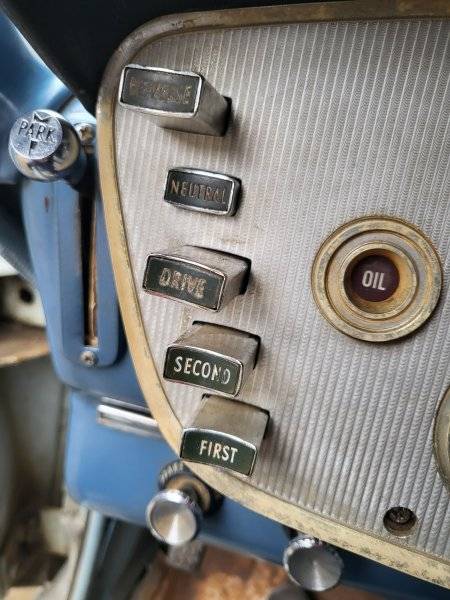

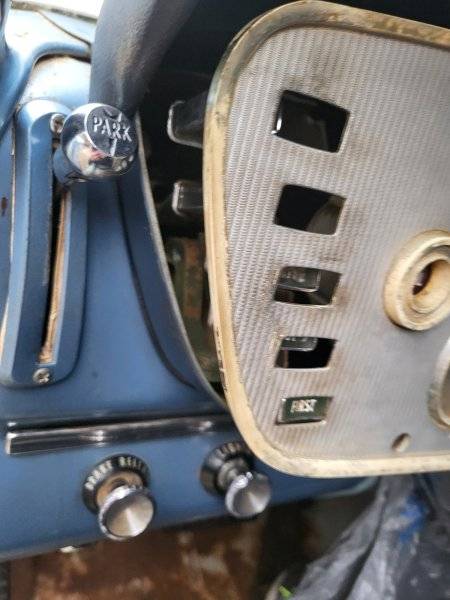

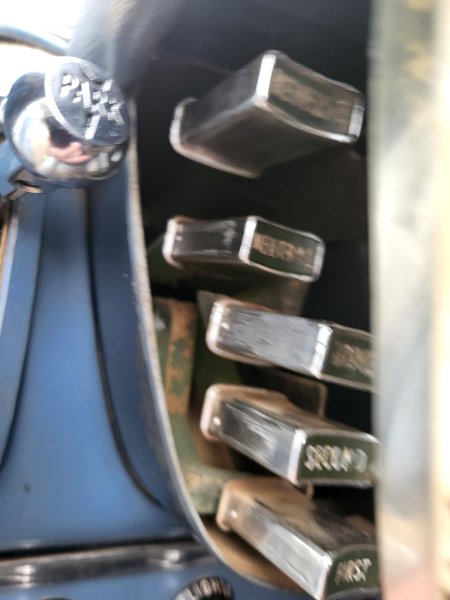

on the 62 plymouth there are these sheild things (like blinders) and the black felt material...The plastic on the shift buttons a green. My shields are missing.



[62plymw]

will send you one from my 62 savoy 4 door and 2 door tomorrow



[rustytoolss]

will send you one from my 62 savoy 4 door and 2 door tomorrow

Thanks, I hope you send photos of each...heater control & shifter



[62plymw]



[62plymw]

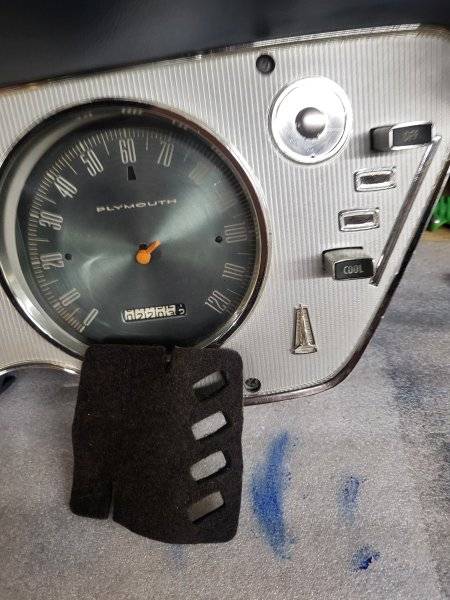

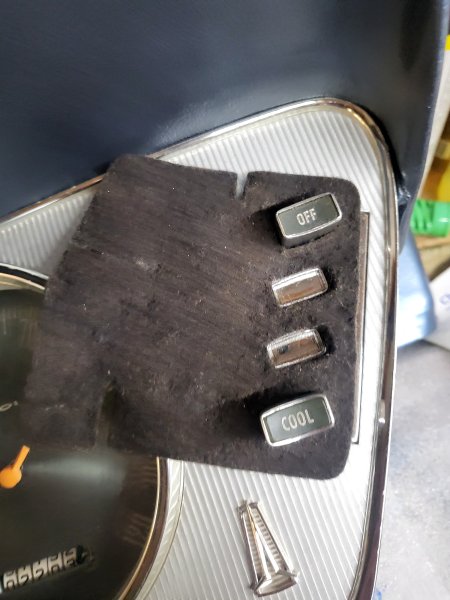

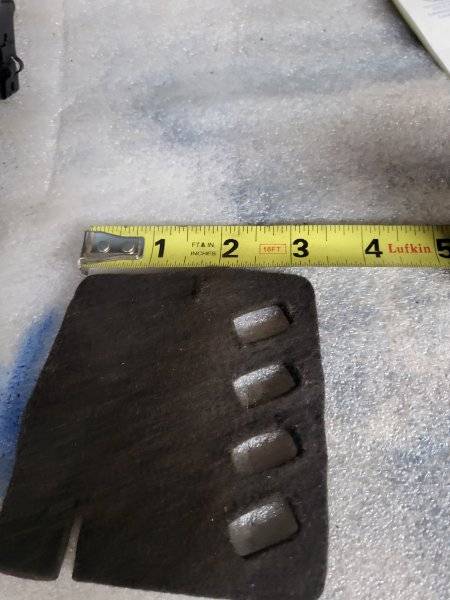

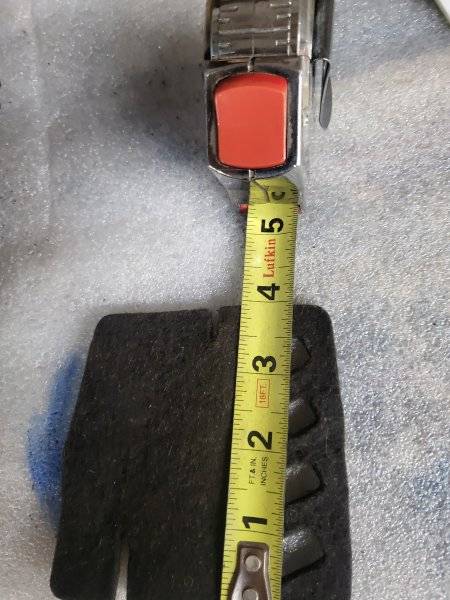

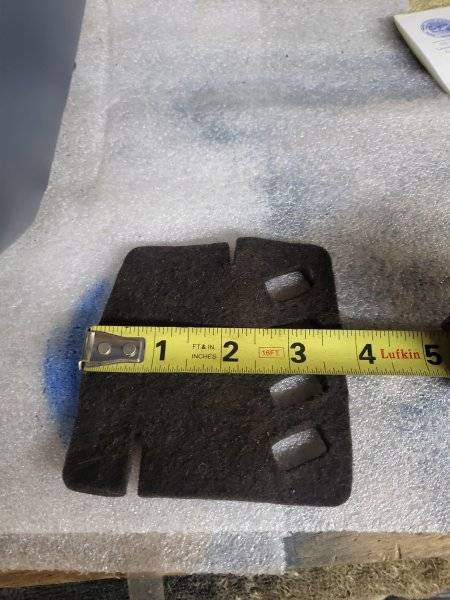

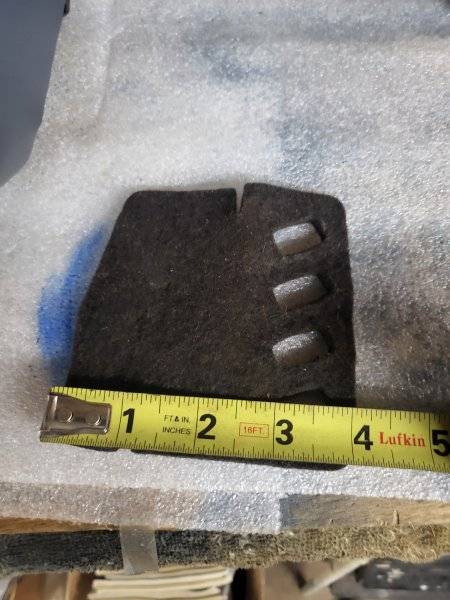

no felt or card board on 4 Dr savoy heater buttons or shifter buttons ----felt for heater buttons on 2 Dr savoy is a 3 speed on floor radio & heater



[rustytoolss]

no felt or card board on 4 Dr savoy heater buttons or shifter buttons ----felt for heater buttons on 2 Dr savoy is a 3 speed on floor radio & heater

Thanks for the photos



[62plymw]

radio heater delete
