1963 Plymouth 8 3/4 id

[44070dart]

Selling my '63 Fury .. a guy asked " Does it have the original 8-3/4 rear end with the >splined axle and nut on the outside ? <. What am I looking for to id. this. I know its an 8 3/4 but don't know what he is referring to by splined axle nut and how to tell ..they were used prior to '65 and I guess he wants to know if it's original...thanks.



[Darter6]

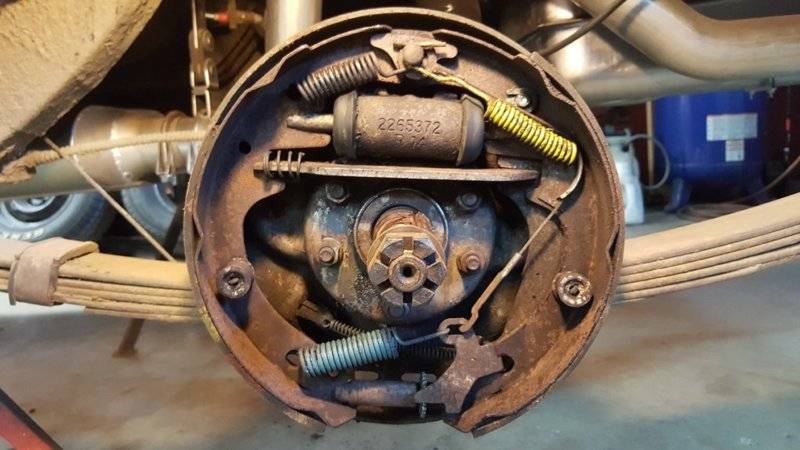

big nut in the center of the rear lug nuts.Hard to see but the only photo I got.



[44070dart]

OK I got it..didn't know what the hell he was referring to, thought 8 3/4's were all the same. thanks



[BeepBeepRR]

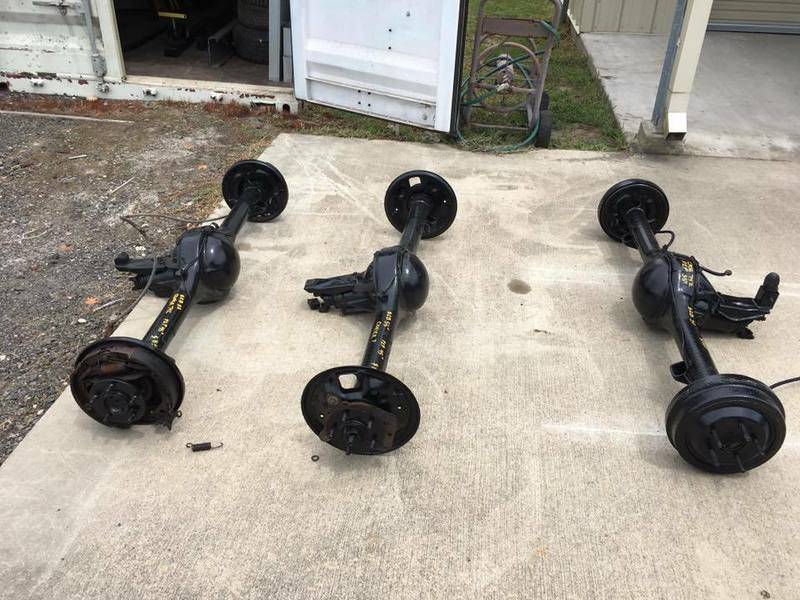

It would look like the rearend in the center of this picture.



[khryslerkid]

They are referred to as a taypered axle. The newer ones are flanged axels.



[Ron H]

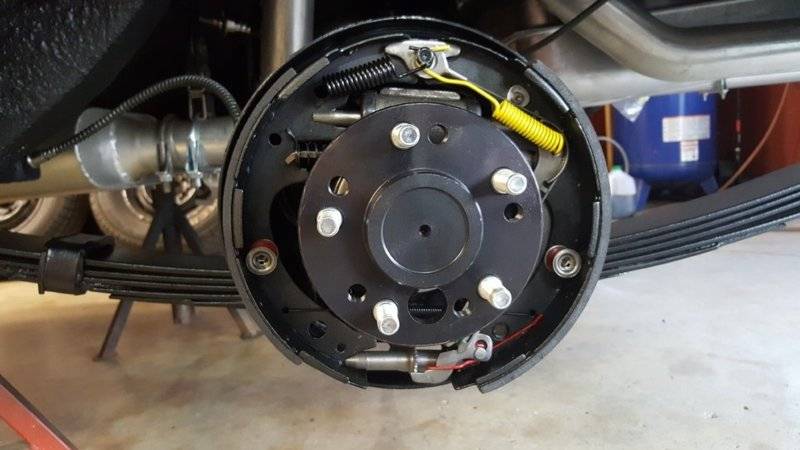

Correct - I switched out the original axles/housing on my '63 Fury with a '65 Coronet exact fit to drop the old tapered ones.



[44070dart]

Yeah I just popped off the center cap off my mag wheel and there is a bolt with a cotter pin .. didn't know earlier models were different. thanks
