1964 b-body sub-frame connectors

[451 demon]

my dad has a 1964 sport fury and no one has any listings for sub-frame connectors does any body know any one who makes them or do you have to make them your self. thanks



[ilm65]

Check Mancini Racing--their online store sells bolt-in and weld-in versions for early B-bodies.



[moparpoor]

What type are you looking for.Round tube,rectangular/square tube,thru the floor,or the cnc cut out that you weld to the floor.Let me know what your needs are I can help.



[451 demon]

square tube weld in not through the floor pan. I call mancini and they don't offer any older than 66. I didn't know if all b-bodies share the same floor panes if they do I can order through mopar i work at a dealership thanks



[fourgearsavoy]

I had to make my own from a set of Vega Comp-Engineering ones I picked up on the Summit return table.
Gus



[moparpoor]

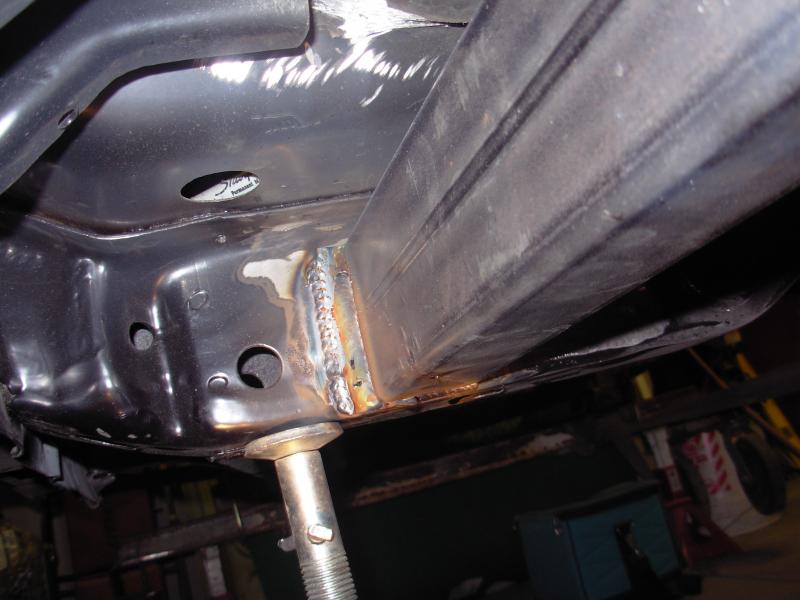

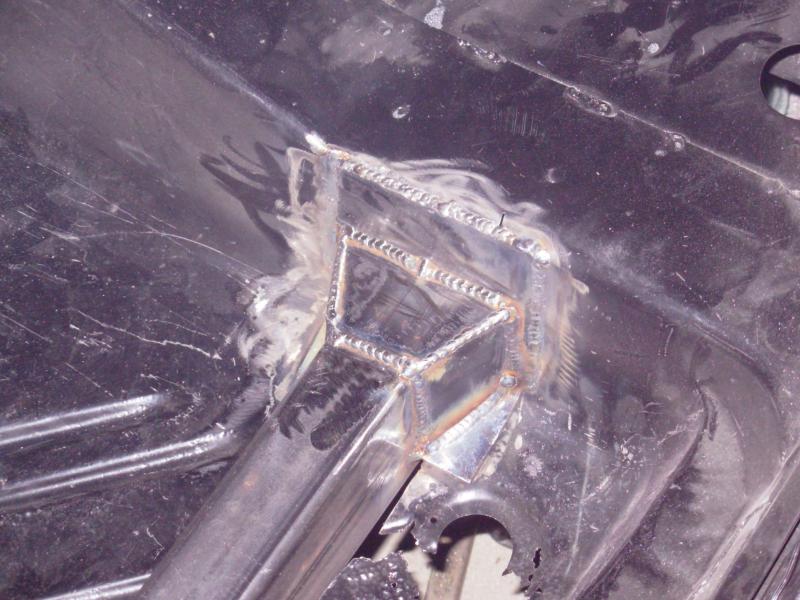

Here are some pics.The first pic is the basic idea of attaching to the torsion bar crossmember.The second pic is of thru the floor type connector and its attachment point to the rear frame rail.You don't have to get fancy,just simply plate it and attach.Hopefully this gives you an idea of how and were to attach.Sorry I can't find any under the floor subframe pics.I have a few discs to go thru,these were on the computer.



[Satellite65]

US Car Tool is finally producing laser cut frame connectors for our early B bodies.

https://store.uscartool.com/62-65-B-Body-Frame-Connectors_p_44.html



[Buckeye]

I put 2x3 .180 in my car through the floor (square tube). 2x2 would have been good as well.
