1964 Sport Fury 383 Oil Pan

[Desotojohn]

I need an oil pan and pickup for my 383 HP build. The original pan is pretty damaged. Looking at Milodon 31010, Mancini and others.

Any recommendations? I don't want to notch the K Member or have to pan hanging down below the K Member. Stock would be good, but finding one ...



[Bill Monk]

ma

I need an oil pan and pickup for my 383 HP build. The original pan is pretty damaged. Looking at Milodon 31010, Mancini and others.

Any recommendations? I don't want to notch the K Member or have to pan hanging down below the K Member. Stock would be good, but finding one ...

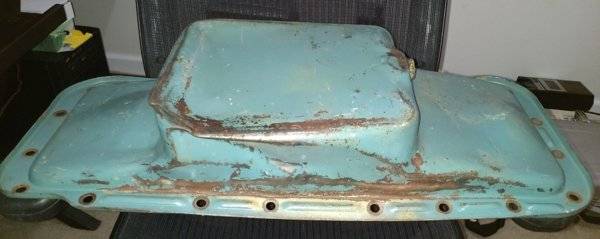

View attachment 557276

Summit has one that's reasonable.
https://www.summitracing.com/parts/sum-g3543/overview/make/dodge



[Steve009]

on my 64 sport fury I had to notch the k member with the milodon 31010.



[Bill Monk]

ma

Summit has one that's reasonable.
https://www.summitracing.com/parts/sum-g3543/overview/make/dodge

This one is a stock replacement



[khryslerkid]

Almost every aftermarket, center sump pan, you'll have to notch the K frame on the '62 - '65. Not that hard to do, even with the engine in the car.

http://www.forbbodiesonly.com/moparforum/threads/oil-pan-woes.96530/page-2



[Bill Monk]

Almost every aftermarket, center sump pan, you'll have to notch the K frame on the '62 - '65. Not that hard to do, even with the engine in the car.

http://www.forbbodiesonly.com/moparforum/threads/oil-pan-woes.96530/page-2

good info, I was not aware of that the the 62-65s.



[Bill Monk]

Listing doesn't say what year it's from, but you might take a look at this
https://www.ebay.com/itm/Chrysler-M...ash=item3afd153c05:g:rXUAAOSwyXNaEkYB&vxp=mtr



[VANDAN]

Hey Desotojohn, Welcome to the hunt ! I just went through any channel I could to locate a pan for my '63 build, and the only pan I found, that is currently available, is the Milodon 31010. It will fit the '62-'65 k-members with a BB, but for street use, it hangs 2-1/2" below the frame. I did purchase one, and about to start the mod on it to remove 1" to 1-1/2" in depth from the sump. This will leave about a 6 qt capacity for the oil. All other pans available have been discontinued, due to lack of need for them, according to the venders I spoke with. The pic of the pan is on a friends '65, and is from 440 source, 7 qt, which they NO LONGER OFFER ? It hangs down about 2" to give you an idea of what you will end up with, using a Milodon 31010. Good luck with your build, and drop a source for the pans if you happen to find any that will work on the '62-'65s.



[Desotojohn]

Thanks for all the suggestions. I called Moroso and they recommended their 20766 Oil pan and 24766 pickup. Seems like the front is too deep to clear the K Member.



[65satelliteman]

Hello---I have a perfect original 1962-1965 B-body Big Block oil pan, pickup, windage tray and a new gasket available. Please send me a private message by clicking on my user name and then the start a conversation option. Take Care and perhaps we'll be talking again soon.



[383man]

On my 63 Sport Fury with the 440 eng I use a Moroso 7 qt pan I bought from Mancini. It fits perfect and I did not touch the K-frame as I did not modify the K-frame any as this pan fit right in. And you can see it has plenty of road clearance and its never hit anything in the 12 years its been on the road. Ron



[383man]

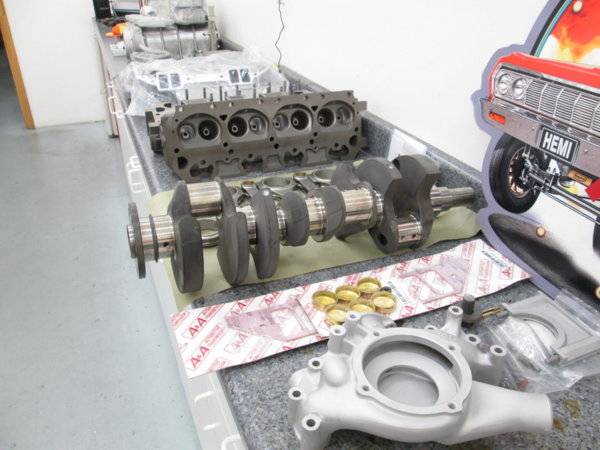

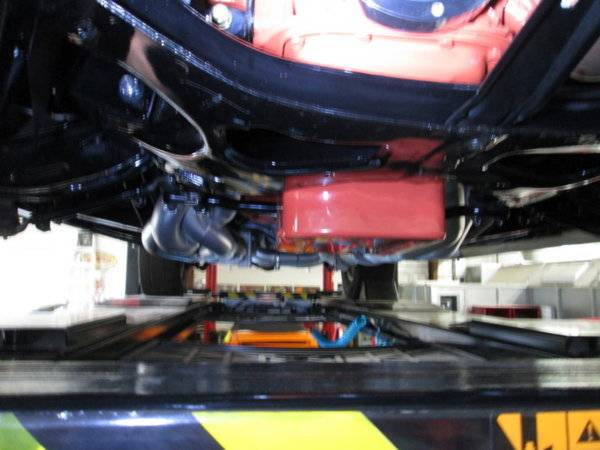

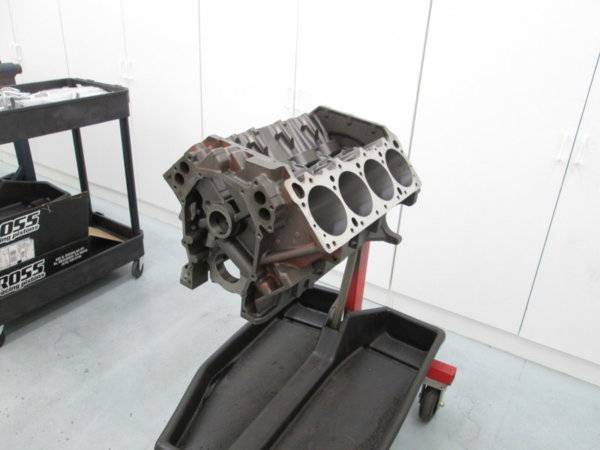

Hey Desotojohn, Welcome to the hunt ! I just went through any channel I could to locate a pan for my '63 build, and the only pan I found, that is currently available, is the Milodon 31010. It will fit the '62-'65 k-members with a BB, but for street use, it hangs 2-1/2" below the frame. I did purchase one, and about to start the mod on it to remove 1" to 1-1/2" in depth from the sump. This will leave about a 6 qt capacity for the oil. All other pans available have been discontinued, due to lack of need for them, according to the venders I spoke with. The pic of the pan is on a friends '65, and is from 440 source, 7 qt, which they NO LONGER OFFER ? It hangs down about 2" to give you an idea of what you will end up with, using a Milodon 31010. Good luck with your build, and drop a source for the pans if you happen to find any that will work on the '62-'65s.View attachment 557314 View attachment 557315 View attachment 557316

That's one super clean shop !! Ron



[Detroit Iron]

I may have a stock pan. Will check my inventory when I get home.



[1965ply]

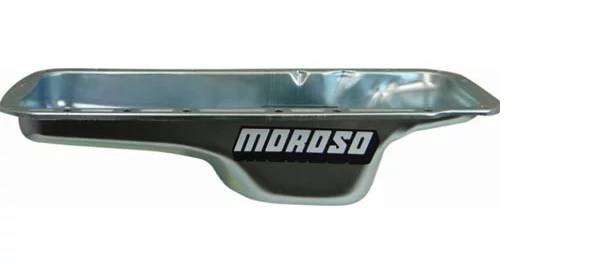

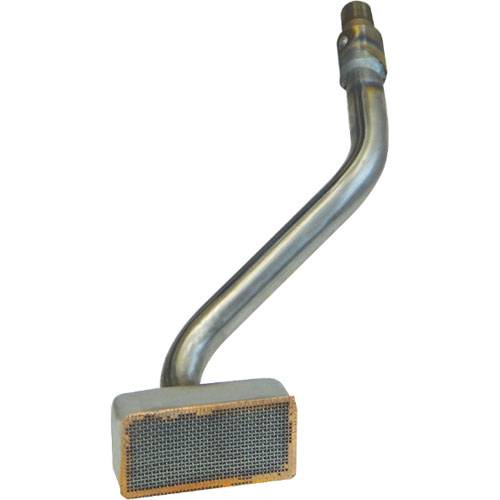

Thanks for all the suggestions. I called Moroso and they recommended their 20766 Oil pan and 24766 pickup. Seems like the front is too deep to clear the K Member.

View attachment 557360 View attachment 557361

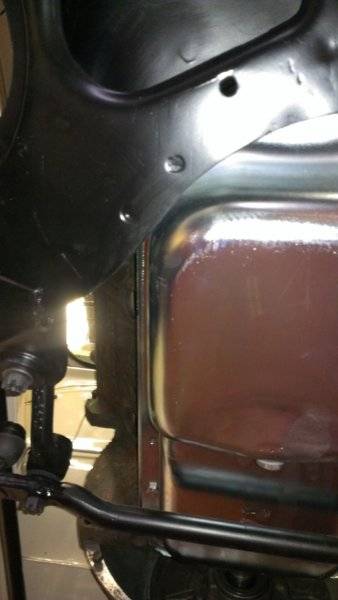

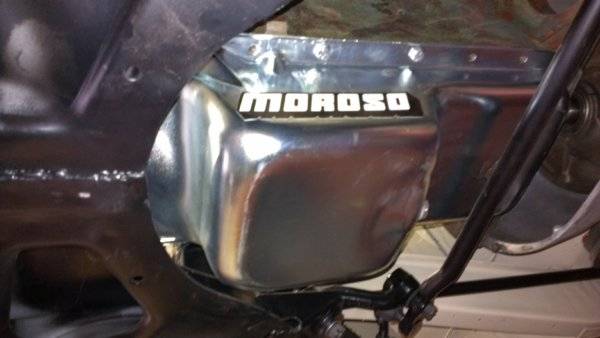

I have the moroso pan on my car 65 belvedere crossmember is not cut.. the pan fits perfect as you can see by pictures it's be
