1966 B body front sway bar mounting.

Encswsm

Well-Known Member
Local time
8:40 AM
Joined
Nov 28, 2023
Messages
280
Reaction score
253
Location
Mobile Alabama
Good morning all. A year ago when I started working on my 66 Charger I removed the sway bar to rebuild the front end. now a year later In trying to reinstall it and I cant remember for the life of me how the brackets affix to the K member to hold the sway bar up. Does anyone have any photos so I can put mine back together?
Thanks

There are 2 styles that you can have on a 66. The early style or the newer.

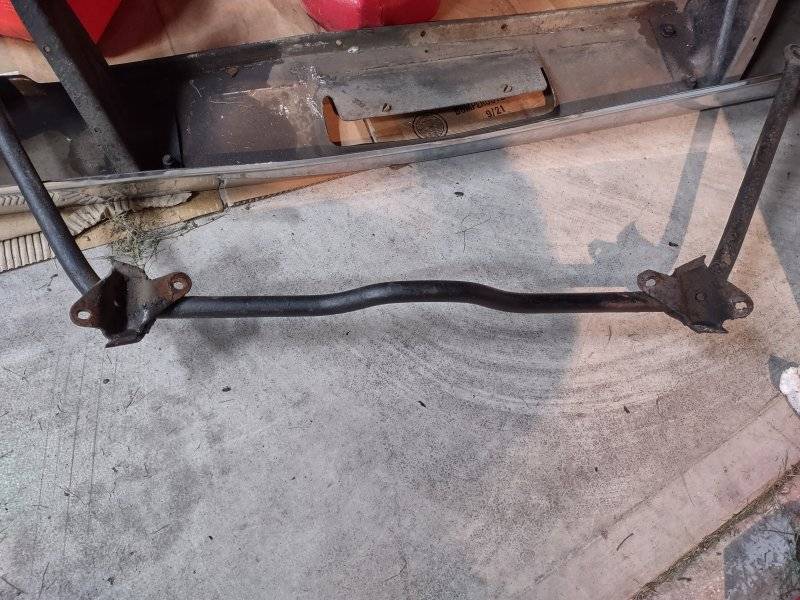

Here's mine off the car it's the newer style. Just takes 4 bolts to the k member.

Note the orientation if you're replacing the bushings.

There are 2 styles that you can have on a 66. The early style or the newer.
Here's mine off the car it's the newer style. Just takes 4 bolts to the k member.

Note the orientation if you're replacing the bushings.View attachment 1774445
Good morning Don. I think that's what I have there's a bent piece I see on yours here then there's like a 3" flat piece wit holes on either end then the Bushing clamp (U shaped) piece how do they stack together? Mine came with some rube Goldberg flat steel brackets for the LCA, I welded on Sway Bar mounting tabs from Bergman. now its time for reassembly. I need to remember to take more pictures before taking stuff apart.

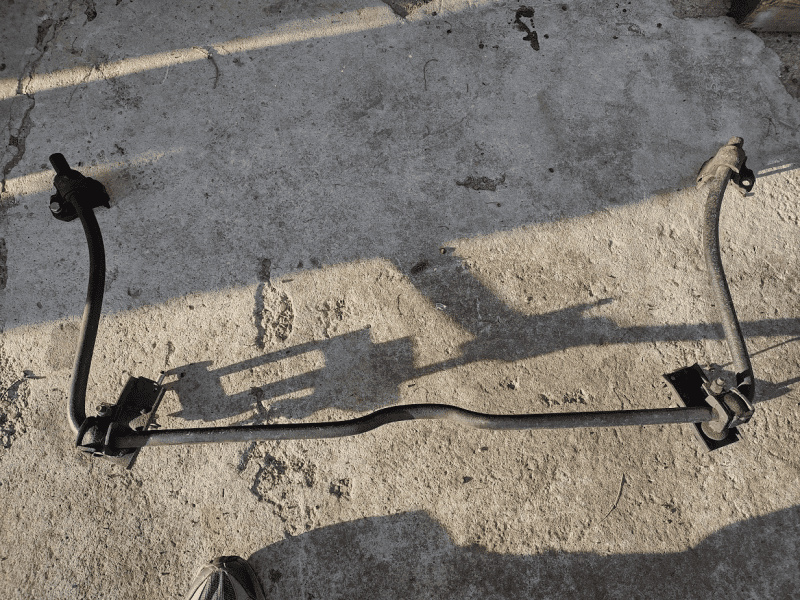

Does it look like this?
This is the old style totally different

No it looks like the first one. I just want to see how the K member clamps bolt onto the K member I have the bent pieces and the U clamps and also a piece of flat bar I'm just trying to figure out how they all fit together around the sway bar.
Thanks
