1966 Coronet Backspacing

[Gilach]

folks, anyone know what the backspacing is for this model or an accurate way on how to measure it. i had previously gleaned 4.5" from the forum in the past, but need to verify. my ET Street R tires sized P255/60-15 fit on one side but not the other, so i'm considering if i can get wheels with additional backspacing to help resolve the issue.

best, Paul.



[1967coronet440]

I had 26-11.5-15 on my 67 with 5.5" backspacing. No rubbing and didn't roll fender lips



[Gilach]

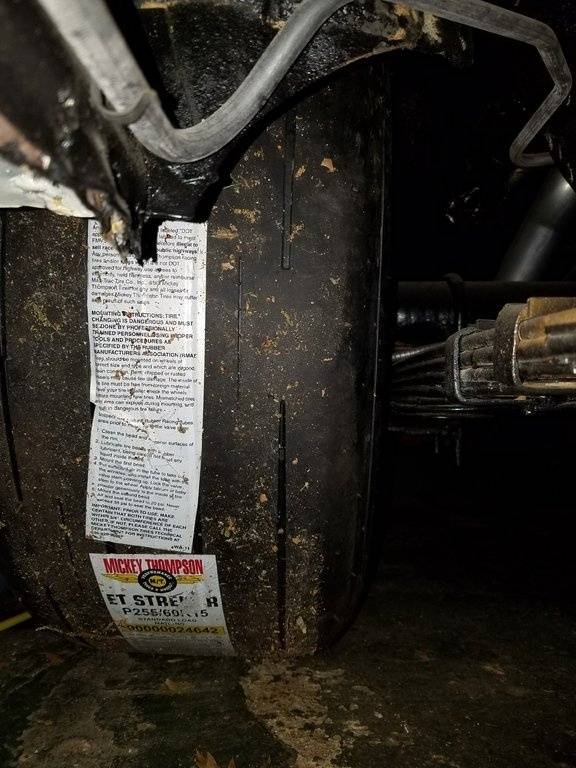

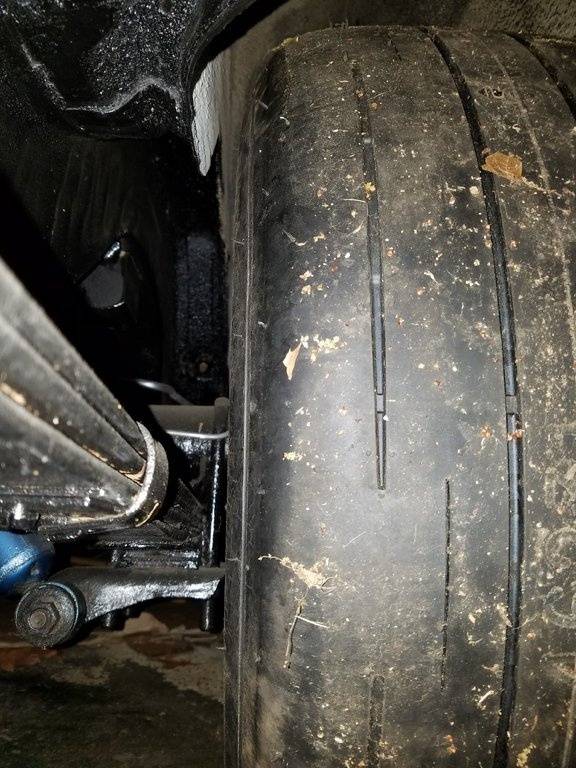

hmmm.....it really looks like i maybe able to increase my backspacing, see attached. i do think that '66 has less room than the 67's. i will need to take the wheel off and measure from the front of the drum faceplate up to the leaf springs and interior wheel well.



[1967coronet440]

hmmm.....it really looks like i maybe able to increase my backspacing, see attached. i do think that '66 has less room than the 67's. i will need to take the wheel off and measure from the front of the drum faceplate up to the leaf springs and interior wheel well.

View attachment 427581 View attachment 427582

Measure twice, order once.



[Mike67]

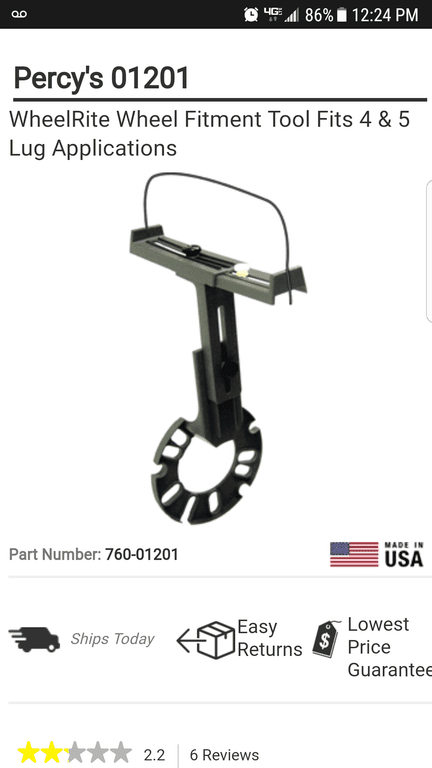

Its $80 @ Jegs but cheaper than buying 2 wheels or tires



[Gilach]

well for me, this will be 'measured twice, ordered twice' someone has to keep the economy going.



[Gilach]

thanks Mike67, that's a cool tool i think i will have to get that.



[Brewzer67]

I have a '67 Coronet and am using 8.5" CenterLine Autodrags with 4-7/8" backspacing and a 255/70/15" tire. It fits with no rubbing (just missing by a few sheets of paper in thickness ). I also use Poly bushings in the leaf springs so that helps as well.



[Fixable]

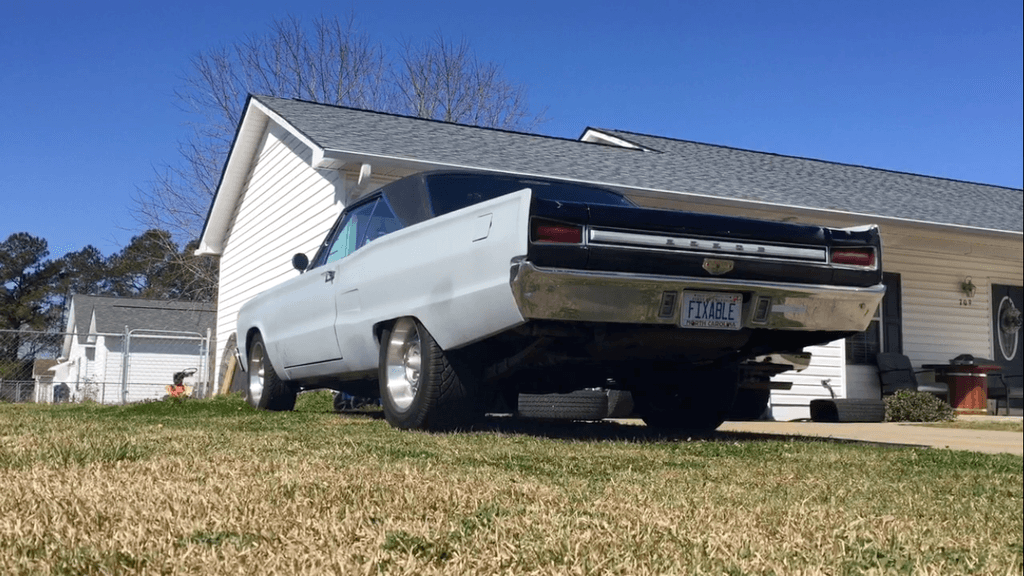

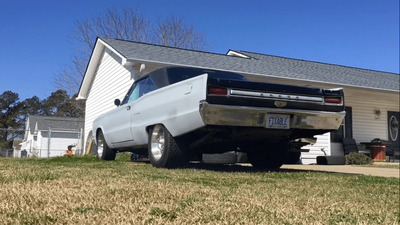

I'm running year one rallyes 17x8 with 4.25 of backspacing, 275/60 tire it's super tight to the fender but I have room on the inside.
