1967 dodge coronet ac duct work pictures

[snakeoil24]

Looking for help if anyone has pictures of how ac duct work looks for vent connections to air box including duct work



[Sam69sat]

I have a complete ac system off a 67 that i've pulled off recently. The ducts are still attached to the vents but the ducts aren't attached to the air box anymore. Do you need any pics of those things? All of them are out of the car.



[snakeoil24]

Yes please



[Sam69sat]

Alright, i'll try to get you some pics tomorrow.



[snakeoil24]

Appreciate very much



[Sam69sat]

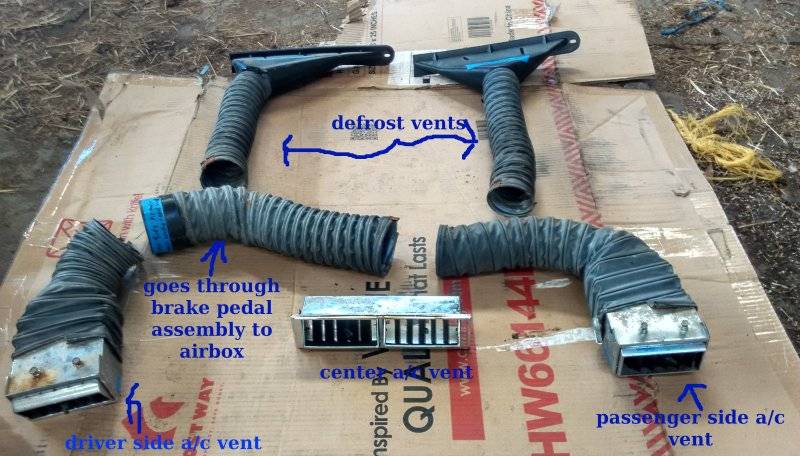

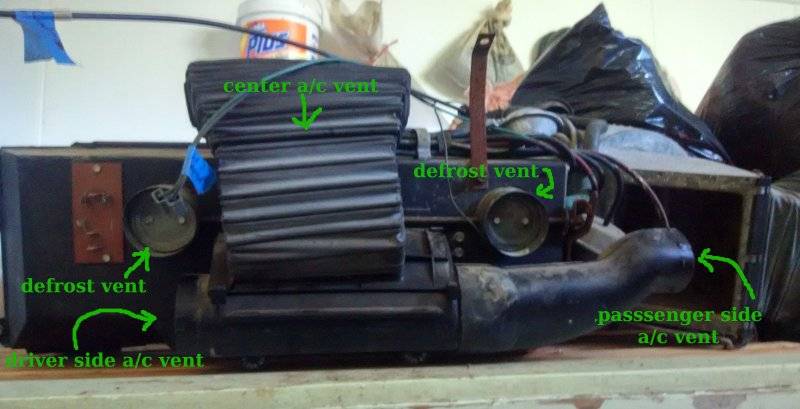

Hopefully these will help. The driver side a/c duct is two piece.



[snakeoil24]

Big help I’m missing cloth tubes for side vents, 1 side vent and plastic pipe for passenger side. So what I’m going to do is put new tubing and vents plus new center vent
