1967 dodge coronet dash board

[snakeoil24]

Looking for help where the supports mount inside dash any help appriciated



[Gus chiggins]

Looking for help where the supports mount inside dash any help appriciated

I have a 67 plymouth belvedere, and the only support rod that i know of for the dash is the one that is near the right side of the radio, and there is a stud where a nut is used to secure the dash to the cowl. Dunno if that helps.



[snakeoil24]

big help



[BearDodge67]

You have the pedal assemby in black, the radio support in red, then the general support in green



[snakeoil24]

Bear if you could please take a picture inside dash by brake assembly please



[BearDodge67]

These are all I have, dash is now together, do you need one of where pedal assembly bolts up?



[snakeoil24]

I can’t see where the rod goes by the brake support



[BearDodge67]

Hows this?



[snakeoil24]

That’s the brake push rod not the support



[BearDodge67]

Are you talking the support for the master cylinder or the pedal assembly itself?



[snakeoil24]

The support rod that bolts to the brake assembly



[BearDodge67]

This one?



[snakeoil24]

Yes perfect !!! Where does the other one go??



[BearDodge67]

that's the only one I know of... the rest bolts to the dash frame and body via the MC mounting bolts and the MC plate from what I remember.



[snakeoil24]

Theirs one on passenger side



[BearDodge67]

that is the passenger side, bolt is circled in red... drivers side mounts to support from dash frame



[snakeoil24]

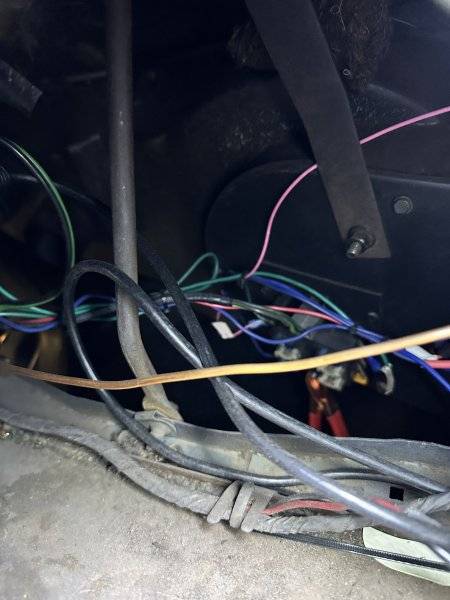

Thanks a lot I’ll have to figure out where the second support goes by the glove compartment which is bent 90 degrees on one end help was bmvery good your friend steve



[BearDodge67]

Good thing about not having a glove box..



[snakeoil24]

You have no idea how much I apprise this please if I can ever help
