1967 Plymouth 383 engine help needed

[1967 satellite]

I removed my alternator and the lower bracket that bolts to the bottom side of the engine and I am having trouble reassembling. Can anyone tell me if there is a spacer that goes on the lower bracket between the bracket and engine block and the approx thickness. Also if any one can send me a close up shot of the alternator I would also appreciate it. Many thanks in advance.



[copper67440]

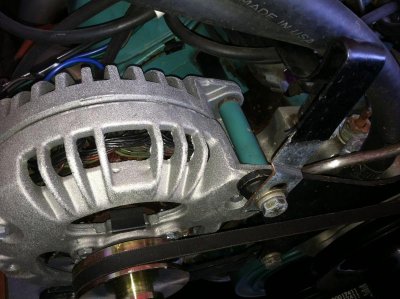

Hope this helps



[MoparBill]

If it's a non A/C car the lower spacer is 1 1/8" thick. Wheatfield? I'm not far from you- Holland NY.



[copper67440]

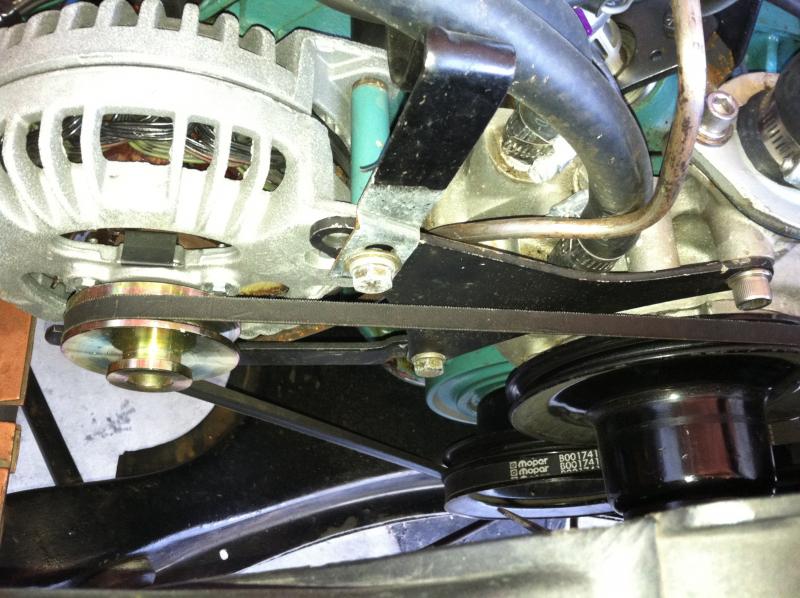

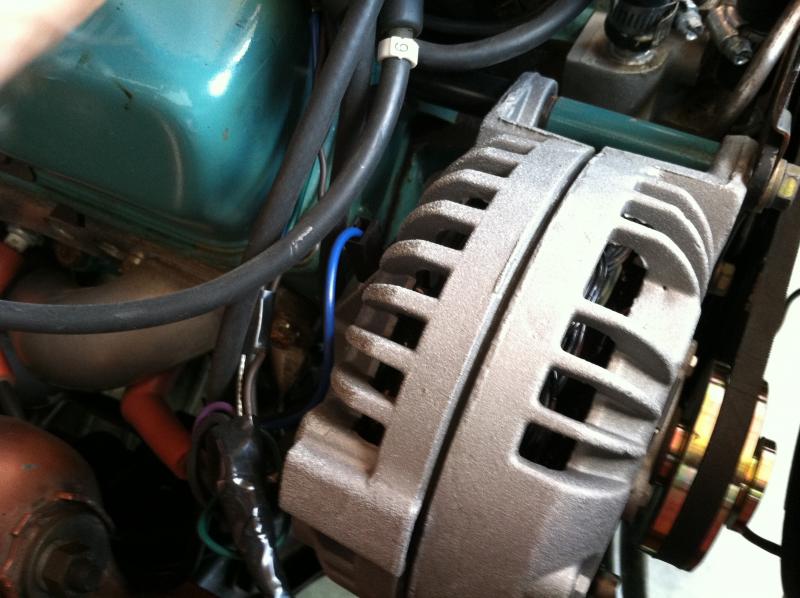

Another pic from farther away.



[1967 satellite]

Thanks for the pics. It did help. Is there any way you can tell me how long the back small spacer is. Mine is missing.



[copper67440]

1 5/8"



[Budnicks]

welcome to FBBO



[alleyoopmgv]

Welcome!



[1967 satellite]

thanks. I made one and it works!



[tqfastfish]

welcome



[1967 satellite]

finally got it done and no more squeals -THANKS!



[74moparmaniac]

Been reading the forums between "satellite and copper". The team effort is fantastic. working together like this, makes for a great bunch of Mopar Folks. By the way...welcome to the addiction, glad to have you!:sSig_welcometoourcl



[super-bee_ski]

Well,
Welcome aboard and thank you for joining the forum.
