1968 Charger gas cap help!

[nmb0003]

Just got my gas cap, trim ring and other parts from the chrome
Shop. I’ve installed my gas cap and it won’t stay latched. The chrome shop removed the roll pins and reinstalled them afterwards.

I’m suspecting the spring on the latch side is the wrong size and/or installed wrong. However I cannot find any diagrams or pics to figure it out.

I think my fuel filler neck is up enough to touch up against the quarter panel. Also I think I have enough threads through to the filler neck flange.

If anyone has up-close photos of how it’s supposed to work and be assembled, that would be great.



[turbine68rt]

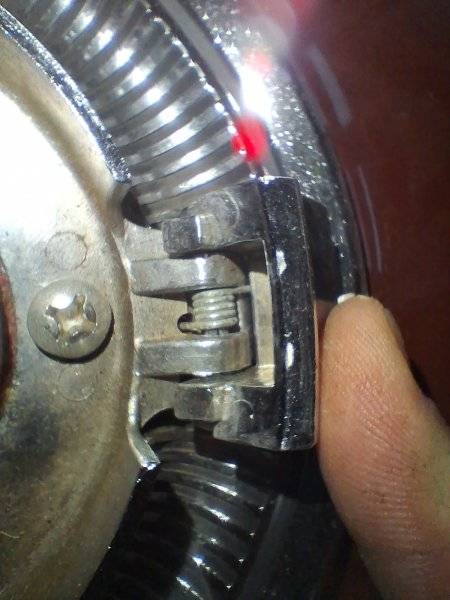

Spring orientation shown. Also the original appearance on the '68 cap had a circular brushed finish on the center raised section.



[moparsaver]

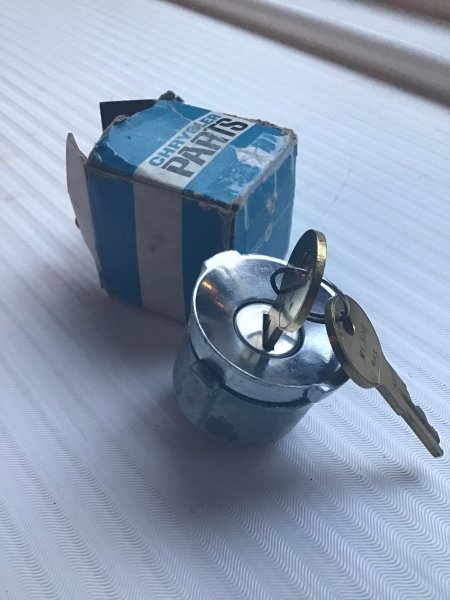

I have some locking caps if needed…



[pnora]

Just got my gas cap, trim ring and other parts from the chrome
Shop. I’ve installed my gas cap and it won’t stay latched. The chrome shop removed the roll pins and reinstalled them afterwards.

I’m suspecting the spring on the latch side is the wrong size and/or installed wrong. However I cannot find any diagrams or pics to figure it out.

I think my fuel filler neck is up enough to touch up against the quarter panel. Also I think I have enough threads through to the filler neck flange.

If anyone has up-close photos of how it’s supposed to work and be assembled, that would be great.

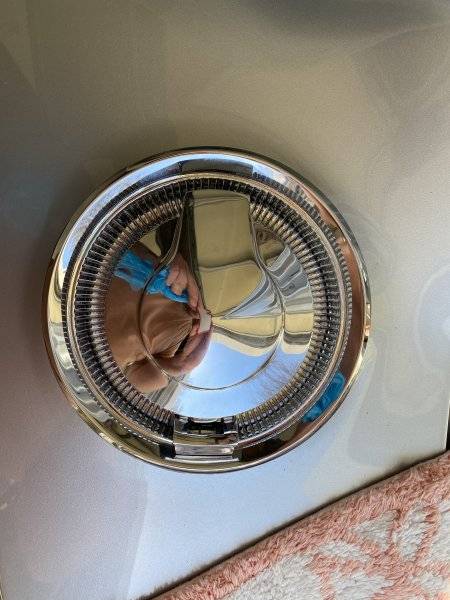

View attachment 1825332

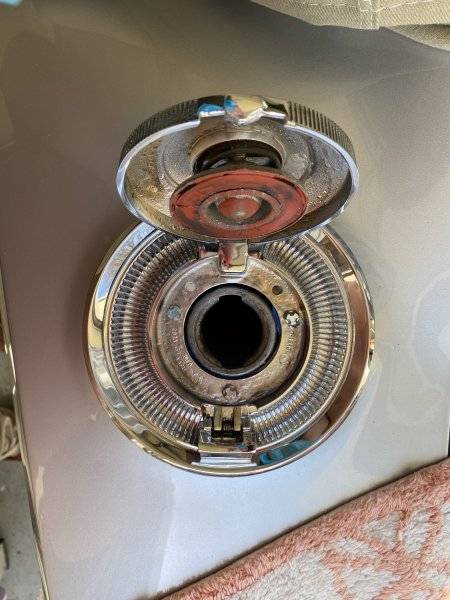

View attachment 1825333

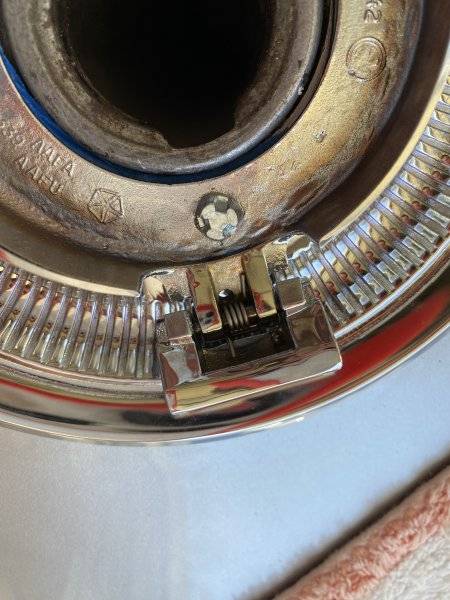

View attachment 1825334

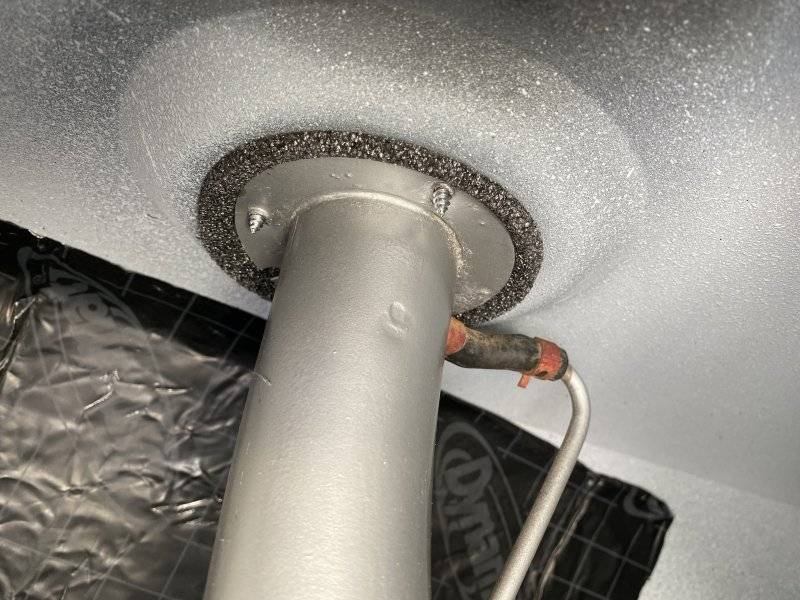

View attachment 1825335

Looks like the spring is holding the latch open or in the released position.



[Mopar Hunter]

Your spring is installed backwards.
