1969 383 Air Grabber Hood Box Installation Diagrams/instructions

[Bearkiller]

I Finally Found A Air Grabber Hood Box Assemble I'm Restoring And Would Like Some Information/diagrams/Pictures On The Proper Installation. My Car Was A Original 383 Air Grabber, But The Box Was Missing. I've Found Several Installation Hardwae Kits But No Instructions And I Want To Do It Right. Anything Would Be Very Much Appreciated. Thank You.



[citadel]

I would love to see this same info....



[Bearkiller]

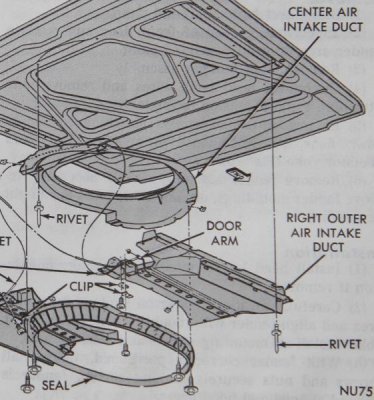

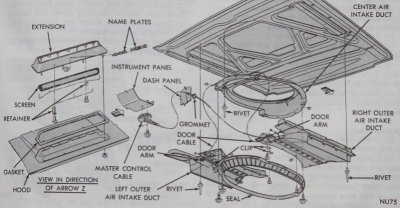

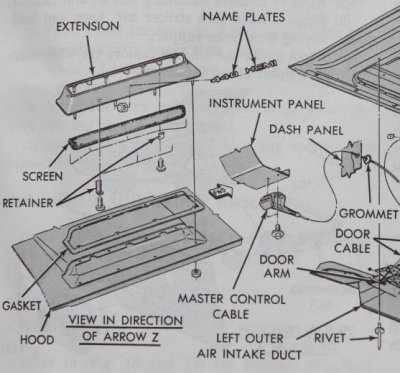

Air Grabber Box Diagrams

I had a guy send me some. Here they are. Hope it helps? If they don't come though e-mail me at [email protected]
