1969 b body upper control arm

[paul1969cars]

hi

I have a question
I removed the control arms
I got the Moog new bushing
I assume I need to press out the old outer housing or flange because this doesn't fit

The round outer existing flange look like it one piece with the arm. I know its not

How is this accomplished? Press? Heat?

Thanks



[threewood]

A press would be ideal. I think you can also rap the small side with a hammer to get it moving in the socket.



[eldubb440]

you could put a couple cuts in that collar and collapse it inward with a chisel and hammer



[Rishi]

HF sells an inexpensive press, but it takes up space in the garage. Taking your UCA out to a shop to have them press out the bushings may cost you a $20, if you talk real smoothe-like.



[RemCharger]

Agreed hit it sideways with a sharp chisel air hammer to collapse it and out in 10 seconds



[WileE]

Get the old one pressed out & the new one pressed in.



[jimbosride]

The last ones I did on the bench with a HF press

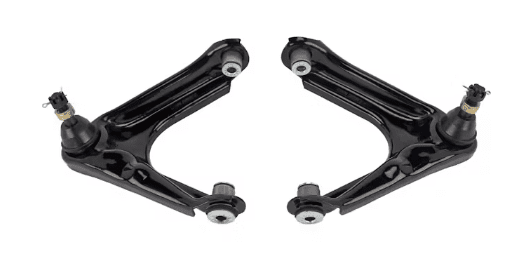

Question ...... speedway sells the complete OEM unit with all new bushings/joints for $150

Would you use them on a stock rebuild? Or rebuild the original. Can't tell where there made?



[RJ Squirrel]

Have you considered using the offset bushings to gain some caster?
