1969 GTX Grill

[Law69GTX]

I’m missing the Hood Latch vertical support brace I believe this also provides Grill Support also.
Looking for detailed Picture of one to duplicate as they are not readily available Thanks



[Jax_1975_Dart]

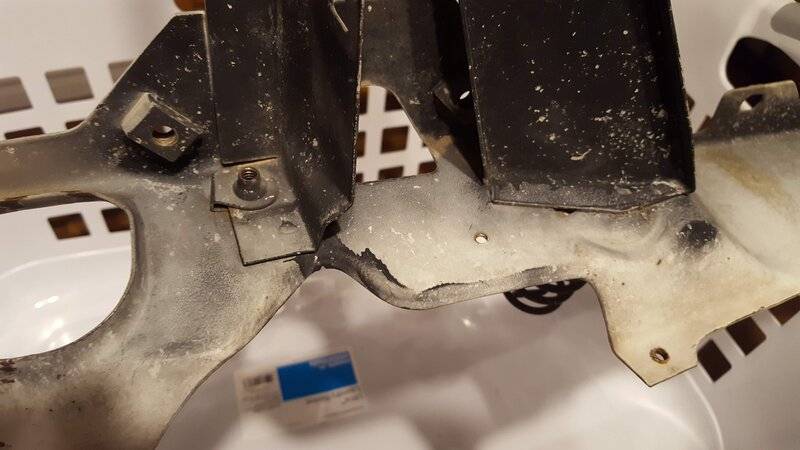

Sorry, this isn’t the best pic but, does this have the latch pictured like you’re wanting?



[Law69GTX]

Sorry, this isn’t the best pic but, does this have the latch pictured like you’re wanting?

Need image of vertical support behind grill that supports lock and goes down to lower radiator cross member Thanks



[Jax_1975_Dart]

Yeah, I kinda figured you would need an interior grill shot. I can grab a pic this upcoming Saturday but, hopefully someone else will be able to circle back to this thread sooner than that.



[SoCal440GTX]

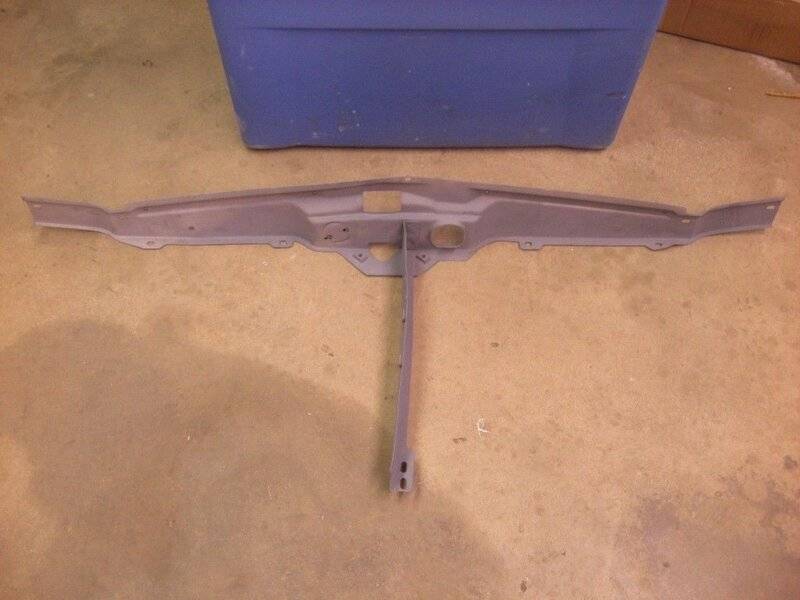

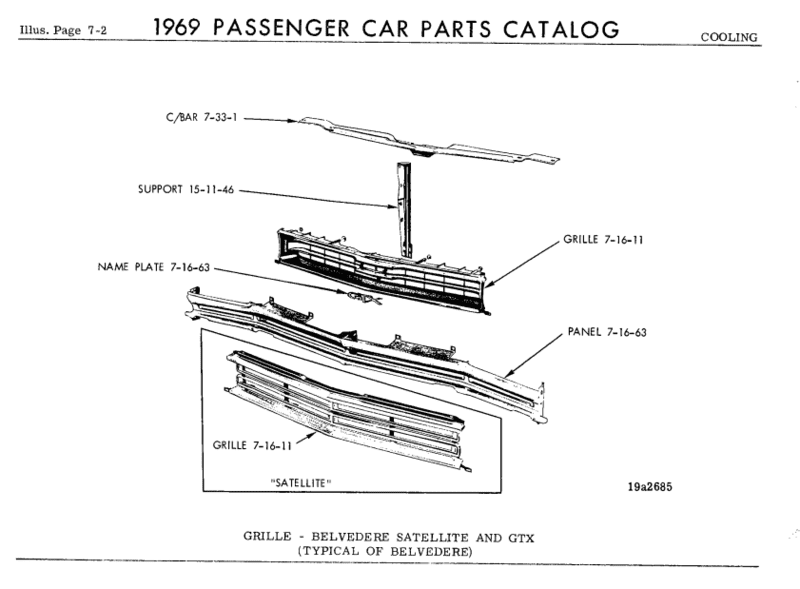

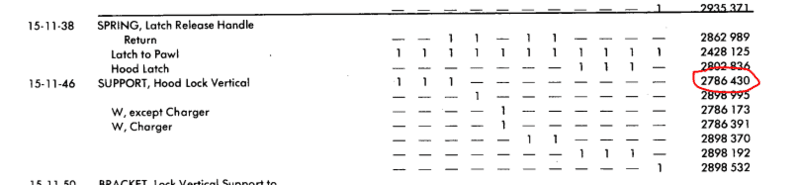

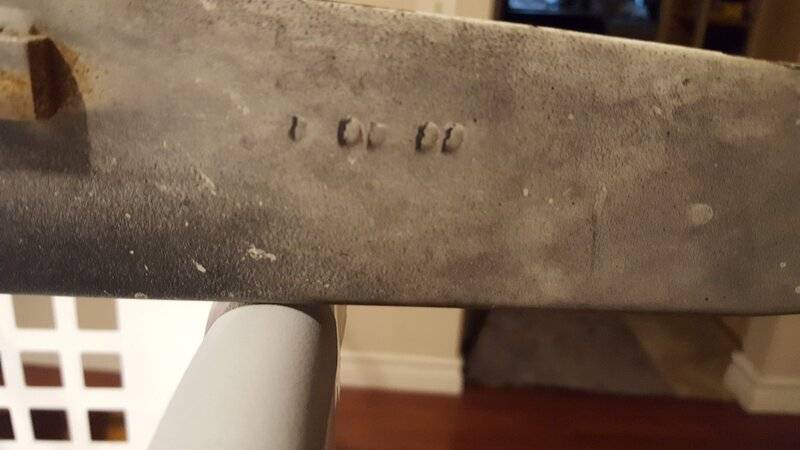

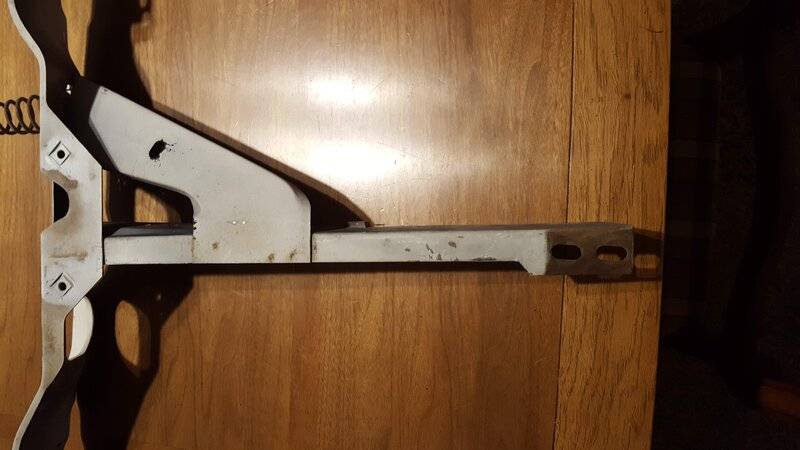

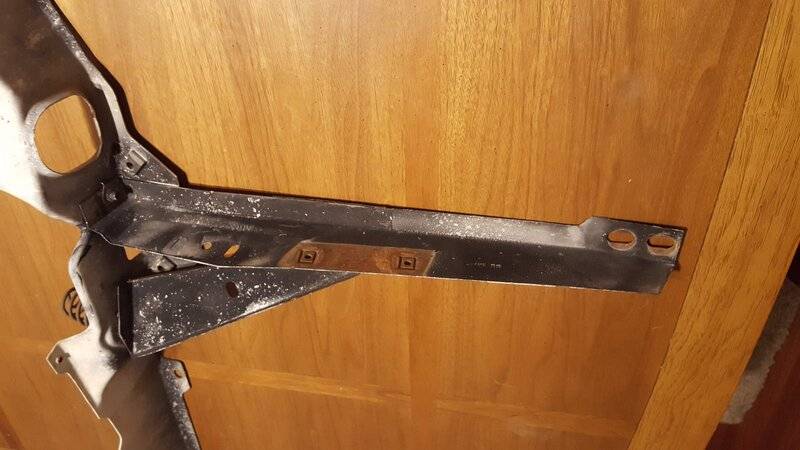

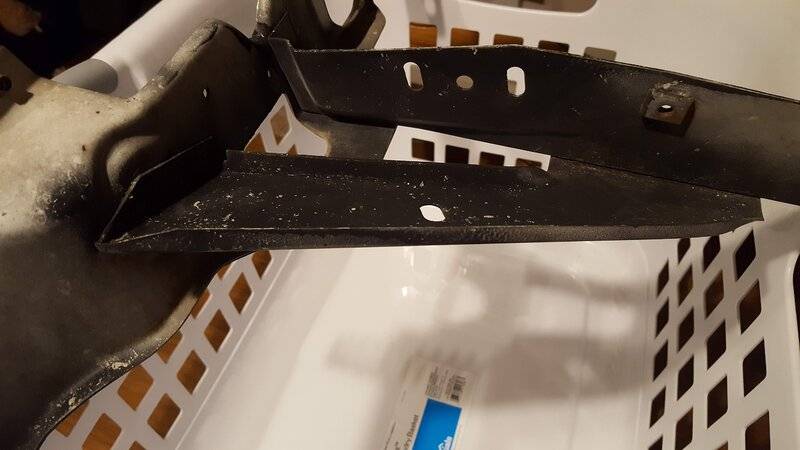

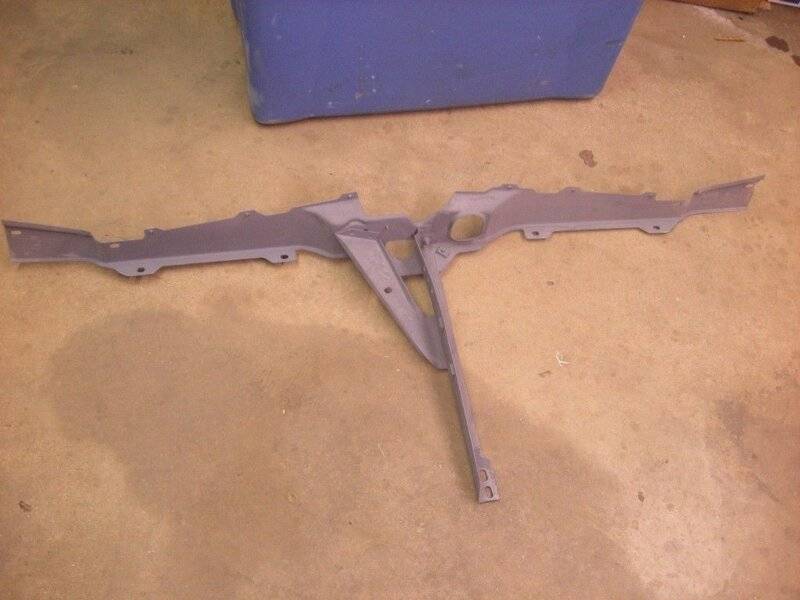

See attached. This is for a 68. 69 top horizontal piece is different, I don't know if the vertical piece is different or not. The pieces are not made to come apart.



[SoCal440GTX]

See this link...maybe there is more info you can use.

https://www.forbbodiesonly.com/moparforum/threads/strange-hood-latch-area-1968-gtx.128476/

I do not have these pieces, just the pics.
1968

1969 -



[Law69GTX]

Thanks for the info didn’t realize there were 2 pieces



[threewood]

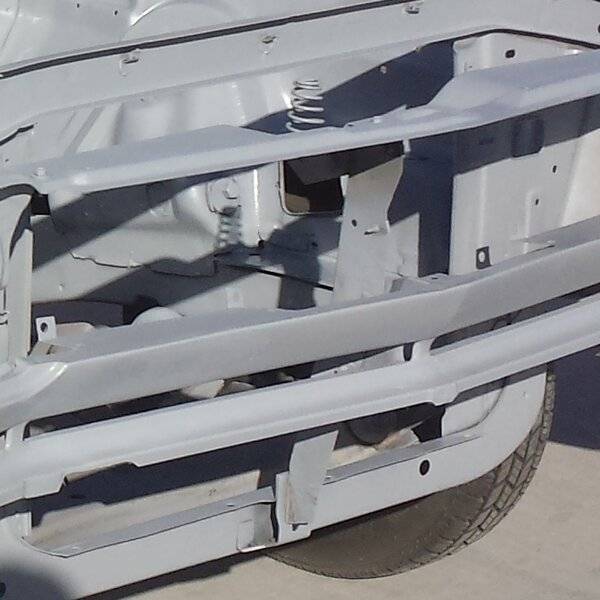

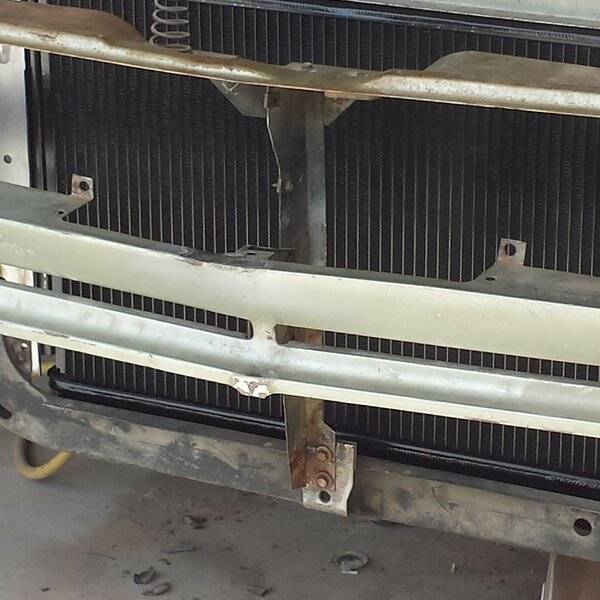

Here's a few of my 69 brace... not very detailed but what I have.



[Law69GTX]

Here's a few of my 69 brace... not very detailed but what I have.
View attachment 952070 View attachment 952071

Thanks that’s a lot of help
