1969 gtx rear upper shock bracket , support.

[Doing69]

1969 gtx , upper rear shock support bracket . Nothing on car I bought . Do they get bolted on . Shows nothing in service manual.



[hunt2elk]

They are welded in, AMD makes them.



[Doing69]

Thanks . What a shame , under car is already done and the guy who did it dident put one in before paint



[zyzzyx]

If you're really carefull, you can drill some 1/4" holes in the panel where the spot welds are
and mig them in without too much heat damage to the surrounding paint. Prime and paint
the support before you weld it in. You'll have a minimum of touch-up later. Good luck!



[dadsbee]



[Islandkent]

Air!!!



[Doing69]

If you're really carefull, you can drill some 1/4" holes in the panel where the spot welds are
and mig them in without too much heat damage to the surrounding paint. Prime and paint
the support before you weld it in. You'll have a minimum of touch-up later. Good luck!

All I have is a wire welder , think that would work ?



[zyzzyx]

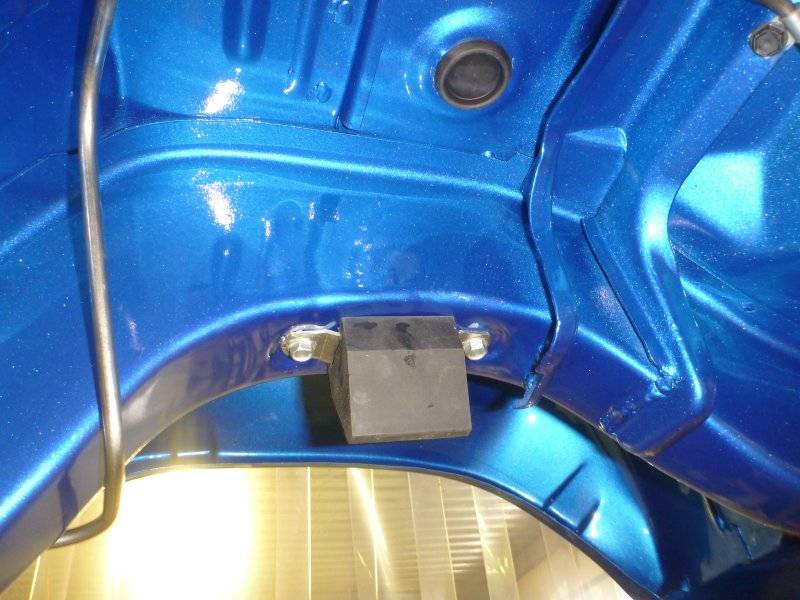

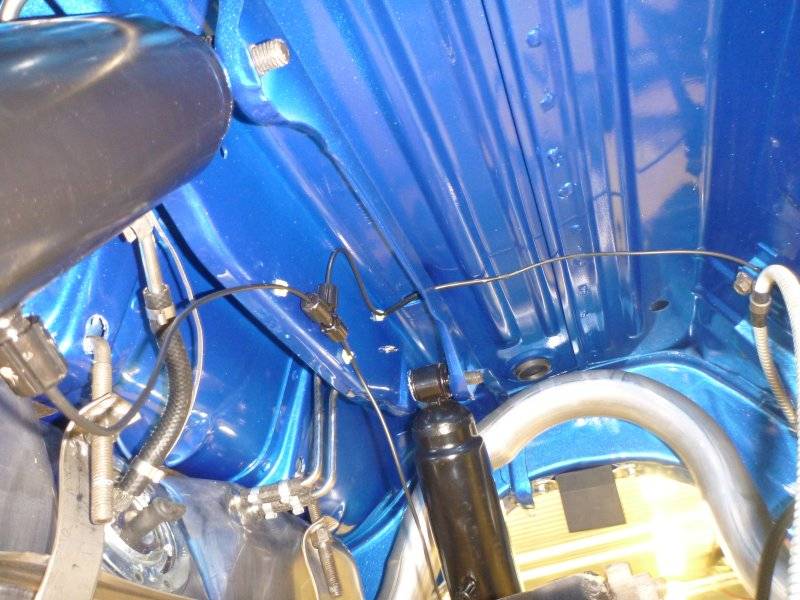

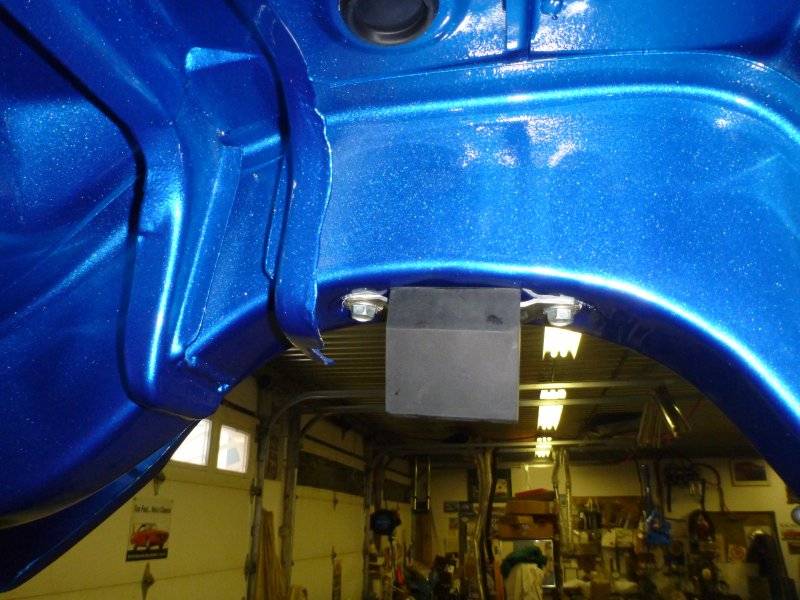

Yes! as Dadsbee illustrated with the Excellent pictures, you can mig that baby right in!



[Doing69]

Yes! as Dadsbee illustrated with the Excellent pictures, you can mig that baby right in!

Can’t see pics



[zyzzyx]

You must have a mysfunction at the junction!



[Pistol Pete]

Conjunction junction
