1969, how to install air grabber cables

[wild bill]

Hello everyone. Hope you projects are going good, and those with finished cars are having fun with them this summer! In Michigan, Dream Cruise coming up. I have a 1969 RR with an air grabber fresh air system. I am at the point in this restoration where Iam trying to attach the the 2 cables to the fresh air grabber under the hood. As you are all aware this system has two cables: one which goes inside the car which the driver uses to open and close the air ducts; and one cable under the hood which acts to open both vents at the same time. Does anyone have any pictures of how these two cables are install under the hood? I note that on the grabber unit under the hood their are two attachment points for the two cables. Iam trying to learn which cable goes where, and how they work together. Thanks for your help! Wild Bill



[moparjohnny]

Hello everyone. Hope you projects are going good, and those with finished cars are having fun with them this summer! In Michigan, Dream Cruise coming up. I have a 1969 RR with an air grabber fresh air system. I am at the point in this restoration where Iam trying to attach the the 2 cables to the fresh air grabber under the hood. As you are all aware this system has two cables: one which goes inside the car which the driver uses to open and close the air ducts; and one cable under the hood which acts to open both vents at the same time. Does anyone have any pictures of how these two cables are install under the hood? I note that on the grabber unit under the hood their are two attachment points for the two cables. Iam trying to learn which cable goes where, and how they work together. Thanks for your help! Wild Bill

i am looking for the same information as well.



[wild bill]

i am looking for the same information as well.

Kool I hope we get some replys with pics. Just like other installs after we are shown, not to bad. Gee that was easy. Ok thanks for your response Moparjohnny!



[moparjohnny]

Kool I hope we get some replys with pics. Just like other installs after we are shown, not to bad. Gee that was easy. Ok thanks for your response Moparjohnny!

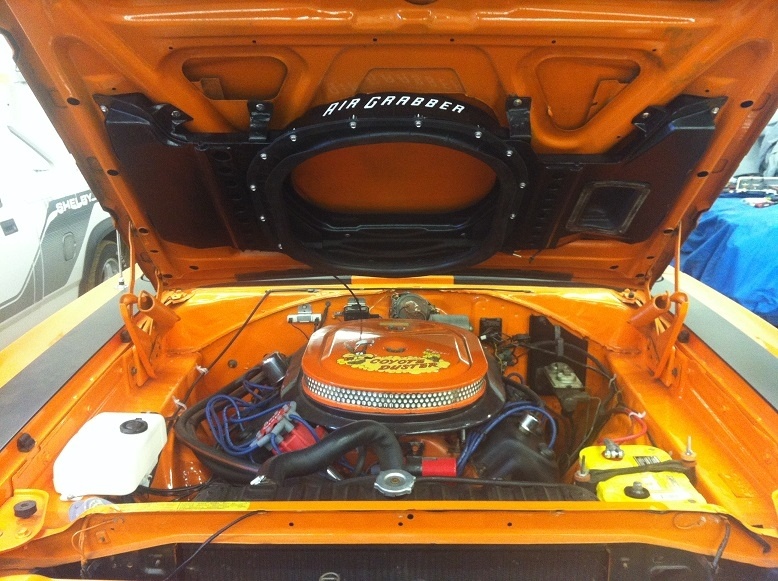

this will help us a little. see pics



[moparjohnny]

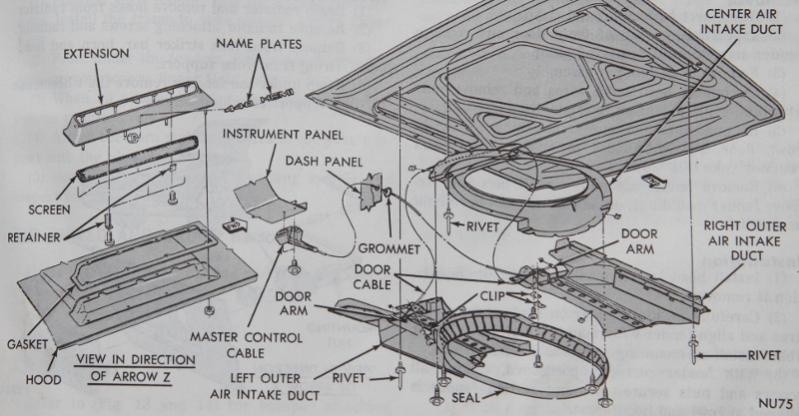

this will help us a little. see picsView attachment 355800

see more here



[wild bill]

nice engine bay!!!! Yes, should point us in the right direction for sure. We will need to put our engineering hats on. we should be able to figure it out. Thanks again. good hunting!!!!



[casull]

nice engine bay!!!! Yes, should point us in the right direction for sure. We will need to put our engineering hats on. we should be able to figure it out. Thanks again. good hunting!!!!

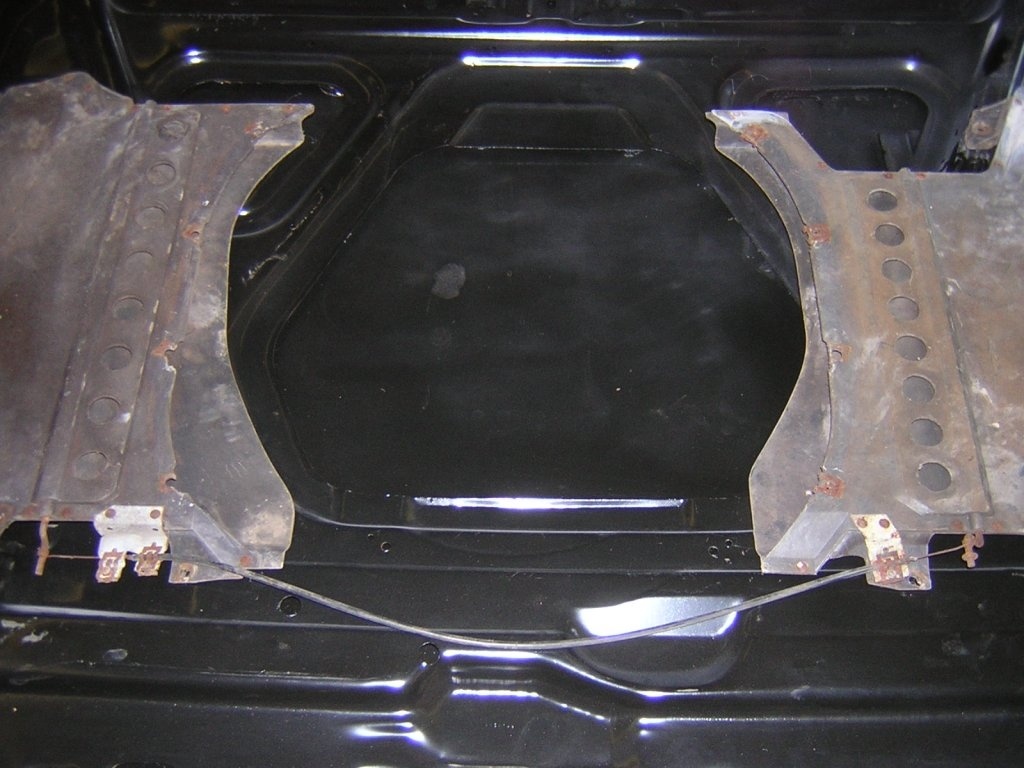

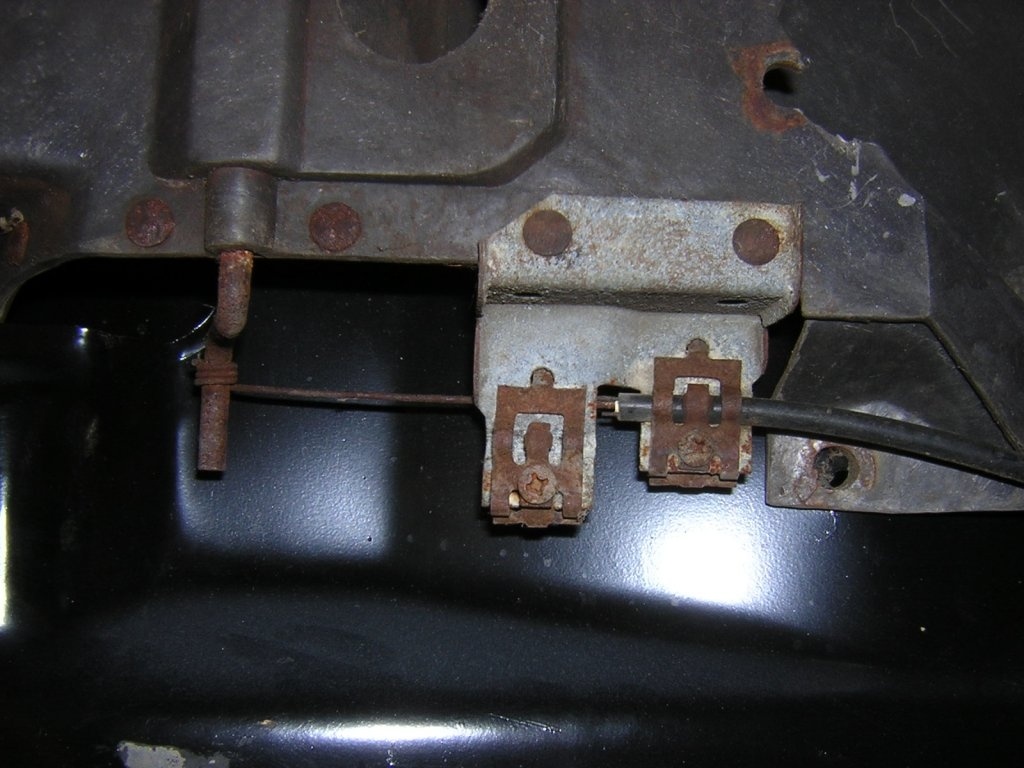

here is a pic of an original I took off. the cable going inside the car would hook up on the lower tab shown on the left and slide on the same rod as the short cable. they are held on with a push on lock nut/washer (or whatever they call it)
