1969 Road runner Emergency Brake Cable Installation pictures

[wild bill]

Hello everyone. Hope you all are doing well. In Michigan still waiting for weather to break. I was wondering if anyone has a picture of the underside of their mopar which shows how to connect the emergency brake cables. Any help would be greatly appreciated. Perhaps its not a big deal, but a picture or two would help I think. Thank you all for your help.



[threewood]



[wild bill]

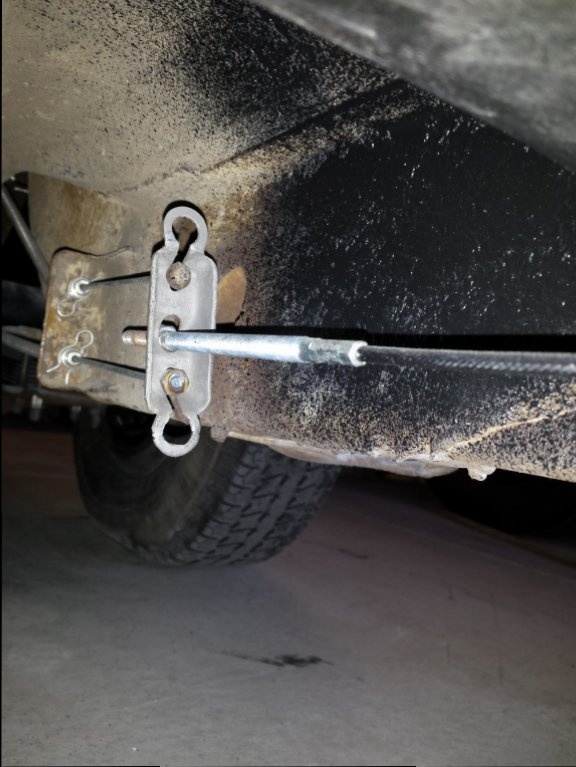

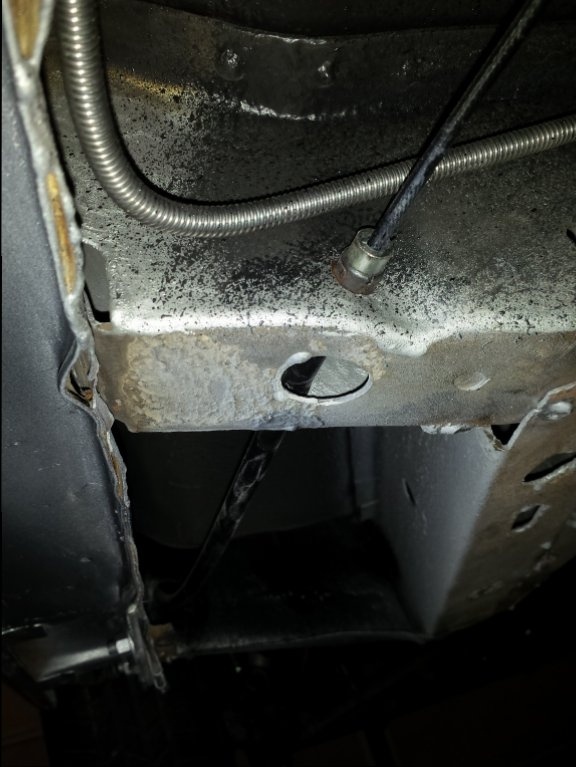

View attachment 410922 View attachment 410923

omg!!!!! thank you so much!!!! gives me idea on how to install e brake cables. thank you so much!!!!!!



[wild bill]

Hello everyone. Hope you all are doing well. In Michigan still waiting for weather to break. I was wondering if anyone has a picture of the underside of their mopar which shows how to connect the emergency brake cables. Any help would be greatly appreciated. Perhaps its not a big deal, but a picture or two would help I think. Thank you all for your help.

Addendum to installing e brake cables on 69 Road Runner. First, thanks to Threewood for the pictures on how these cables are connected. These pictures sure did help me! I found one other site which has additional pics for a dodge. my search engine was: "Installing 1969 plymouth roadrunner e brake cables". this will take you to: Dodgecharger.com site which also has pics of these cables interact. And it has some interesting comments. good luck! thanks again to all
