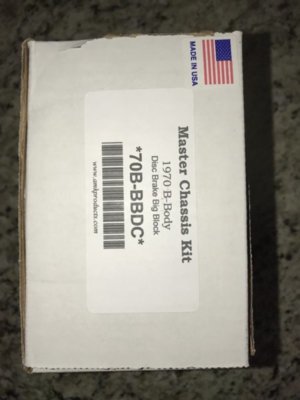

New unopened Master Chassis Bolt Kit Part# 70B-BBDC $350 shipped to lower Continental US states.
The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler.
Master Chassis Hardware Kit Includes:
Part # Application Notes Pcs
C-8338 Accelerator Pedal (B & E Body) Coni Keps, Coni Sems 6
C-8115 Axle Housing > Springs 1/2-20 X 7.12 U-Bolts, Lock Nuts 12
C-8222 Axle Retaining Nuts Hx Lock Nuts, Flng Nuts 10
C-8224 Ball Joints W Disc Brakes Hx Bolts, Slotted Nuts, Pins 12
C-8336 Brake Booster Hx Lock Nuts 4
C-8202 Brake Cable Tension Adjuster Flange Lock Nut Only 1
C-8125 Brake Caliper Tube Brackets Hx Coni Sems 4
C-8121 Brake Calipers > Spindle Hx Coni Sems 4
C-8177 Brake Drum Retainers 1/2" Stud, Green Push On Retainers 6
C-8228 Brake Hoses > Bracket Clips U-Clips 3
C-8122 Brake Rotor Shields Hx Coni Sems 6
C-8212 Control Arms (Upr) Cam Bolts, Washers, Nuts 16
C-8133 Differential Carrier - 8 3/4 Nuts W Nylon Patch 10
C-8027 Differential Carrier Cover - 9 3/4 3/8" Hx Flng Bolts "E" 10
C-8106 Driveshaft > Flange Straps, Hx Bolts, Split Wa'S 10
C-8088 Engine Insulator > Body - V8 Exc Hemi Hx Bolts "38", Coni Wa'S 4
C-8084 Engine Insulator > Eng Brkt - Exc Hemi Hx Nuts, Coni Wa'S 4
C-8086 Engine Mount Brackets - 383/440 Hx Bolts, 5/8 Af Nuts, Flat Wa'S 19
C-8131 Gas Tank J-Bolts, Lock Nuts 4
C-8215 Idler Arm "Tr" Hex Bolt, Tri-Slot Nut, Pin 3
C-8216 K-Frame > Body Special Hex Coni Sems 4
C-8112 Leaf Spring Mounting @ Front Hub Bolts, Coni Keps 16
C-8214 Leaf Spring Mounting @ Front "H" Marked Bolts, Marsden Nuts 4
C-8332 Master Cylinder Hx Lock Nuts 4
C-8334 Master Cylinder Support Plate Coni Keps, Ext Keps, Sealer 4
C-8330 Parking Brake Control > Body Hx Coni Sems, Coni Keps 3
C-8226 Pitman Arm Nut, Split Wa 2
C-8203 Proportioning Valve > Apron Red Flange Lock Nut 1
C-8113 Shackles - Nuts Only Hx Nuts 4
C-8110 Shocks (Fr) - Lwr Mounting 7/16 Hx Bolts "Tr" Or "D", Lock Nuts 4
C-8120 Shocks (Rr) - Lwr Mounting Hx Nuts Only 2
C-8123 Shocks (Rr) - Upr Mounting Hx Bolts, Lock Nuts 4
C-8111 Stabilizer Bar Center Supports (B & E Body) Hx Bolts "H", Coni Sems, Lock Nuts 16
C-8124 Steering Gear (B Body) Hi-Hx Hd Bolts, Split Wa'S 6
C-8178 Steering Linkage Tri-Slot Nuts, Cotter Pins 12
C-8105 Strut Rod > K-Frame (B & E Body) 5/8-11 Lock Nuts 4
C-8117 Suspension Bumper Brkt > 8 3/4 Axle Hx Coni Sems "Anchor" 2
C-8157 Suspension Bumper Brkt > 9 3/4 Axle Hx Coni Sems "Anchor" 3
C-8175 Suspension Bumpers (Fr) Hug-Lok Nuts 4
C-8440 Suspension Bumpers (Rr) Hx Flng Screws 4
C-8199 Trans Crossmember Hx Bolts, Coni Keps, Flat Wa'S 16
C-8095 Trans Insulator > Crossmember Lock Nut 1
C-8094 Trans Insulator > Trans Hx Coni Sems, Sqr Wa'S 4
C-8104 Wheel Cylinders (2) W 1/4-20 Hx Flng Screws 4
The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler.
Master Chassis Hardware Kit Includes:
Part # Application Notes Pcs
C-8338 Accelerator Pedal (B & E Body) Coni Keps, Coni Sems 6
C-8115 Axle Housing > Springs 1/2-20 X 7.12 U-Bolts, Lock Nuts 12
C-8222 Axle Retaining Nuts Hx Lock Nuts, Flng Nuts 10
C-8224 Ball Joints W Disc Brakes Hx Bolts, Slotted Nuts, Pins 12
C-8336 Brake Booster Hx Lock Nuts 4
C-8202 Brake Cable Tension Adjuster Flange Lock Nut Only 1
C-8125 Brake Caliper Tube Brackets Hx Coni Sems 4
C-8121 Brake Calipers > Spindle Hx Coni Sems 4
C-8177 Brake Drum Retainers 1/2" Stud, Green Push On Retainers 6
C-8228 Brake Hoses > Bracket Clips U-Clips 3
C-8122 Brake Rotor Shields Hx Coni Sems 6
C-8212 Control Arms (Upr) Cam Bolts, Washers, Nuts 16
C-8133 Differential Carrier - 8 3/4 Nuts W Nylon Patch 10
C-8027 Differential Carrier Cover - 9 3/4 3/8" Hx Flng Bolts "E" 10
C-8106 Driveshaft > Flange Straps, Hx Bolts, Split Wa'S 10
C-8088 Engine Insulator > Body - V8 Exc Hemi Hx Bolts "38", Coni Wa'S 4
C-8084 Engine Insulator > Eng Brkt - Exc Hemi Hx Nuts, Coni Wa'S 4
C-8086 Engine Mount Brackets - 383/440 Hx Bolts, 5/8 Af Nuts, Flat Wa'S 19
C-8131 Gas Tank J-Bolts, Lock Nuts 4
C-8215 Idler Arm "Tr" Hex Bolt, Tri-Slot Nut, Pin 3
C-8216 K-Frame > Body Special Hex Coni Sems 4
C-8112 Leaf Spring Mounting @ Front Hub Bolts, Coni Keps 16
C-8214 Leaf Spring Mounting @ Front "H" Marked Bolts, Marsden Nuts 4
C-8332 Master Cylinder Hx Lock Nuts 4
C-8334 Master Cylinder Support Plate Coni Keps, Ext Keps, Sealer 4
C-8330 Parking Brake Control > Body Hx Coni Sems, Coni Keps 3
C-8226 Pitman Arm Nut, Split Wa 2
C-8203 Proportioning Valve > Apron Red Flange Lock Nut 1
C-8113 Shackles - Nuts Only Hx Nuts 4
C-8110 Shocks (Fr) - Lwr Mounting 7/16 Hx Bolts "Tr" Or "D", Lock Nuts 4
C-8120 Shocks (Rr) - Lwr Mounting Hx Nuts Only 2
C-8123 Shocks (Rr) - Upr Mounting Hx Bolts, Lock Nuts 4
C-8111 Stabilizer Bar Center Supports (B & E Body) Hx Bolts "H", Coni Sems, Lock Nuts 16
C-8124 Steering Gear (B Body) Hi-Hx Hd Bolts, Split Wa'S 6
C-8178 Steering Linkage Tri-Slot Nuts, Cotter Pins 12
C-8105 Strut Rod > K-Frame (B & E Body) 5/8-11 Lock Nuts 4
C-8117 Suspension Bumper Brkt > 8 3/4 Axle Hx Coni Sems "Anchor" 2
C-8157 Suspension Bumper Brkt > 9 3/4 Axle Hx Coni Sems "Anchor" 3
C-8175 Suspension Bumpers (Fr) Hug-Lok Nuts 4
C-8440 Suspension Bumpers (Rr) Hx Flng Screws 4
C-8199 Trans Crossmember Hx Bolts, Coni Keps, Flat Wa'S 16
C-8095 Trans Insulator > Crossmember Lock Nut 1
C-8094 Trans Insulator > Trans Hx Coni Sems, Sqr Wa'S 4
C-8104 Wheel Cylinders (2) W 1/4-20 Hx Flng Screws 4
