1970 road runner brake line help

[Jimclo2002]

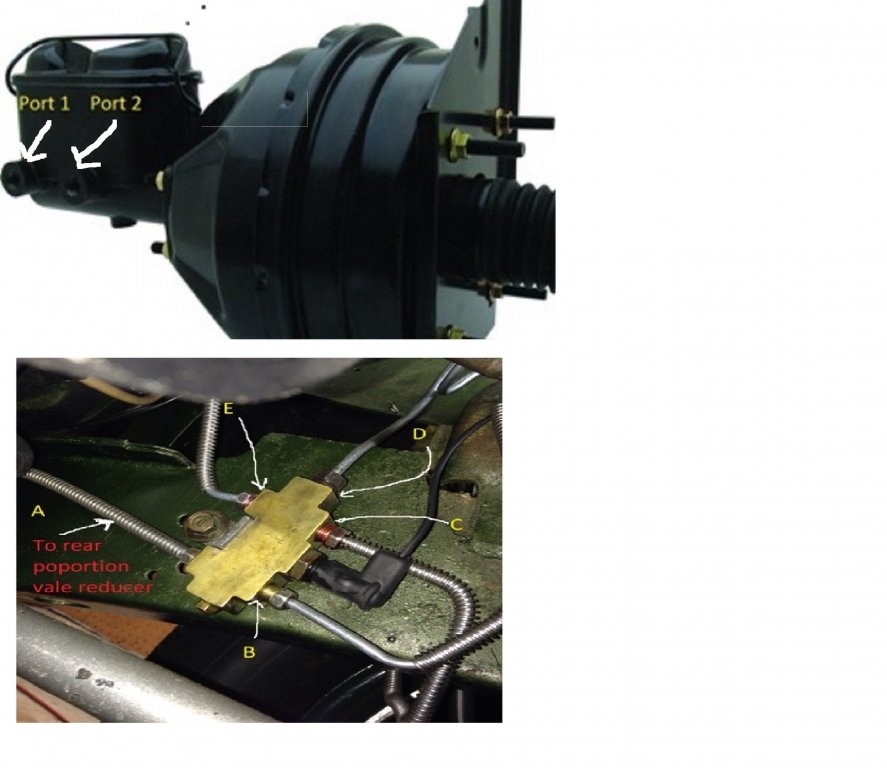

I could use some of your Mopar guidance. I believe I'm have a issue with the correct brake line location connections. I have attached a file with a photo of the Portion Value and the Master cylinder. i labeled all the ports. For some reason I'm not getting the draw of brake fluid while trying to bleed brakes. Can you write next to where the corresponding connections go?

A Portion Value ________________________________?
B Portion Value_________________________________?
C Portion Value_________________________________?
D Portion Value_________________________________?
E Portion Value__________________________________?
Port 1 Master Cylinder____________________________?
Port 2 master Cylinder____________________________?

Each wheel cylinder , all brake lines power booster and master cylinder are new. the Portion Valve was removed and cleaned.

View attachment 336377



[miller]

Assuming you have disc up front, drums in the rear...right?
Look at your master cylinder...on the disc/drum setup, largest 'pot' feeds the disc brakes.

A Portion Value ________________________________?
- Goes to the portioning valve, then to rear brakes.
(Tees at the rear axle, to feed each side)
B Portion Value_________________________________?
- From MC port 1
C Portion Value_________________________________?
- From MC port 2 (if I'm looking at it right), and feeds to both D and E, one to each front disc brake.
D Portion Value_________________________________?
E Portion Value__________________________________?
Port 1 Master Cylinder____________________________rear brakes
Port 2 master Cylinder____________________________front brakes



[Jimclo2002]

Assuming you have disc up front, drums in the rear...right?
Look at your master cylinder...on the disc/drum setup, largest 'pot' feeds the disc brakes.

A Portion Value ________________________________?
- Goes to the portioning valve, then to rear brakes.
(Tees at the rear axle, to feed each side)
B Portion Value_________________________________?
- From MC port 1
C Portion Value_________________________________?
- From MC port 2 (if I'm looking at it right), and feeds to both D and E, one to each front disc brake.
D Portion Value_________________________________?
E Portion Value__________________________________?
Port 1 Master Cylinder____________________________rear brakes
Port 2 master Cylinder____________________________front brakes

*********************************************************************************************************************************************************************************************
The 70 roadrunner has 11 inch drum front and rear



[Jimclo2002]

*********************************************************************************************************************************************************************************************
The 70 roadrunner has 11 inch drum front and rear.
Also right now C is going to the drivers wheel



[miller]

Ah...okay. Not sure on a 70 model...could be other valves involved. Also not positive on the master. Most all drum masters I've seen that are split have same size pots. Just disc/drum using different size pots.
Best bet is a service manual, if the brakes are stock.

Maybe someone running a 70 will chime in...
