1970 Road Runner hood clearence

[r70rr]

I, have a 1970 Road Runner with a Air Grabber Hood and a 440 cid Want to install a Edelbrock Performer RPM 440 intake. Looks too tall to fit!!!
Has anyone done this installation on this car? What problems if any did you have?

Thanks.



[Dave Pratt]

I have the same question but with a 70 383...not meaning to hi-jack your thread but I'm wanting to switch from a stock manifold to a modern performance in-take and like you I'm running the Air Grabber hood also...



[Northwest]

Performer RPM Air Grabber

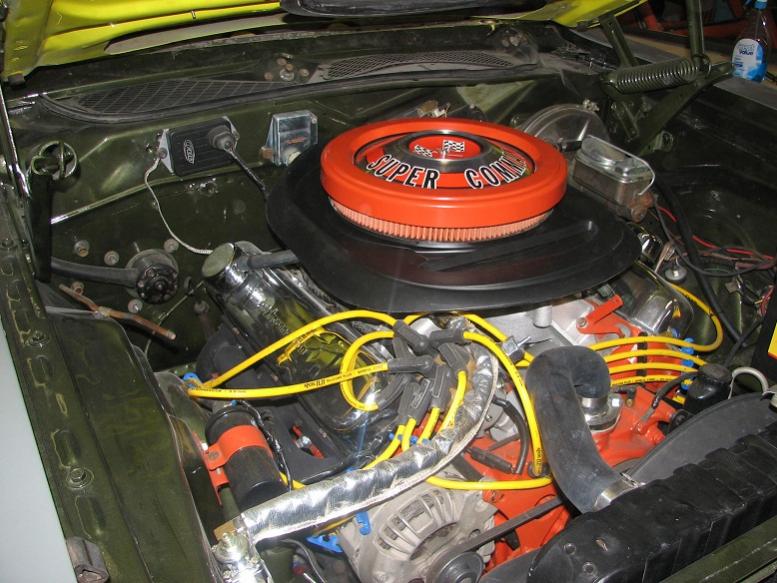

I have a 71 with a 440, performer RPM and air grabber. So - its not precisely what you are looking for, but I did make it work.

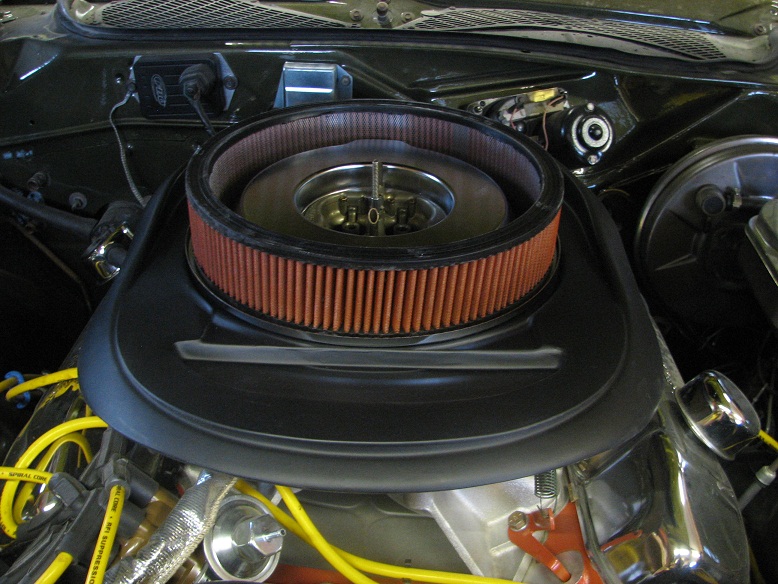

I used a fiberglass reproduction air grabber base - removed the middle part and fabricated in a drop-element air cleaner base in its place. 13 inch Ford Motorsports has one. Wouldn't fool anyone and that isn't my intent. But I do like to be able to restore the function of the grabber and get back to a stock-like look.

There is not much clearance between the base and the stock lid - maybe 3/4 inch where it dips. I could probably shave a little off the horn to get more clearance. Another project for another time.



[r70rr]

Thanks, I, will go ahead and set it up on engine with carb and aftermarket cleaner and see how it goes. Thanks for the help!!!!!!!!



[Northwest]

Good luck! Let me know if you need other pics or have other Qs.



[r70rr]

Hi!

What is the size of the air filter Diameter and HEIGHT. Thanks



[Northwest]

I am using the stock size filter. 13 in dia x 3 inch tall.



[Mick70RR]

I have a 71 with a 440, performer RPM and air grabber. So - its not precisely what you are looking for, but I did make it work.

I used a fiberglass reproduction air grabber base - removed the middle part and fabricated in a drop-element air cleaner base in its place. 13 inch Ford Motorsports has one. Wouldn't fool anyone and that isn't my intent. But I do like to be able to restore the function of the grabber and get back to a stock-like look.

There is not much clearance between the base and the stock lid - maybe 3/4 inch where it dips. I could probably shave a little off the horn to get more clearance. Another project for another time.

I did the same for my 70 Road Runner using a 14" drop down air cleaner base that drops down about 1.5".
Fit nicely with both the Performer RPM and M1 intakes.



[r70rr]

Thanks Northwest !!!!!!

Mick70RR
Does your 70 Roadrunner have the
AIR GRABBER HOOD? What amount of clearence do you have?
Thanks



[Mick70RR]

Yes it's an air grabber hood. I use a 3" tall air filter and it's very close to the hood but does clear.



[Mick70RR]

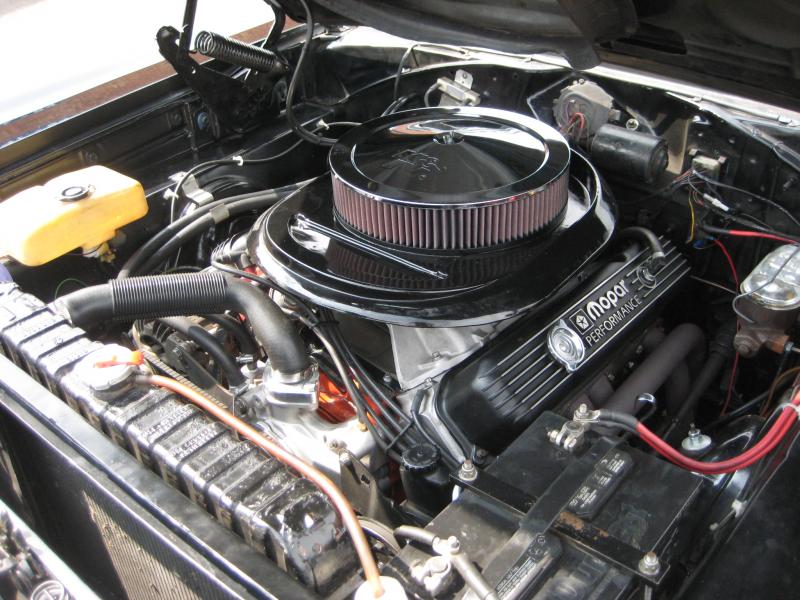

Found a picture.



[r70rr]

Hi, and thanks, placed intake, carb and air cleaner on it today. Have about a 1/4" of clearence at the wing nut. Guess that works.

Thanks again to both of you for all the HELP and Pictures.



[HawkRod]

Note that the 440 and 383 air grabber bases are different heights. The base for a 383 is taller than a 440. This is because the top of a RB 440 sits higher in the engine compartment.

So, if you have a 383 with a proper air grabber setup, you can put a slightly taller intake manifold and switch to a 440 air grabber base for some additional clearance.

Hawk
