1970 roadrunner 383 throttle spring bracket picture

[barryv]

hi,
does anyone have closeup pictures of throttle spring bracket for a 1970 road runner 383 engine and how the springs are positioned as well.thank you



[NoCar2023]

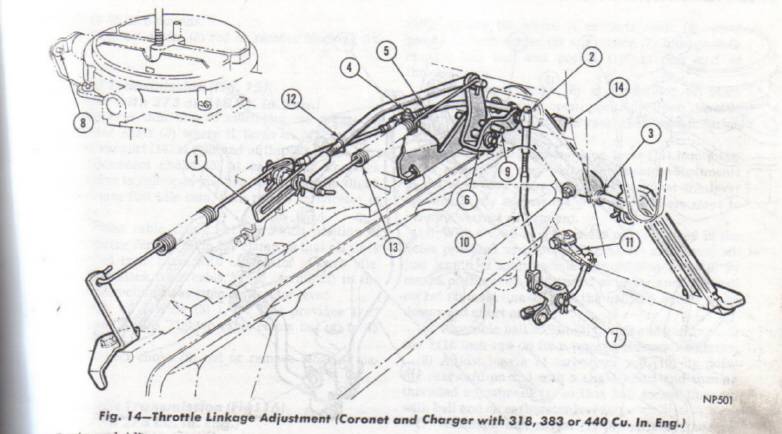

This appears to be non-AC.



[NoCar2023]

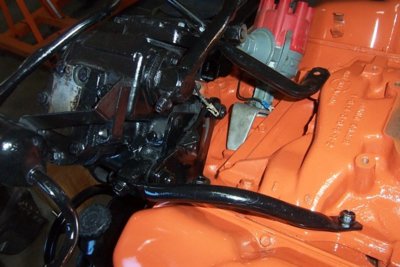

With A/C.
Hard to see little bracket with the hole.



[barryv]

With A/C.
Hard to see little bracket with the hole.

View attachment 695497

hi,thanks for the pictures.my car is non a/c. any other pics would be very helpful.thanks again



[BeepBeepRR]

You cant get a better picture than the factory manual one posted above.. Its clear and helpful.



[NoCar2023]

https://www.google.com/search?biw=1...Ag&q=mopar+carb+linkage&oq=mopar+carb+linkage
