1970 Speedometer Cable routing

[Tony 70GTX]

Does anyone know where I can find a diagram that shows how the speedometer cable should route from the back of the dash to the tranny. Verbal description is fine also. I have a 1970 440 GTX 4spd. Thanks



[Beekeeper]

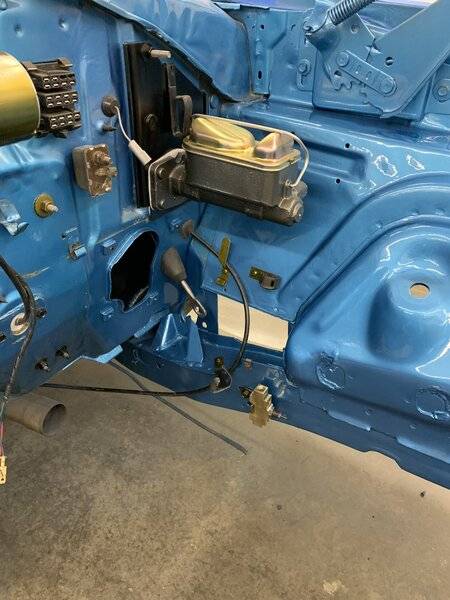

this should help you out some. There’s also a clip spot welded to the floor pan the cable runs through that you can’t see in the pic.



[dadsbee]



[davek]

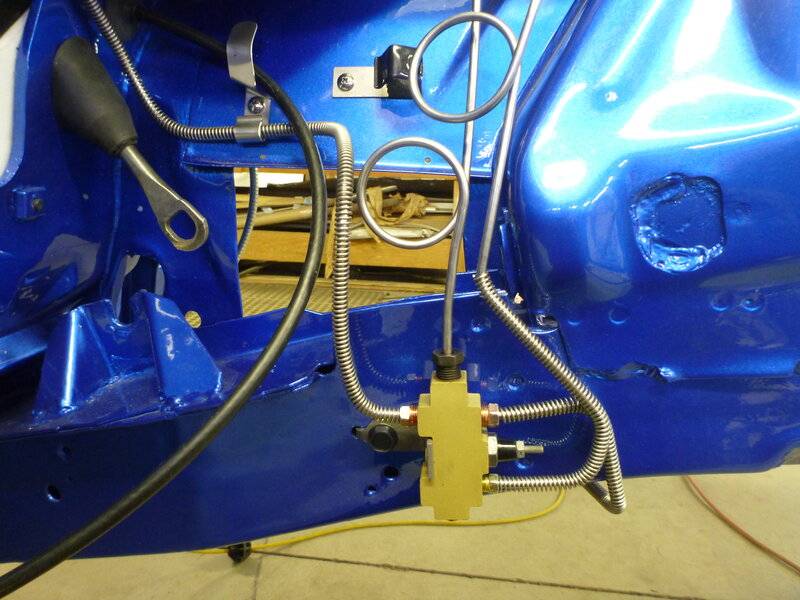

View attachment 1071791

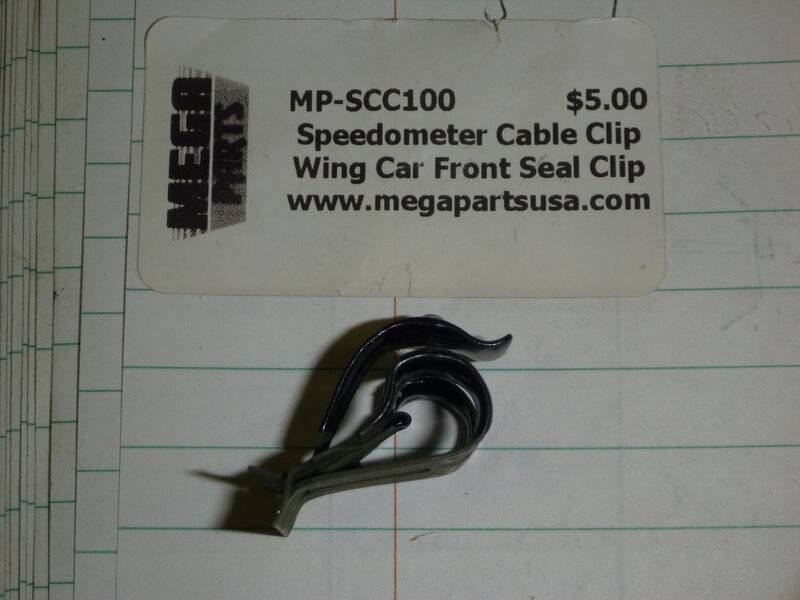

View attachment 1071794

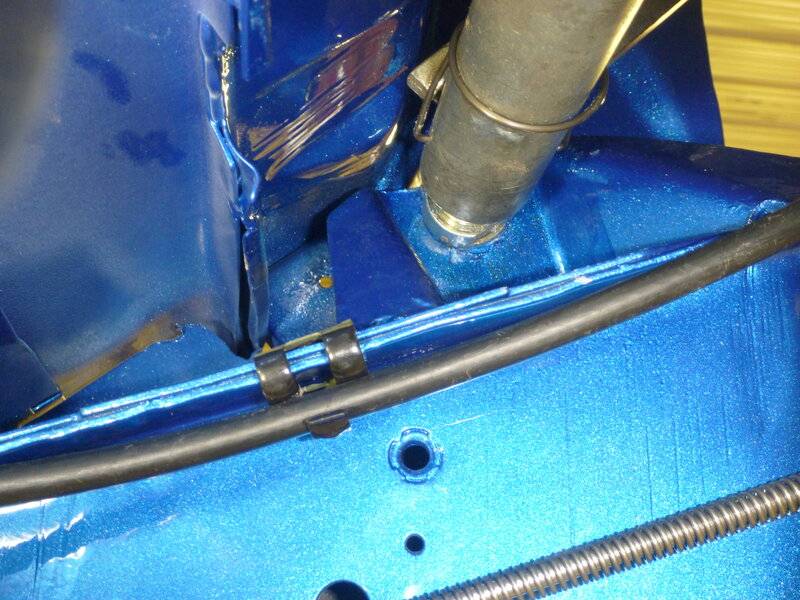

View attachment 1071797

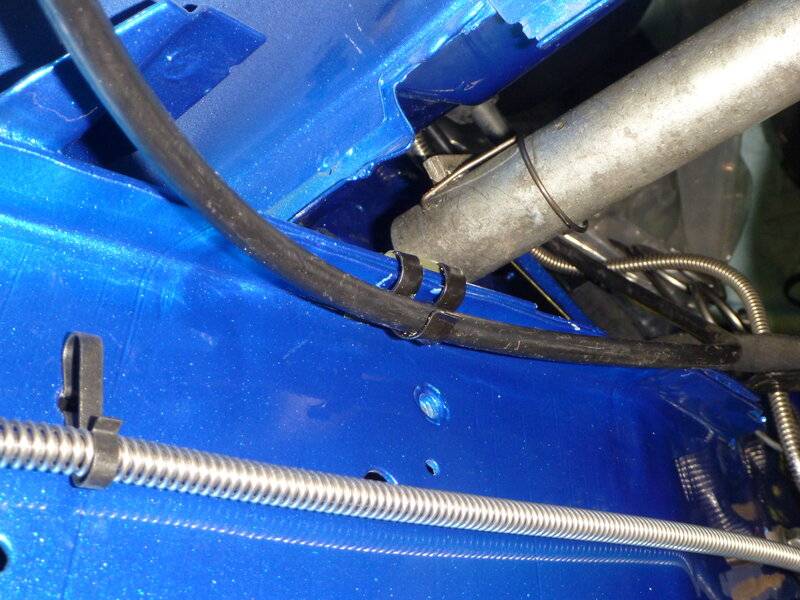

View attachment 1071798

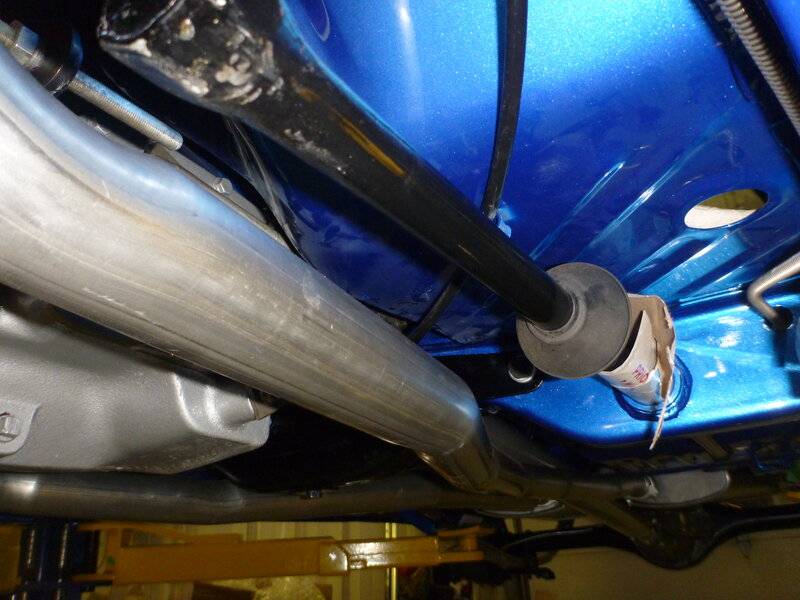

View attachment 1071801

Do you know who sells the upper clip speedo and brake line?



[dadsbee]

Do you know who sells the upper clip speedo and brake line?

Pretty common with everyone, but I'd go with Jamie....but I can't find them on his site... so here's Partsmix..

https://www.partsmix.com/products/m...ble-brake-line-battery-cable-bracket-kit.html
