1971 charger SE 383 suspension/brake ?

[Rikker]

I am a new member with a 1971 Charger SE 383. Needs work but it is all there and runs great. Could anyone please suggest a good 4 wheel disk brake conversion kit that they did an upgrade on their charger? Seen so many and can't decide? While its apart I believe I should do a front end suspension rebuild. Any suggestions on a front end kit, poly or rubber? Thank you in advance for your suggestions?
Rick



[aldal]

Do a search of the forums and you should get a wealth of information. Also here is some interesting reading to help your search. Good luck, and welcome.

http://webcache.googleusercontent.c...w.moparaction.com/Tech/archive/disc-main.html

Also check out this site in the B-body area, Wayne has some good videos to help explain brakes and such.

http://therammaninc.com/



[dieseldazzle]

Rear:
Wilwood 140-10767

Front:
Wilwood 140-11021 -d or -r depending on your liking

Note you must use 15 inch wheels and aftermarket repop steel 15 inch magnums need clearancing to fit the front kit.



[PurpleBeeper]

I suggest using polyurethane suspension bushings (with white lithium grease). I've had good luck with all the cars I've done with them. They handle better & the only drawback I've noticed is they can squeak a little if they're not greased.



[dart4forte]

Call Firmfeel and talk with Dick. He knows Mopar suspensions



[71charger_fan]

I have Volare front spindles/brakes with an A-body manual disc master cylinder and Mustang GT rear discs from Dr. Diff. I use the combination valve out of the donor Volare. Great balance and stopping performance.



[Bb70charger500]

Wilwoods are the way to go you get alot of bang for the buck!



[Rikker]

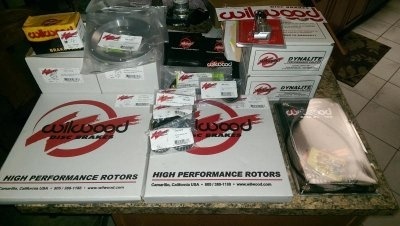

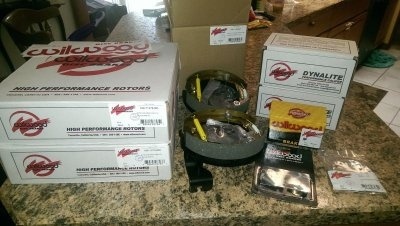

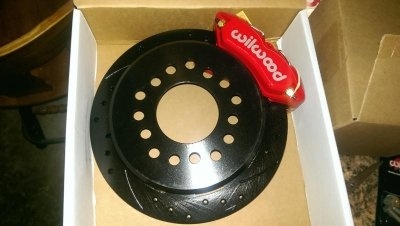

Wilwoods are the way to go you get alot of bang for the buck!View attachment 385036 View attachment 385037 View attachment 385038

Thank you all for the great advice. Iam looking forward to ordering my kits. I see the wilwoods kits do not come with new steering knuckles. Do you suggest new knuckles as well?



[Rikker]

Rear:
Wilwood 140-10767

Front:
Wilwood 140-11021 -d or -r depending on your liking

Note you must use 15 inch wheels and aftermarket repop steel 15 inch magnums need clearancing to fit the front kit.

I have the 15 in stock rally wheels? That will work correct?



[dart4forte]

I have the 15 in stock rally wheels? That will work correct?

What is the diameter of those rotors?



[Rikker]

Thank you I was able to get the spec from wildwood for the inner wheel size
