1971 charger vinyl top trim holes

[moparvinson]

Does anyone have any pics of the holes for the vinyl top trim on a 1971 charger? I am adding a vinyl top and bought a complete of trim but would like to see where the holes are. Thanks for any help.



[RRGTX]

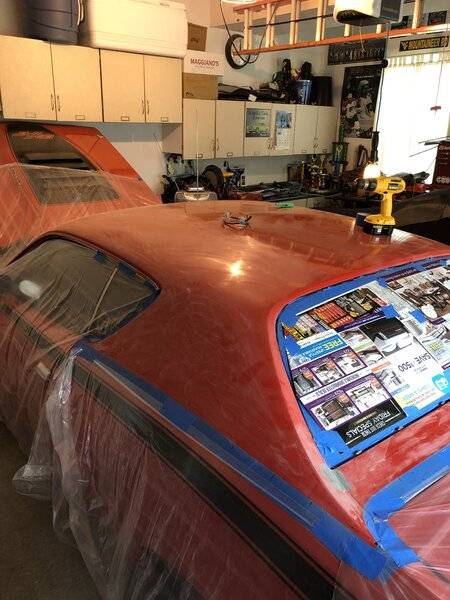

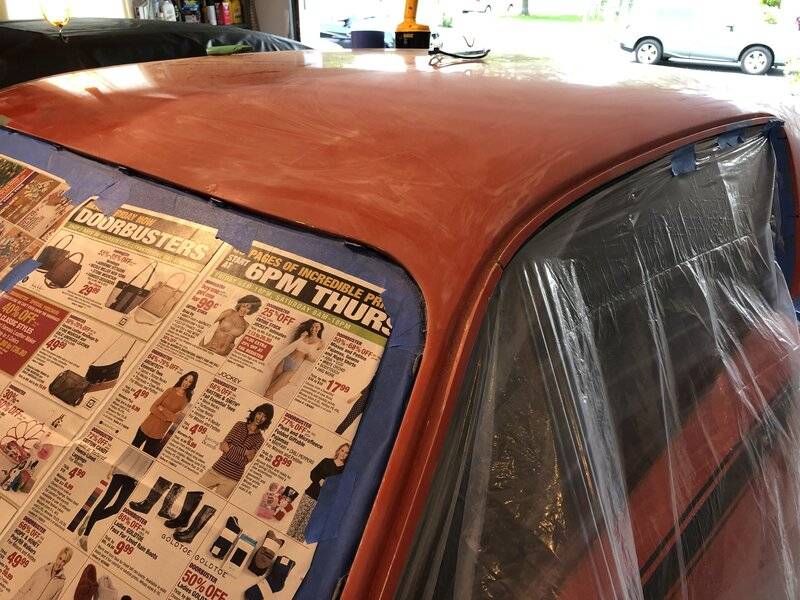

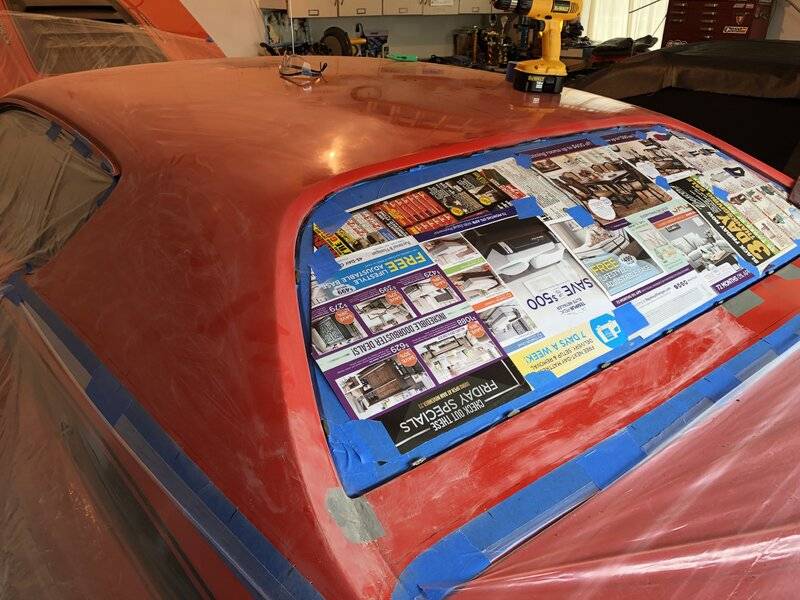

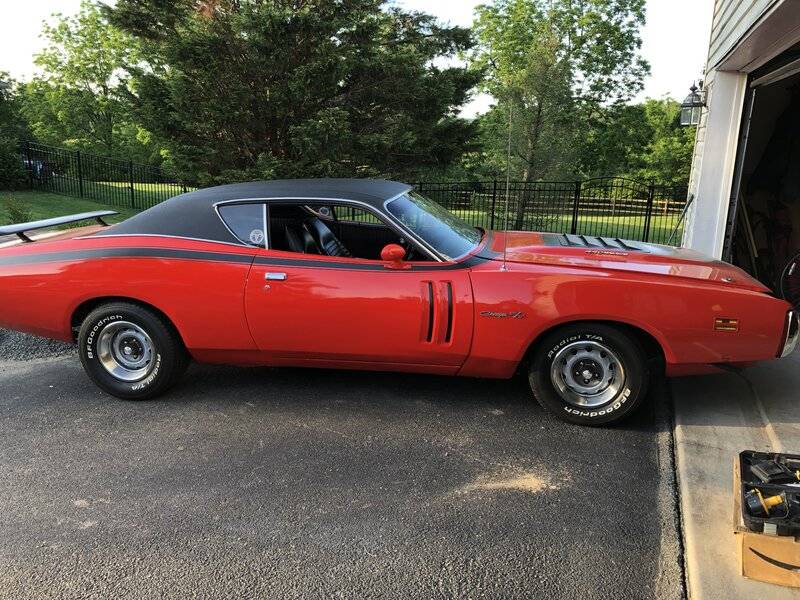

I put a top on mine a couple years ago. I didn’t have a lot to go on either. I found that laying it all out first was best and that the “pinned” holes on the check molding is the key. I did not have the dimensions and made some assumption on where all the “screw” pins were spaced.



[moparvinson]

Do the plastic clips slide over the screws like they do over the welded pins?



[RRGTX]

Yes
