1972 Charger Rally Dash ?

[67Sat]

I have a 1972 Charger that came with a 400, does not have a TIC Tach but does have a Speedo that goes to 150mph and has a in dash Tach. Can anyone help me with what the differences are from a rally dash , standard dash of a model that came with a TIC Tach clock and tach ?



[YY1]

No tic-tock tach in 72.

70 was the last year for that.

If you have a round speedo, you have a rally dash.

Standard dash has rectangle "sweep" speedo.



[Bb70charger500]

Yy1 is 100% right .

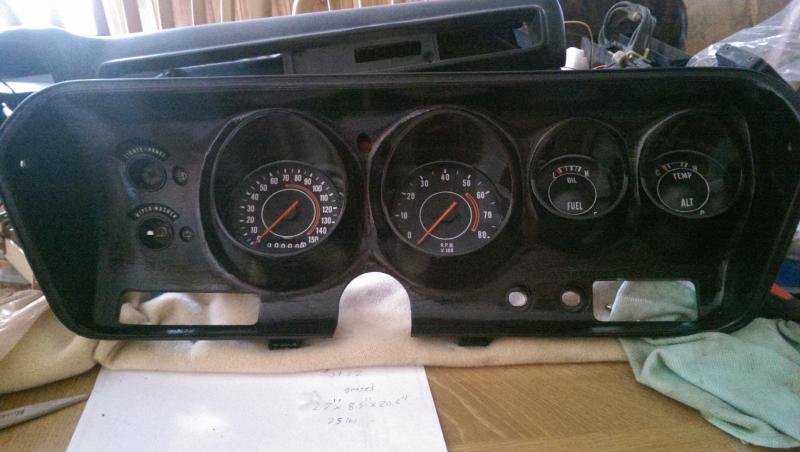

This is a rallye dash

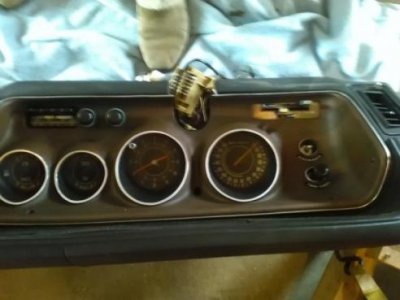

This particular one has a 150 Speedo with the clock (no tach)

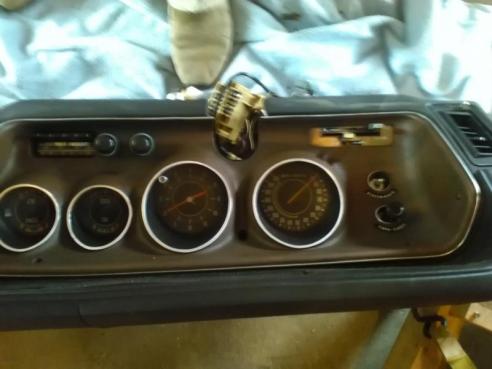

This one has the 150 Speedo and I added a tach to it .

if yours has a clock s tach can be switched in ,in replacement of the clock.
There's also another style where the spedo is ether 120 or 150 the next big pod has two small gauges in it then it the small pods to the right will have one each In those . In the setup with the clock or tach the two right side small pods will have two gauges in each pod .
Then of course you have the non rallye very plane it has some gauges at least 3 if your lucky but the difference is as stated above the long rectangle sweep Speedo only going up to 120 but..... It will keep climbing I've had one go all the way around and started knocking at 20 again.
Hopefully your ? Is answered if more is needed just ask
