416" Complete Balanced Rotating Assembly for 340 Block

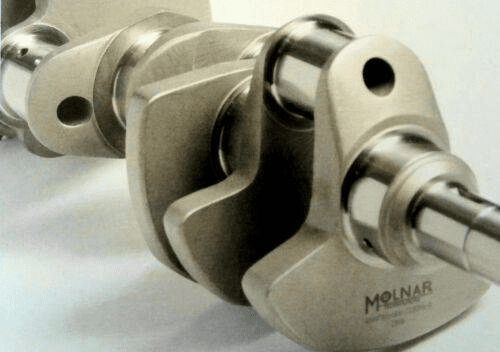

Molnar 4.000" Stroke 4340 Forged Steel Crank with 2.125" Rod Pins for 340 Main Block

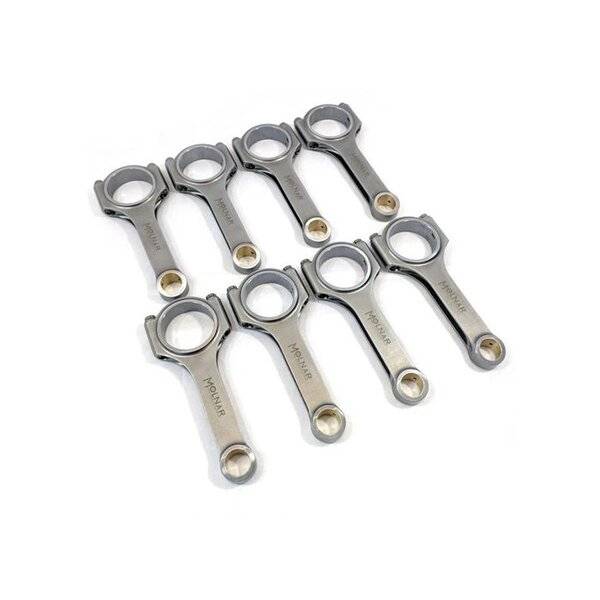

Molnar 6.123" 4340 H-Beam .984" Wrist Pins, Molnar Proprietary ARP2000 Rod Bolts
ICON Premium Series/ KTD .030" over pistons with Premium Rings. Your choice of dished, flat top, domed, to suit the compression ratio you want to accomplish.
Most pistons are also available in the following bore sizes. 4.00", (4.020" only available for domed), 4.030", 4.040", 4.060", 4.070", 4.080"
King CR805XPN Rod Bearings
King MB558XPC Coated Main Bearings
Please note: King now only offers 340 main bearings in the coated version. These cost double what the standard XP's did, so it has increased the kit price for the 340 engine only.
Balancing for Assembly - Molnar would balance all the components in house (Rods, Pistons, Crank). Internal Balanced (Neutral)
The total cost including all parts, balancing, and shipping is $3364.75
Please note that $211 of this price is the balancing cost and $221 is shipping cost for the 3-4 insured boxes it takes to send a complete rotating assembly.
Current lead time is 3-4 weeks before you would have it.
Just let me know if I can help you with a complete assembly or just a part of one.
I now only accept payment by PayPal Friends and Family, Bank Check, or Personal Check with time allowed for check clearance
Thanks,
Tom
Molnar 4.000" Stroke 4340 Forged Steel Crank with 2.125" Rod Pins for 340 Main Block
Molnar 6.123" 4340 H-Beam .984" Wrist Pins, Molnar Proprietary ARP2000 Rod Bolts
ICON Premium Series/ KTD .030" over pistons with Premium Rings. Your choice of dished, flat top, domed, to suit the compression ratio you want to accomplish.
Most pistons are also available in the following bore sizes. 4.00", (4.020" only available for domed), 4.030", 4.040", 4.060", 4.070", 4.080"
King CR805XPN Rod Bearings
King MB558XPC Coated Main Bearings
Please note: King now only offers 340 main bearings in the coated version. These cost double what the standard XP's did, so it has increased the kit price for the 340 engine only.
Balancing for Assembly - Molnar would balance all the components in house (Rods, Pistons, Crank). Internal Balanced (Neutral)
The total cost including all parts, balancing, and shipping is $3364.75
Please note that $211 of this price is the balancing cost and $221 is shipping cost for the 3-4 insured boxes it takes to send a complete rotating assembly.
Current lead time is 3-4 weeks before you would have it.
Just let me know if I can help you with a complete assembly or just a part of one.
I now only accept payment by PayPal Friends and Family, Bank Check, or Personal Check with time allowed for check clearance
Thanks,
Tom
