440 4-Speed Clutch - Weird Washer

[MoparHonda]

Just bought a '70 GTX with a 4-speed. I want to remove and grease the Z-bar (torsion shaft).

Pulled the access panel, the shaft coming from the clutch pedal has a weird lock washer where it connects to the Z-bar. Is this the correct washer from the factory? How can it be removed? Once removed, can it be re-installed?

View attachment 188395



[mattsmopars]

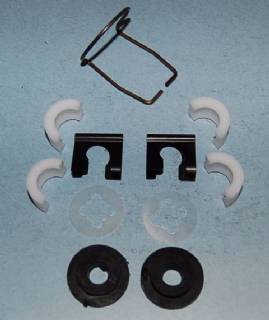

Looks like the wrong clip to me. Here are the correct clips and bushings if you need them. Brewers performance are very good company and people to deal with. http://brewersperformance.com/proddetail.asp?prod=CSK

Matt



[MoparHonda]

AH. Thank you. There's a clip like the one in your photo on the other end, the one that goes to the clutch fork.



[69Bee]

Some one did not have the proper clip, and used a clip that holds the emergency brake lever to the brake shoe.



[MoparHonda]

AH. So that's what that clip is from!

(I think the bushings are bad, which is making the clutch harder than normal to press, which is why I started looking at this.)
