Orange71SE
Well-Known Member

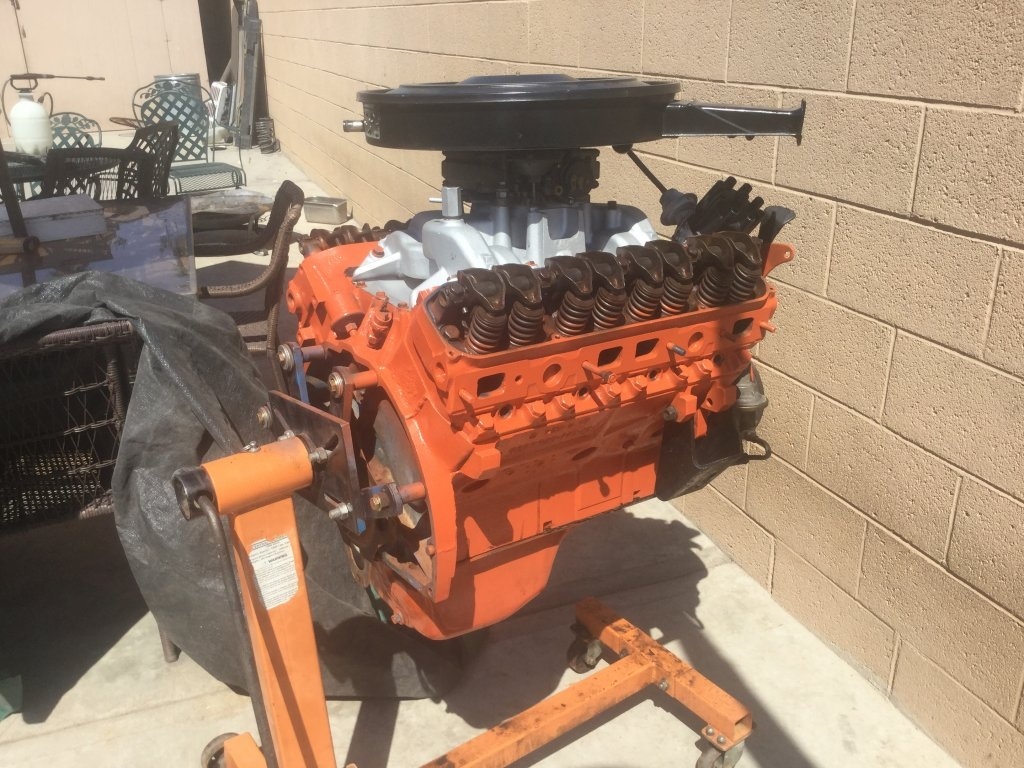

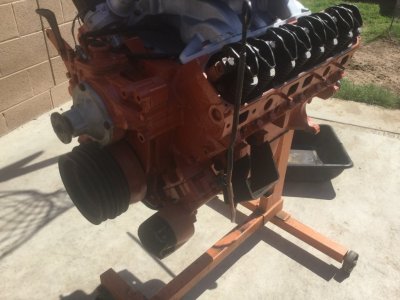

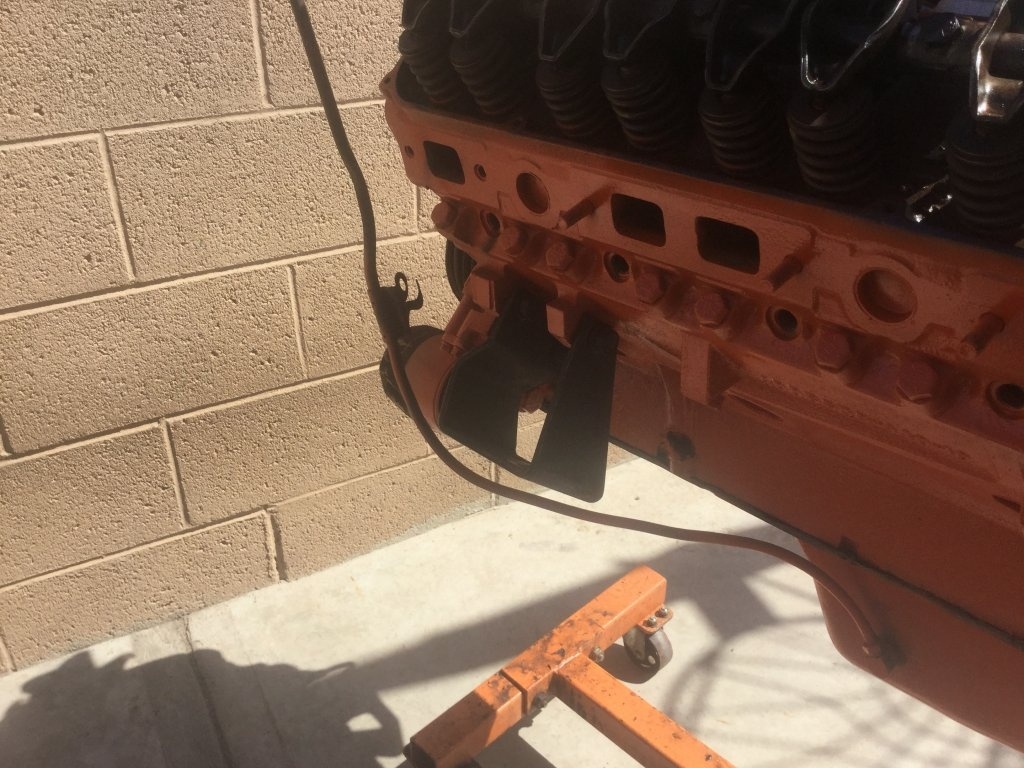

will these motor mounts on this 440 fit my 1971 charger? I currently have a 318. If thses motor mounts dont fit can someone direct me to te right ones.
440 motor mounts
- Thread starter Orange71SE
- Start date
66Satellite47
Well-Known Member
Check out the Engine, Trans, Driveline Forum Sticky Threads Big Block into SB. Should explain. Also 440 Source website - Engine Support area shows the motor mounts.
PurpleBeeper
Well-Known Member
I believe you will need "conversion motor mounts" if you want to put a 440 in where a 318 used to be and use the same k-member.... I think.
BLK 68 R/T
Well-Known Member
small block/big block k member is the same. The motor mounts you have on your motor look like maybe they are off a /6 or something? Here is a source for the mounts - http://www.engine-swaps.com/Pages/ProductsType/EngConvKits.html#head6
Part # BCEB
Part # BCEB
66Satellite47
Well-Known Member
Didn't look close enough. those mounts may be pre -'66. Been too many years since I have looked at them. I think '66 - '72 mount brackets that bolt to the block are the same, biscuits may be different. Look at Mancini too.
No those motor mounts won't work. They appear to be RV or Truck mounts tough to see in the pics as they are that style. Also that is a rear sump Truck oil pan and will not fit your 71 Charger either. I have the correct Big block motor mounts if needed.
Yatzee
Well-Known Member

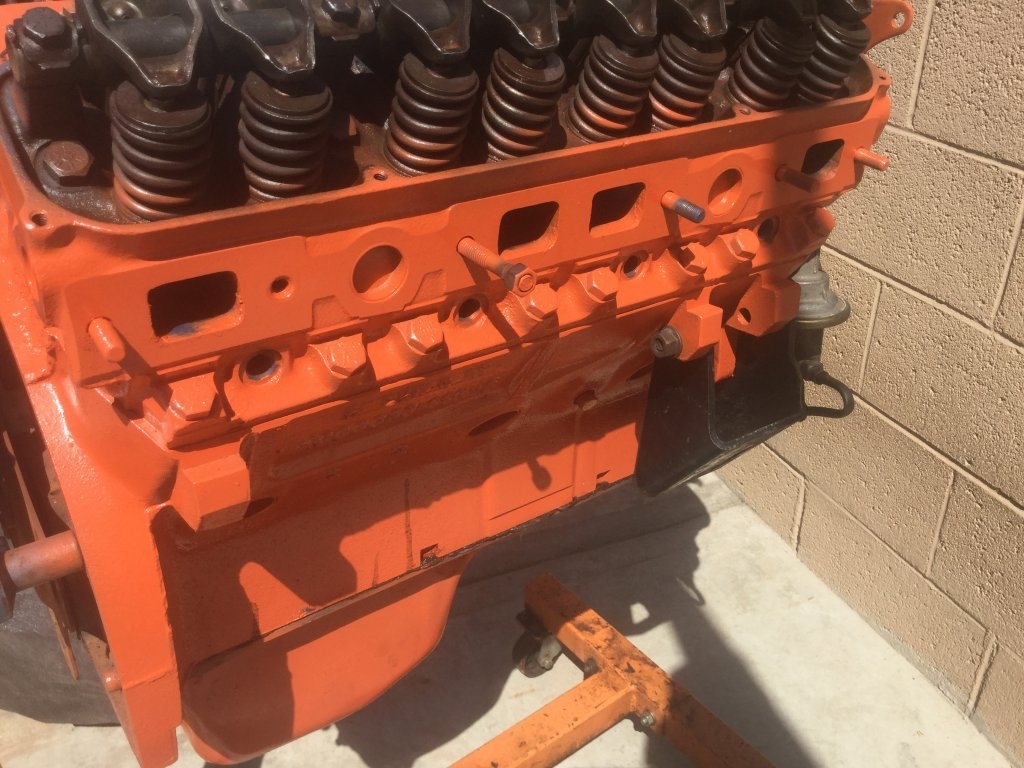

If you have two bosses on the front lower right side, you can use '65 motor mounts which are actually stronger because you use the bosses on the front of the engine as opposed to the ears on the side. Please post a pic of your K member so I can see the frame stand-offs for the mounts because my car was 318 to BB and only the mounts were changed as far as I know. You may actually have to weld a new set of stand-offs on the K member but the front bolt on ( provided you have the two bosses ) mount is preferable for engine torquing. It actually appears as if you have the mounts on the wrong side of the ears but then again the pics are hard to see.
You have what looks like an engine from a 4x4 truck. Don't throw the mounts or oil pan/dipstick away, they are still in demand in the truck world. There is also an aluminum plug where the car dipstick goes.
You will need motor mount brackets from a V8 66-72 B or C body or 70-74 E body. The rubber isolators are available everywhere for about $5. You need a center sump oil pan and pickup with a car dipstick.
You will also need a pre 1973 (66-72) water pump with an intake on the drivers side, or you will have to find a new radiator. With the earlier water pumps, you may run into fitment issues trying to use the later accessory brackets and pulleys.
You will need motor mount brackets from a V8 66-72 B or C body or 70-74 E body. The rubber isolators are available everywhere for about $5. You need a center sump oil pan and pickup with a car dipstick.
You will also need a pre 1973 (66-72) water pump with an intake on the drivers side, or you will have to find a new radiator. With the earlier water pumps, you may run into fitment issues trying to use the later accessory brackets and pulleys.
