440 RB pick up tube question

[Orange71SE]

I will soon be building a 440 block and want to order this oil pan kit http://www.manciniracing.com/ma8quoilpanp.html problem is that i dont know what pick sptube size to get? Anyone know?



[1967coronet440]

That’s a big pan, I would think a 3/8 pickup would be fine?



[moper]

The question is more around what oiling system you need for what you want the engine to do. That pan is a drag racing pan. It will be the lowest part of the car if street is in the cards. Just an FYI there. Talk more about the build and the pickup question can be decided.



[Fran Blacker]

3/8" is stock 440. 1/2" is Hemi size. Maybe a racer will tell if you can enlarge the 440 block to 1/2 for more oil?



[Orange71SE]

The car will definitely see street use as well as strip use. Not sure about clearance issues. Its basically a .40 or .60 over build ( depending on how the block cleans up) with doug d452 headers, e street edelbrock heads, victor intake and undecided about the cam yet.



[Orange71SE]

3/8" is stock 440. 1/2" is Hemi size. Maybe a racer will tell if you can enlarge the 440 block to 1/2 for more oil?

So stock 440 blocks all use a 3/8 pick up? Thats all i needed to know. Thanks



[moper]

...and the build will be fine with the factory size 3/8 pickup.



[Fran Blacker]

Why such a large pan?



[Orange71SE]

Why such a large pan?

Would a 6 quart pan seem more suitable for street/strip use?



[1967coronet440]

Would a 6 quart pan seem more suitable for street/strip used?

I used a milodon 7qt pan and pick up for my street strip build. An 8qt will hang pretty low.



[moper]

Use a Hemi/six pack style pan. You really don't want a drag racing pan on a street car. Plus and more importantly you don't need it.



[Orange71SE]

Use a Hemi/six pack style pan. You really don't want a drag racing pan on a street car. Plus and more importantly you don't need it.

Do you think maybe this will be more suitable for my application? http://www.manciniracing.com/ststheoilpa61.html



[1967coronet440]

Do you think maybe this will be more suitable for my application? http://www.manciniracing.com/ststheoilpa61.html

Yes you’d probaly be better off with 6-7qt pan



[Fran Blacker]

Pricey . I used this pan. It hangs about 1.5 To 2" below k frame.

https://www.summitracing.com/parts/mil-30930/overview/



[1967coronet440]

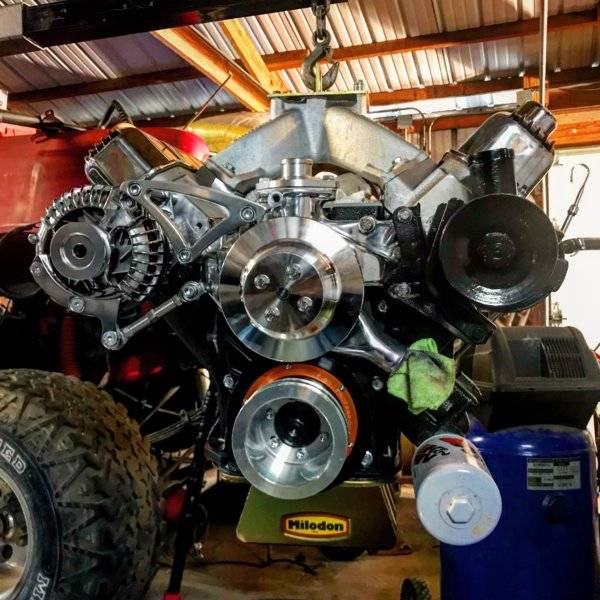

Same pan I have, along with this pick up

https://www.summitracing.com/parts/mil-18325



[MOPOWER871]

Pro Touring -
PRO TOURING -
STOCK CHASSIS and STEERING
Designed for high horsepower cars that are very low. Cars with big cubic inches, big tires and improved suspension make this pan a necessity.

A stock location sump pan for use in stock Chrysler B & E body chassis. Wide sump increases capacity yet allows ample ground clearance. Fully baffled for competition use. Stock steering will not interfere with this pan.

Pan Capacity is 7 Qts. Plus Filter
5 1/2" Sump Depth
383-440 31580
Oil Pump and Pick-Up Required:

Pickup, 3/8" Pipe Inlet 18328
Pickup, 1/2" Pipe Inlet 18338
Billet Oil Pump, Milodon 21814
Steel Oil Pump, Melling M63HV
Oil Pan Gasket 40700
Oil Pump Shaft (either of these) 21505
21525
Windage Tray 32000
Windage Tray, up to 3/4" Stroker 32006
Dipstick, Billet Stainless Steel 22070
Pan Bolts 85020
Pan Studs 81320



[65Fury440]

X2 on that Milodon pan



[Fran Blacker]

Pro Touring -
PRO TOURING -
STOCK CHASSIS and STEERING
Designed for high horsepower cars that are very low. Cars with big cubic inches, big tires and improved suspension make this pan a necessity.

A stock location sump pan for use in stock Chrysler B & E body chassis. Wide sump increases capacity yet allows ample ground clearance. Fully baffled for competition use. Stock steering will not interfere with this pan.

Pan Capacity is 7 Qts. Plus Filter
5 1/2" Sump Depth
383-440 31580
Oil Pump and Pick-Up Required:

Pickup, 3/8" Pipe Inlet 18328
Pickup, 1/2" Pipe Inlet 18338
Billet Oil Pump, Milodon 21814
Steel Oil Pump, Melling M63HV
Oil Pan Gasket 40700
Oil Pump Shaft (either of these) 21505
21525
Windage Tray 32000
Windage Tray, up to 3/4" Stroker 32006
Dipstick, Billet Stainless Steel 22070
Pan Bolts 85020
Pan Studs 81320

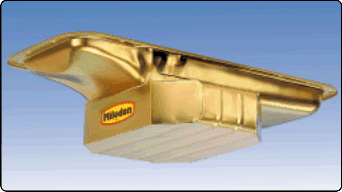

View attachment 565514

Nice pan. A lot pricey! $450 ! Skid plate time.



[threewood]

Christ on a crutch!! Vendors are very proud of stamped steel pans!!!

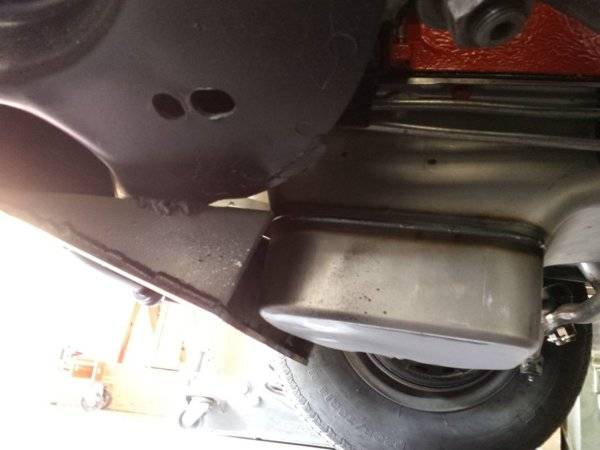

I used this one and it works perfect. It does hang a bit low but no problems after attaching a hemi style skid plate.
https://www.ebay.com/itm/BB-Mopar-7...-413-440-RB-/251479353558?hash=item3a8d5668d6



[65Fury440]

That oughta work, nice price.
