440 Rocker arm shaft bolts?

Auggie56

FBBO Gold Member
FBBO Gold Member
Local time
6:41 PM
Joined
Nov 14, 2011
Messages
9,180
Reaction score
18,780
Location
NW Ohio
Of the five bolts the hold the shafts to the heads two are longer than the other three. Just where do they go?

Many thanks

Into the second stand that has the oil galley from the block

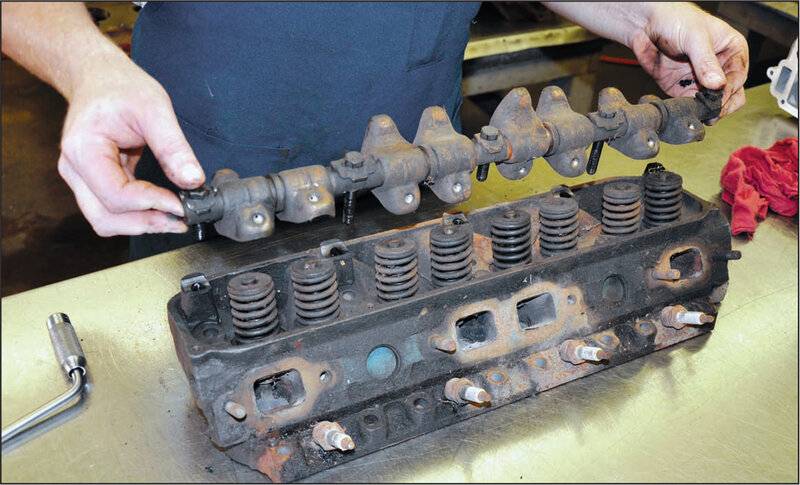

As shown...... #2 & #4 hole..... so not the end holes & not the middle hole, but the other two holes is where the long bolts go

Forgot to add that the long bolts will not screw down in the short bolt holes as they are not tapped down as deep so you would figure it out when you did.
