FOR SALE 489 Center Section 3.23 Sure Grip

[nstyle73]

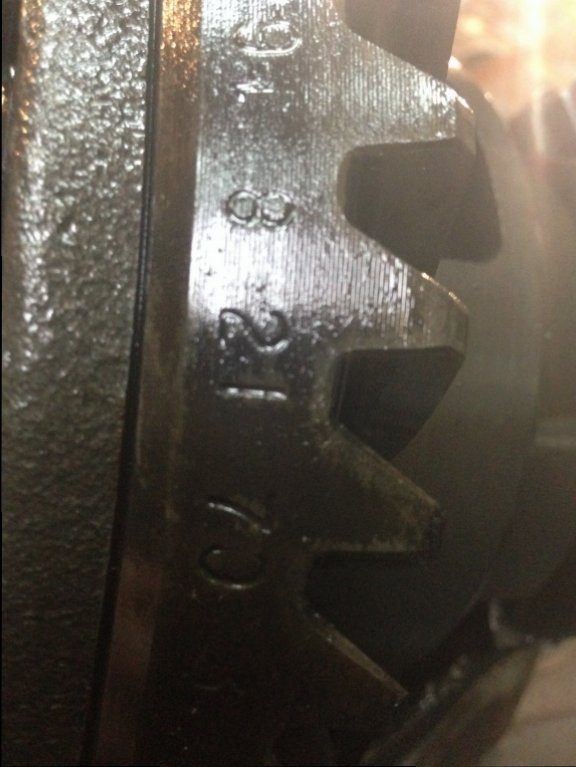

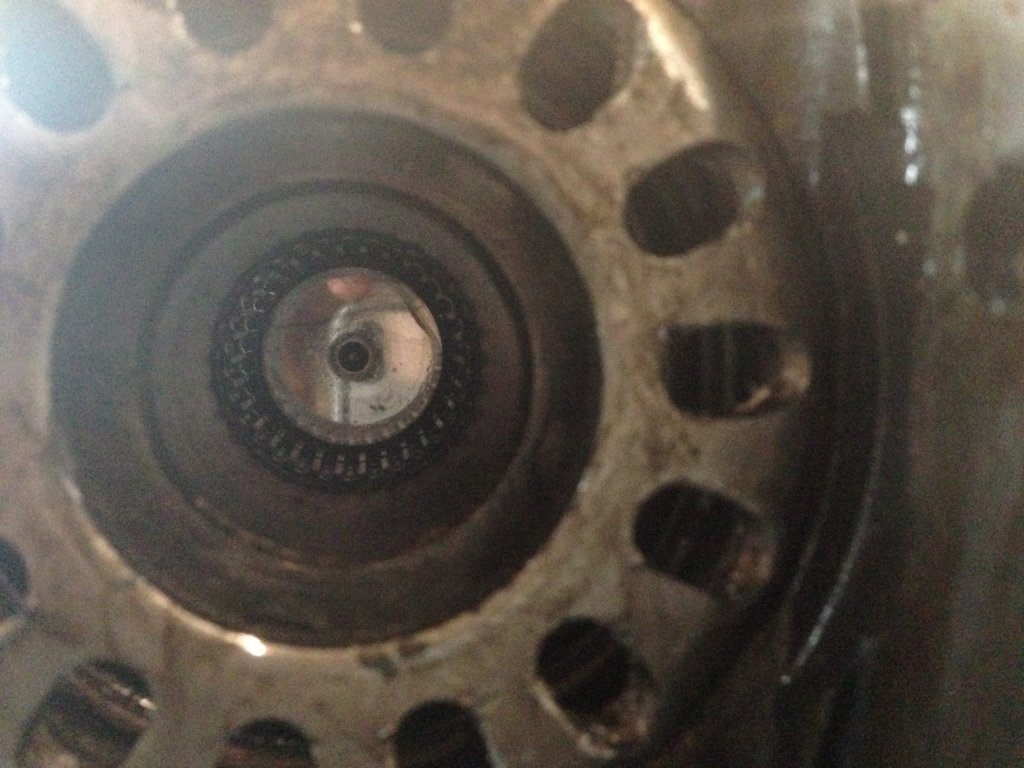

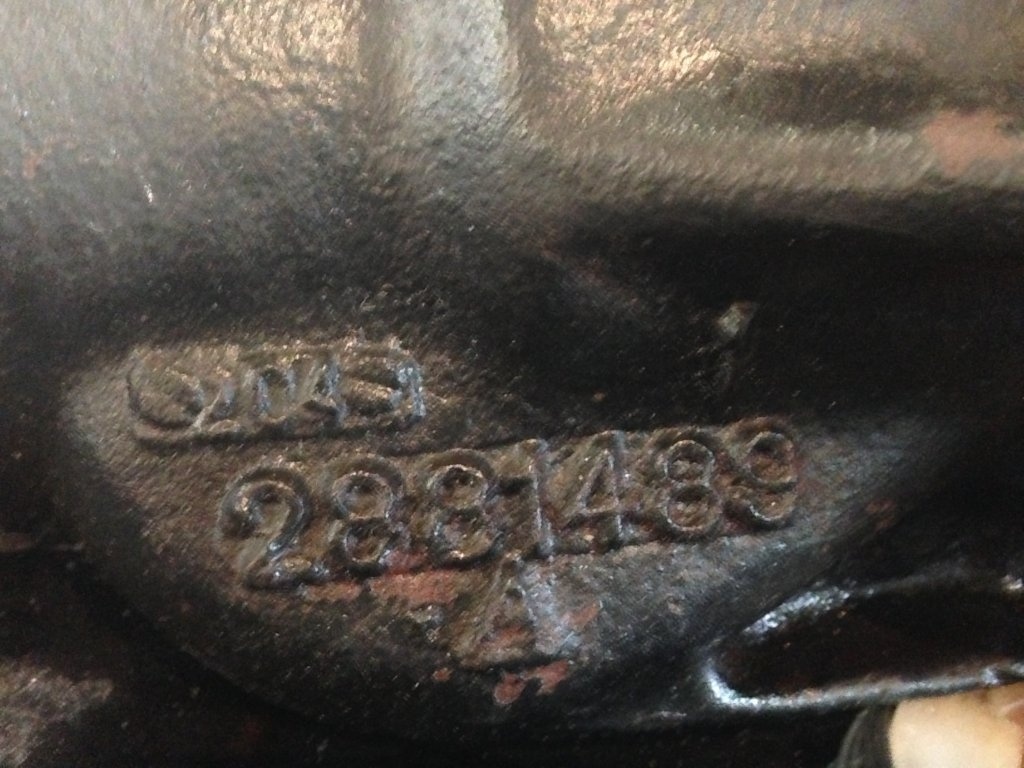

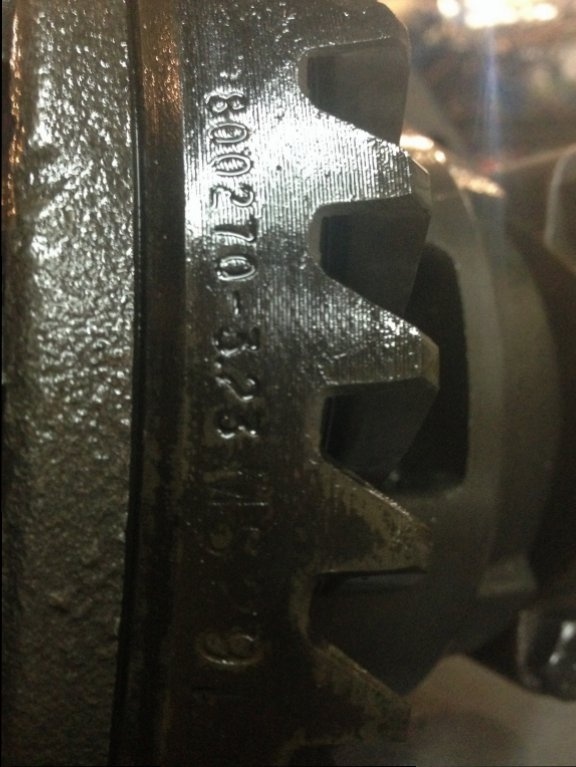

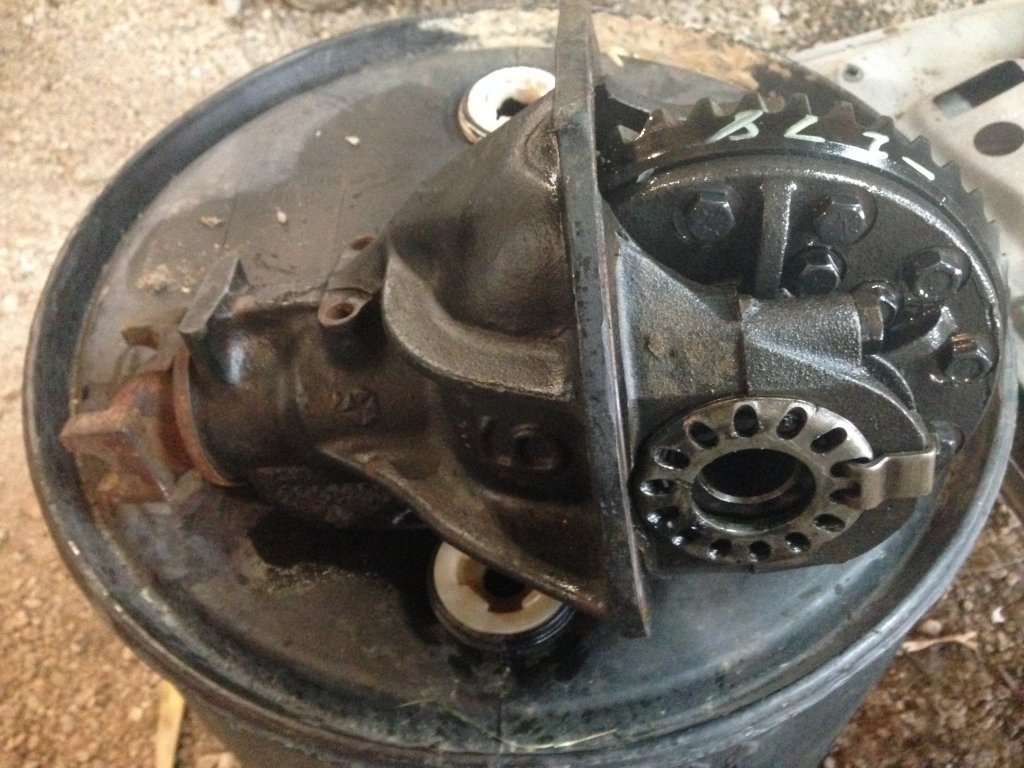

This is a center section from a donor car that I purchased. 489 case, 3.23 Sure Grip. The gears are date coded 8-21-70 and were removed from a '71 so I believe these to be the original gears and Sure Grip. The car was a roller and I never drove it before sourcing the parts I needed. Pinion snubber threads are good as are the U-joint retainer bolt threads. 7290 Yoke (2 5/8" Inside, 1 1/8" caps) Gears turn freely and there appears to be no damage to any of the teeth. Asking $400 plus shipping from 62420



[moparjohnny]

This is a center section from a donor car that I purchased. 489 case, 3.23 Sure Grip. The gears are date coded 8-21-70 and were removed from a '71 so I believe these to be the original gears and Sure Grip. The car was a roller and I never drove it before sourcing the parts I needed. Pinion snubber threads are good as are the U-joint retainer bolt threads. 7290 Yoke (2 5/8" Inside, 1 1/8" caps) Gears turn freely and there appears to be no damage to any of the teeth. Asking $400 plus shipping from 62420

View attachment 411344 View attachment 411350 View attachment 411351 View attachment 411354 View attachment 411356 View attachment 411357

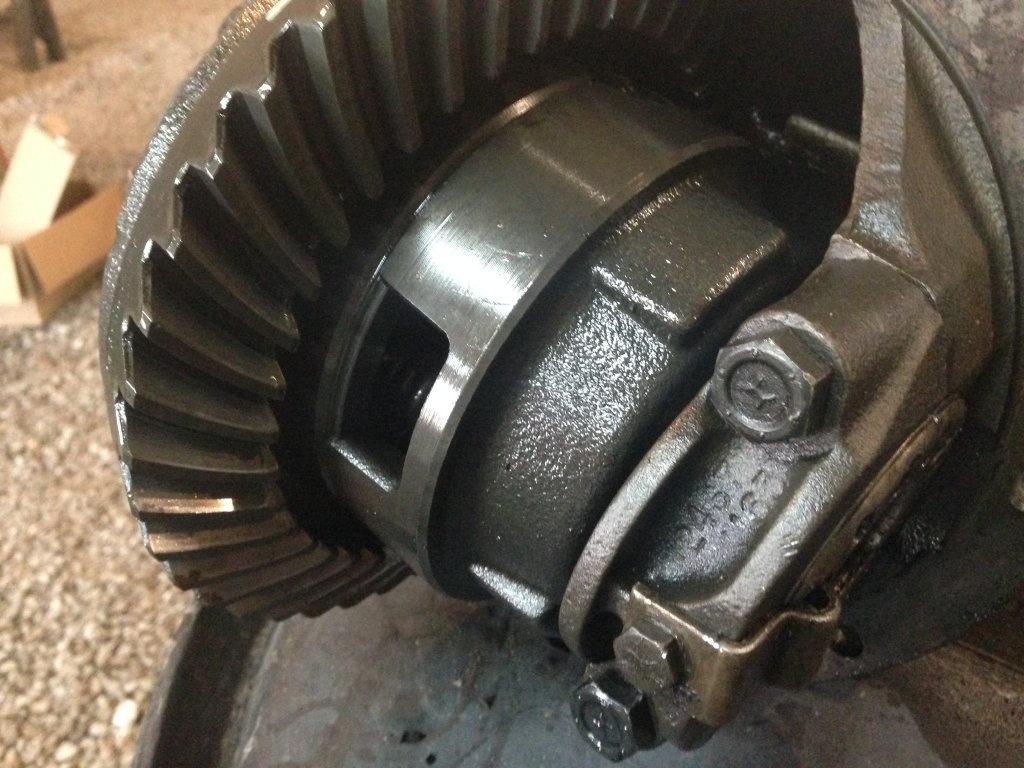

cone or clutch?



[rakort]

cone or clutch?

clearly cone if you look close and clearly cone based on original 70 ish origin/489....roll of the dice if the cone is good.



[nstyle73]

Yes cone as stated above for all of those reasons. I do not know of a good way to test without actually installing in a car or disassembling.



[rakort]

I do not know of a good way to test without actually installing in a car or disassembling.

You can actually clamp an axle in a vice, slip the diff on, stick an axle on the top side and reef it around with a pipe wrench. It should turn pretty hard.



[wannadrag]

Interested,pm sent



[nstyle73]

I had read about the axles, but did not know exactly what result to expect when I turned it. I Will try tomorrow.



[tahiti190]

$325 plus shipping to 48843?
