SOLD 500 stroker pistons 440Source #5093 NEW

[Outlaw525]

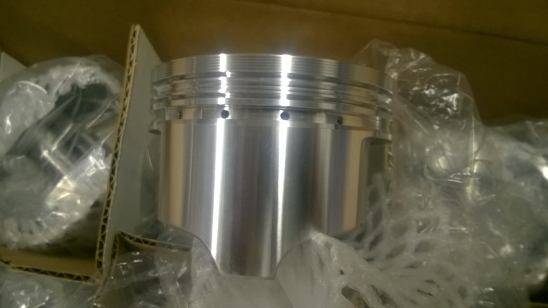

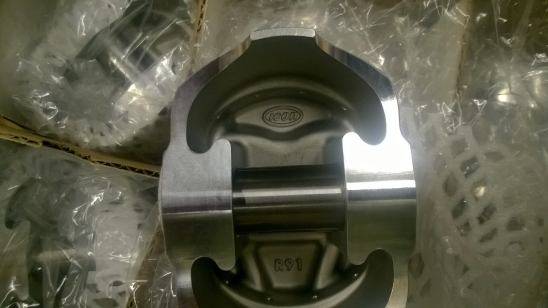

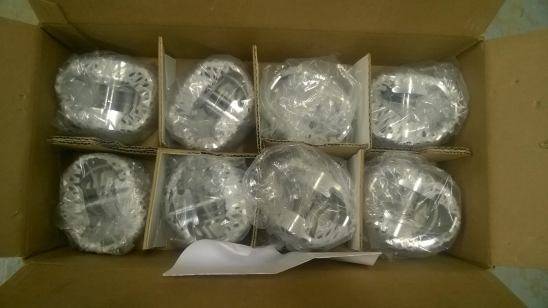

Forged, .030 over for 440 block, made by Icon. New in box w/pins and clips, I ended up needing .060. My loss. $599 new. Will sell for $400 plus shipping. Can do Paypal. PM if interested Thanks

From 440Source website:
These pistons are a 4.350" (.030 over) bore flat top piston which will work in a 440 block with 4.15" stroke and 6.76" rod "500CI" stroker combination. All our platinum pistons use 1/16, 1/16, 3/16 ring pack for less frictional loss, and weight saving, full floating .990 pin size. Our table below lists detailed compression ratios:
Bore Size: Dish (-) or Dome (+) CC's Compression Height: Distance Below Deck: 65CC 72CC 75CC 78CC 84CC 86CC 88CC P

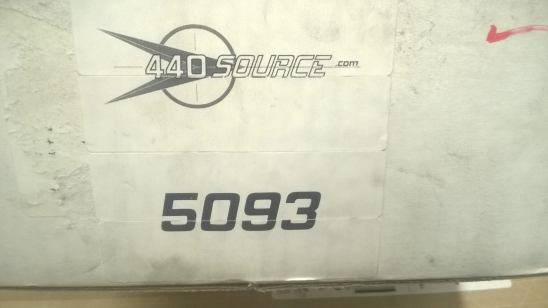

Part#: 5093
Bore Size: 4.350 (.030 over)
Dish -4 (FT) CC's
Compression Height: 1.867"
Distance Below Deck: -.018"
Compression ratios:
65CC 13.09, 72CC 12.16, 75CC 11.80, 78CC 11.47, 84CC 10.85, 86CC 10.67, 88CC 10.48



[Outlaw525]



[Garys1969RR]

What are the specs on Those? C HEIGHT mainly, and weight. And they are total flat tops, right? Do you know the valve notch volume?



[5.7 hemi]

He listed all the specs from 440SOURCE. If there’s something specific your looking for, might be worth a phone call.



[Outlaw525]

What are the specs on Those? C HEIGHT mainly, and weight. And they are total flat tops, right? Do you know the valve notch volume?

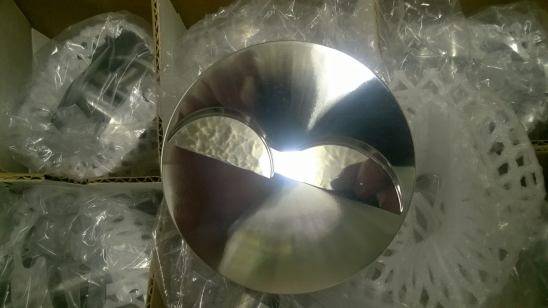

Flat top, valve reliefs -4 CC's
Compression Height: 1.867"
Weight: piston 651 grams, w.pin 141 grams

Thanks



[Outlaw525]

Price drop $375 plus shipping



[Garys1969RR]

Those are nice pistons, I need some that will work with the 3.75 stroke crankshaft. C Height needs to be about 2.067 for mine.



[Outlaw525]

$350 plus shipping These are new in the box.



[Outlaw525]

Still available $340 plus shipping.



[Dartn440]

Pm sent
