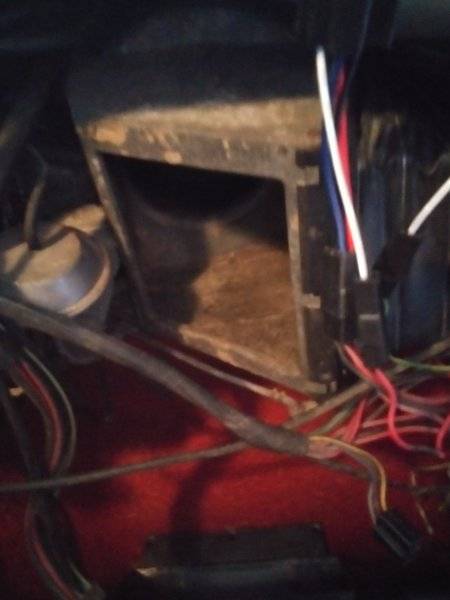

Looking for a part or picture of the cover for heater air unit. This is on the front end under glove box of unit. What covers the hole on the front? All i see is the fan inside. No cover About a 9" sq opening showing. Need some help.



[LowBikeMike]

The fresh air door swings to close off cabin air. The door is blocking fresh air off in your picture. Its attached to arm and vacuum actuator in your picture



[the-chrome-guy]

The fresh air door swings to close off cabin air. The door is blocking fresh air off in your picture. Its attached to arm and vacuum actuator in your picture

Where is the door? Its just an opening.How does it close??



[Sam69sat]

Here's a page with a 70 ac box (similar design) where you can see the door/flap. It's controlled by the vacuum actuator and arm with the blue arrow. X marks the door/flap inside that opening. I don't belive there is a cover on the front opening.

1968-1970 B-body Mopar Heater Box with A/C Rebuild

Photos and descriptions of how to rebuild a 68-70 B-Body Mopar Heater Box with Air Conditioning

blog.drivenrestorations.com



[Sam69sat]

Another picture with the door.



[the-chrome-guy]

thanks that helps. Still does not seem right.



[Mike Beaudoin]

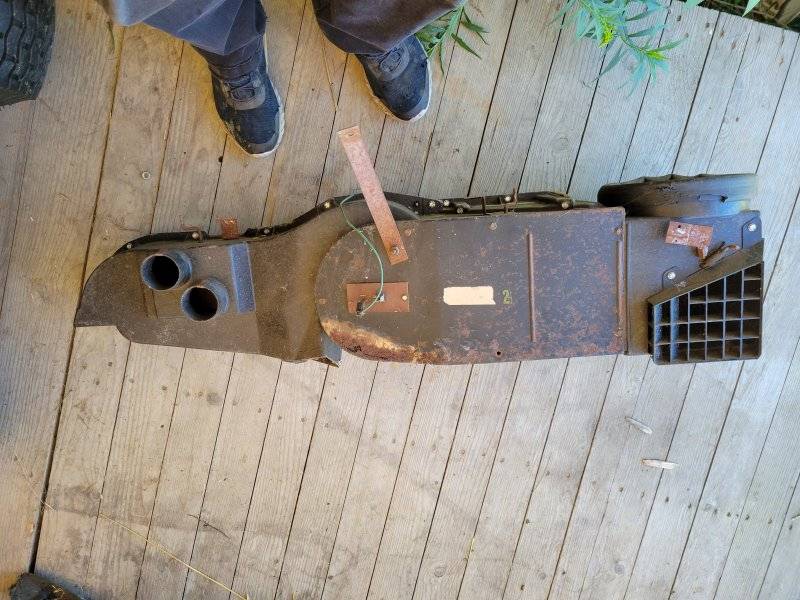

I can not make out from you picture the location that you are talking about but here is pics of a box out of the car.



[AR67GTX]

That is a non-AC box. Now you are going to make me go out to the garage to look at mine to refresh the memory.



[gtx6970]

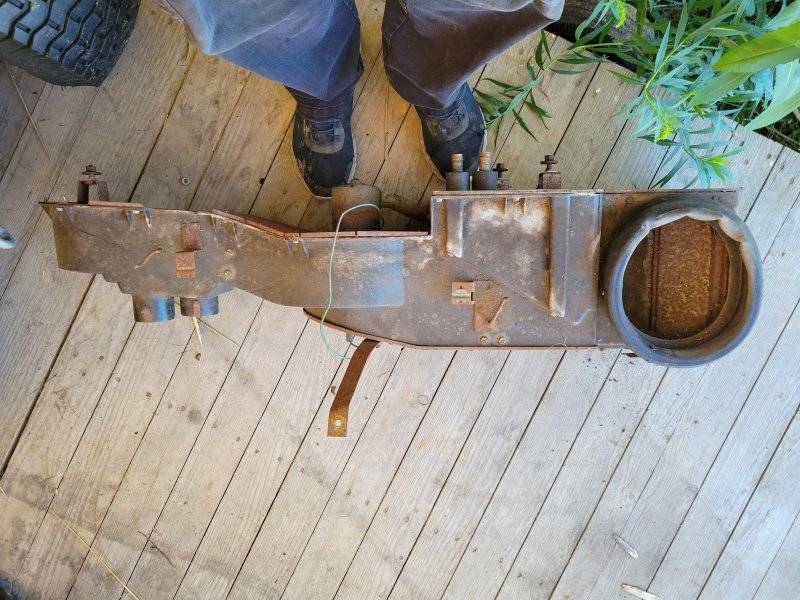

I can not make out from you picture the location that you are talking about but here is pics of a box out of the car.View attachment 1334010

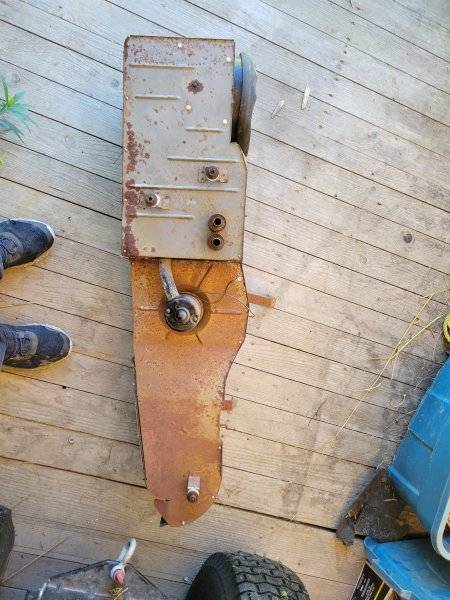

View attachment 1334011

View attachment 1334012

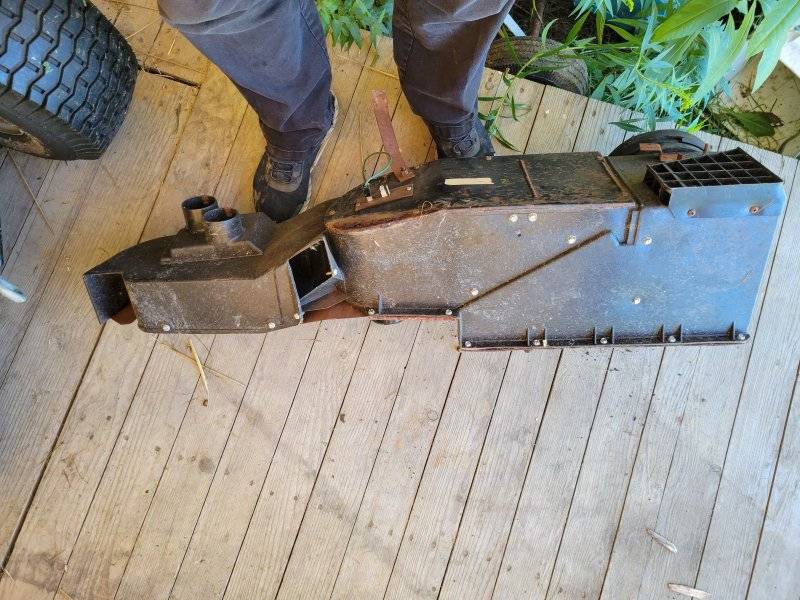

View attachment 1334013

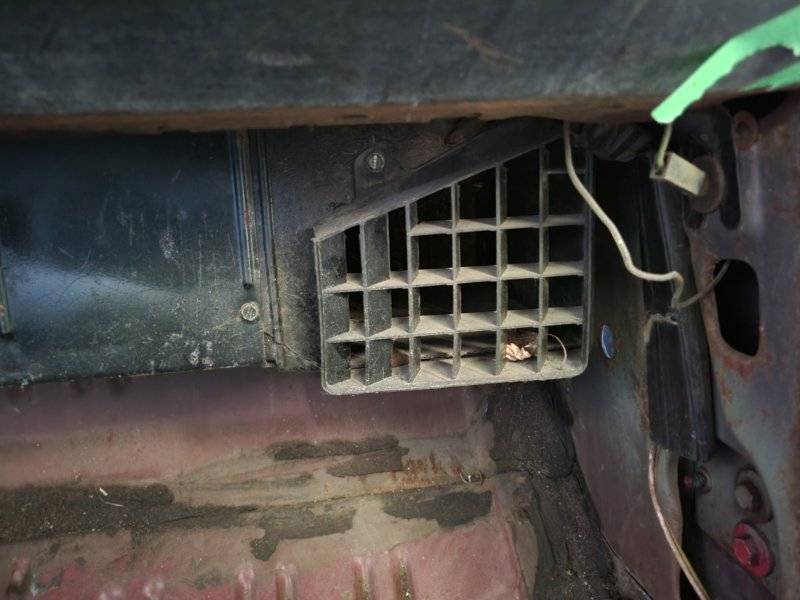

View attachment 1334014

Thats a non air box



[AR67GTX]

That was of little help - I forgot about the outer housing and cover with the right under-dash vent. Here is a drawing out of the service manual but I agree with Sam69Sat - I don’t remember a grill on mine either - just the opening to recirculate air With the vacuum operated door.



[joerachet]

Is it this one?



[the-chrome-guy]

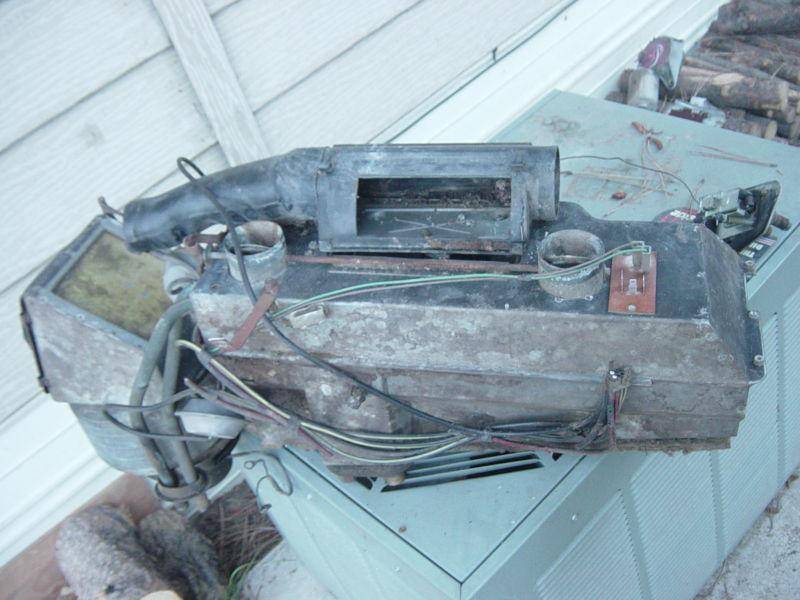

Another picture with the door.

View attachment 1330296
