67 Coronet Console Lid attachment (4 spd console if that matters)

[pwm72]

Would anyone have a picture of the hardware used to attach the console lid to the hinge? My car was in pieces and I can't see to find what kind of nuts are used as the studs on the lid itself don't seem to be threaded in the traditional way. I would appreciate it.



[AR67GTX]

I think sheet metal nuts might have been used originally.

Mopar PAL Nuts- Fits 1/8" Studs- Emblem Trim Chrome Interior etc- 50 nuts- #087F | eBay

New thread cutting PAL nuts. Fits 1/8" studs. 5/16" hex. Silver zinc finish.

www.ebay.com

But on original console doors often the studs are too worn to secure with the sheet metal nuts and you may have to use a small nut that can be threaded on to the stud.



[pwm72]

I think sheet metal nuts might have been used originally.

http://[URL]https://www.ebay.com/it...MWpgS-4wlNecWOBYWANwGln501Ih6jjTFp3TNMoPCttak

[/URL]


But on original console doors often the studs are too worn to secure with the sheet metal nuts and you may have to use a small nut that can be threaded on to the stud.

perfect, thank you!



[pa383mopar]

I believe they were this style acorn nut. As AR67GTX said, they are often stripped though.

1966 67 68 69 70 Plymouth Dodge NOS MoPar Console Lid HINGE ACORN NUT Set of 5 | eBay

NOS MoPar acorn nuts, set of 5, for the floor console lid hinge on 1966, 1967, 1968, 1969, and 1970 Plymouth and Dodge B and C-body cars. Correct "PAL" marking on side, one set of 5 used per car.

www.ebay.com



[Fran Blacker]

I think sheet metal nuts might have been used originally.

http://[URL]https://www.ebay.com/it...MWpgS-4wlNecWOBYWANwGln501Ih6jjTFp3TNMoPCttak

[/URL]


But on original console doors often the studs are too worn to secure with the sheet metal nuts and you may have to use a small nut that can be threaded on to the stud.

Those aren't the ones. Original look like sheet metal acorn nuts. On top you'll pie segments to make a dome.



[Fran Blacker]

like these Pal Acorn Nuts for sale | eBay



[Fran Blacker]

like these Pal Acorn Nuts for sale | eBay

Thanks AR67GTX didn't know the name pal nuts



[copper67sat]

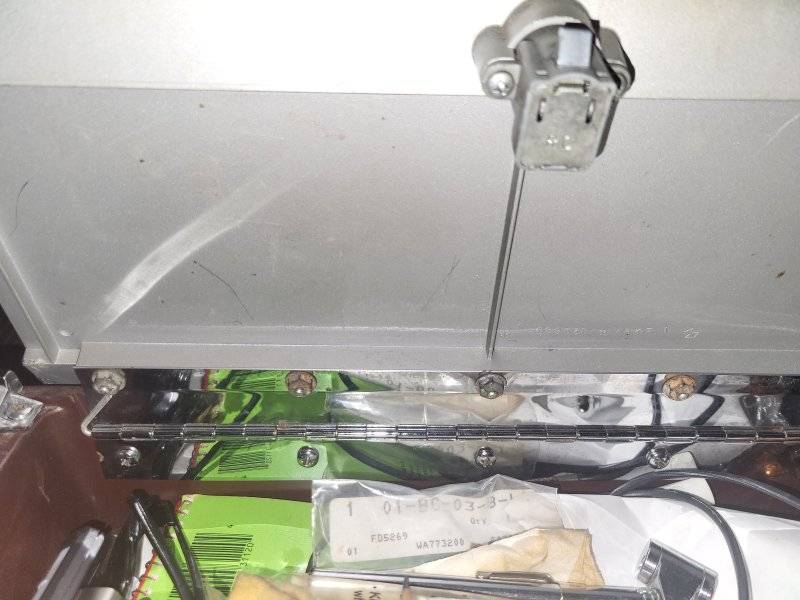

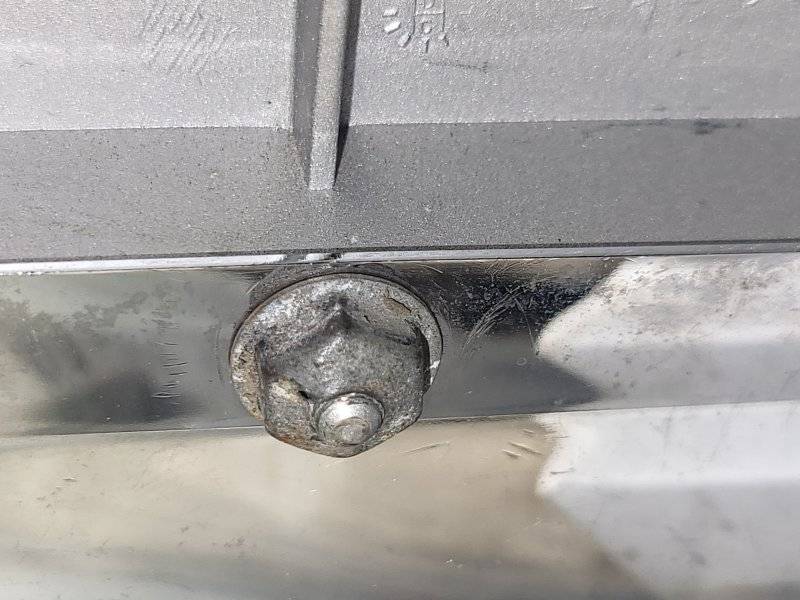

I thought they were acorn nuts until I went out to the garage. My 67 Satellite has these which look very similar to the ones AR67GTX posted.

Pretty sure they are original since the car had never been apart before me, but I've only owned it 37 of its 57 years so I don't know everything done in it's first 20. I don't think I've ever taken them off even though I've taken the console out a couple of times. Never had a reason to remove the door from the hinge.



[AR67GTX]

I have not run across the pal nuts before on the console plate but that’s not too surprising as I haven’t owned but a few. Almost all of these cars have been messed with over the years. Possibly it varied from assembly plant to assembly plant or whatever the parts vendors were offering at any particular time.

The acorn or pal nuts probably do work better as the thread cutting area is at the bottom instead of the head of the nut so it threads further down the stud.



[RemCharger]

I've only seen the chrome acorns, likely they are to keep you from scratching your hand up on the studs
