68 Runner dash pad removal

[spiros]

Hey, i need to take off the dash pad to paint it can some one tell me how to go about it,thanks

spiro



[warwagons2]

There are nuts behind the pad to remove. Just feel for them and use a long extension.
Its a back breaking & hand scratching P.I.A. Have fun.



[detmatt1]

One of those really long, flexible extensions will help. I can check in my shop later to see what size socket and how many/ where those fasteners are to help take some guesswork out of it for you.Feel free to give me a call at 248-343-5301 if I haven't gotten back to you on this before you are ready to start.



[spiros]

One of those really long, flexible extensions will help. I can check in my shop later to see what size socket and how many/ where those fasteners are to help take some guesswork out of it for you.Feel free to give me a call at 248-343-5301 if I haven't gotten back to you on this before you are ready to start.

let me know step by step thanks



[hunt2elk]

I think the nuts are 3/8". I found the best tool was a 1/4" drive socket with a 4" long flex extension followed by different lenghths of extensions for each individual one. You will have to do this by feel and use some dum-dum in the socket when reinstalling to hold the nut. It's not as hard as it sounds, but you will have to remove the radio and loosen the heater control.



[detmatt1]

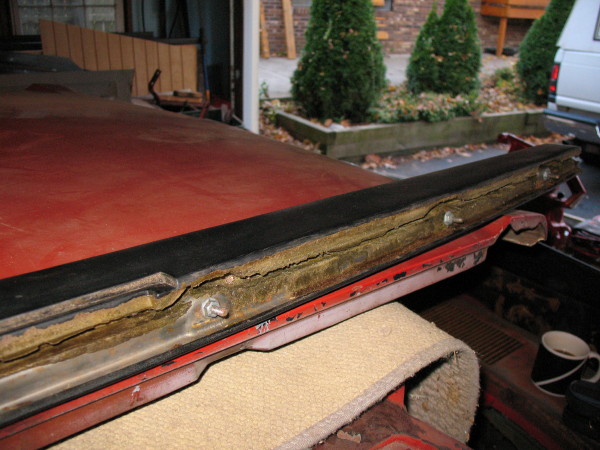

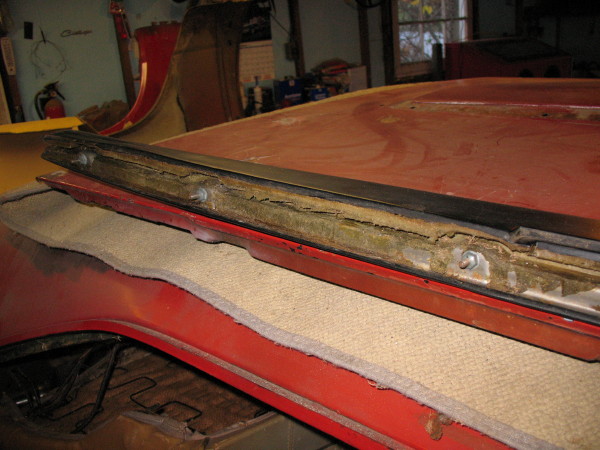

There are 6 3/8's nuts on the backside, 1 on either side of the heat controls, 1 at each end a couple of inches in from end and 1 each side at the middle.
This should help.



[detmatt1]

Bump for spiros.
