69 gtx side trim and emblems

[FURYDAVE]

Hi all,
Does any have any pics or measurements where the side trim sits above the body line on a 69 gtx. I have all the metro repo trim and clips but want it to sit exact where it should be . Also the measurement where the gtx emeblem sits on the quarter panel. Any help would be appreciated.
Don't thow rocks cloneing a sport satellite. I know I'm bad.

Thanks!



[FURYDAVE]

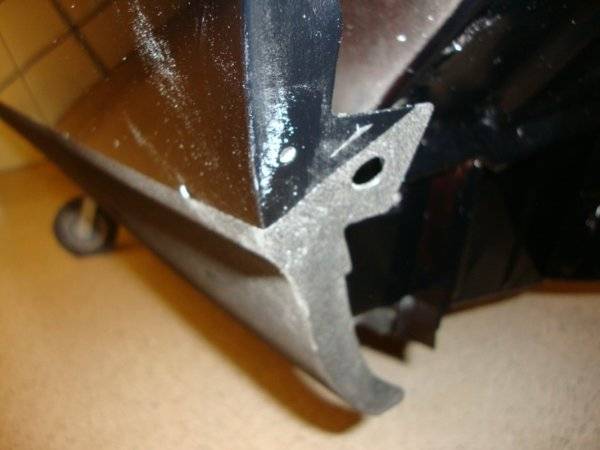

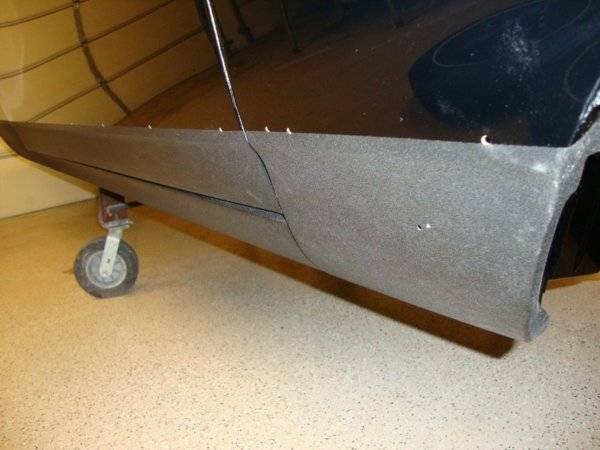

Bump. Got lower rockers holes welded and rockers sanded if any one can take a quick measurement would be greatly appreciated. Dont want to sand above body line until I know. Want it to look right Thanks!



[droptop]

The trim follows the body line and the 1/4" reflective (red or white) stripe goes 1/4" below that. Remember when drilling holes for the side emblem, they are not in the same location on both sides. One is farther back than the other.



[FURYDAVE]

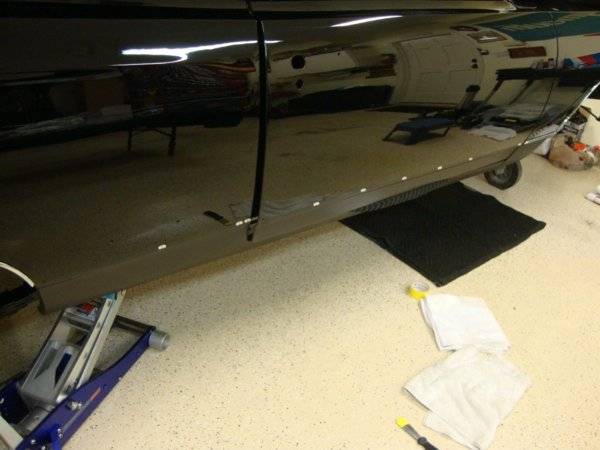

Looking at different pics its seems to be above the line not on it. Look at member moparnation74s resto (see pics below) It is well above, if you put the trim directly above the line it is too long. There has to be a space. Distance between the hole and the line



[droptop]

My car is currently in paint jail, but am going to check on progress on Sunday. The holes are above the body line, but IIRC, the bottom of the trim is right on the body line. I will measure distance from the center of the hole down to the body line and let you know.



[69 GTX]

I think I have measurements for the GTX emblem



[FURYDAVE]

Thanks drop top.

69gtx if you had measurements would be awesome!



[69 GTX]

I'm looking but not finding it. I'll keep looking.



[threewood]

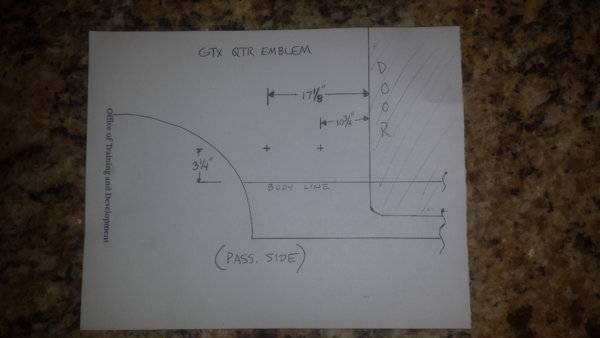

This is taken from my GTX before I cut the old quarters out. The driver side is different as the emblem studs are offset. But with this and the emblems you can figure out for the driver side.



[69 GTX]

Yep that's what I was looking for!



[FURYDAVE]

Thank you so much threewood! Now to find the trim measurement and I'm golden



[FURYDAVE]

Holes are drilled got it all figured out thanks again everyone



[JakeMA33]

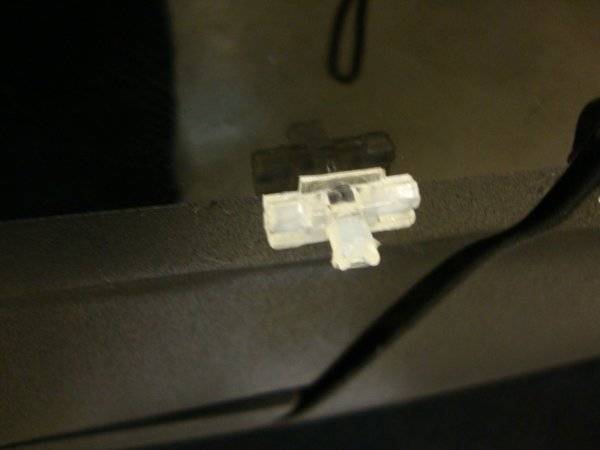

Does anyone know a vendor that currently carries the side moulding clips? It looks like there are two different clip types used along with teh acorn nuts. THanks -Jake



[droptop]

Does anyone know a vendor that currently carries the side moulding clips? It looks like there are two different clip types used along with teh acorn nuts. THanks -Jake

I bought the set from R/T Specialty. Have not installed them yet but expect to very shortly.



[69 GTX]

Try Richard, 69beefan
