70 Rallye Dash Cluster Light Question

[roadrunner57]

So I have the brake warning light and the signal light lights correct I do believe. Now I have 3 lights on orange wires but have four holes.

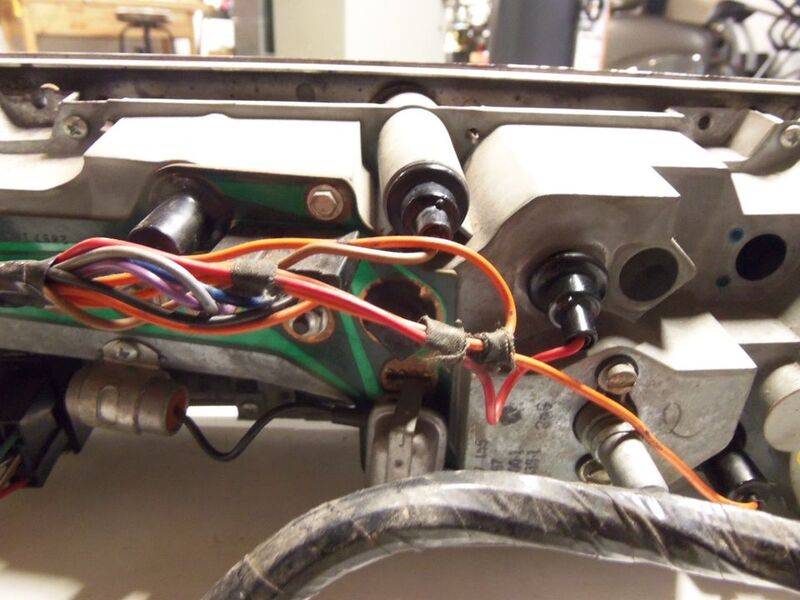

to the left of tach I have one orange wire with light plugged in, pictured. Is that correct? The other orange wires appear to be fine.

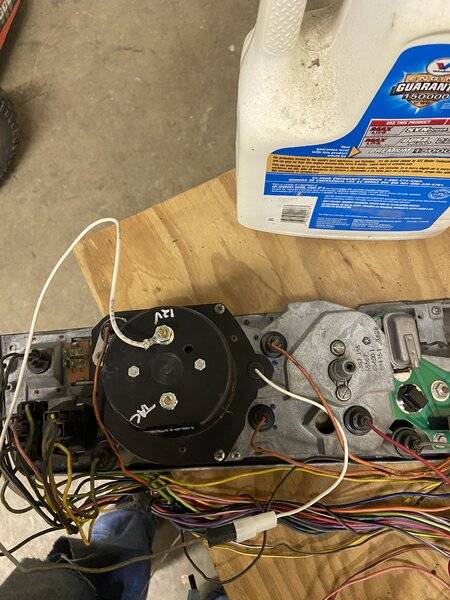

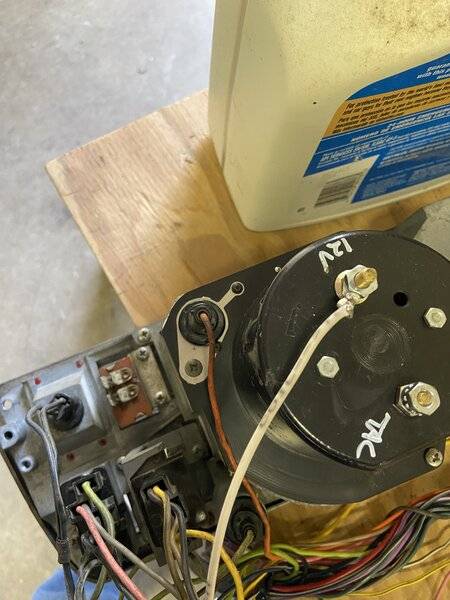

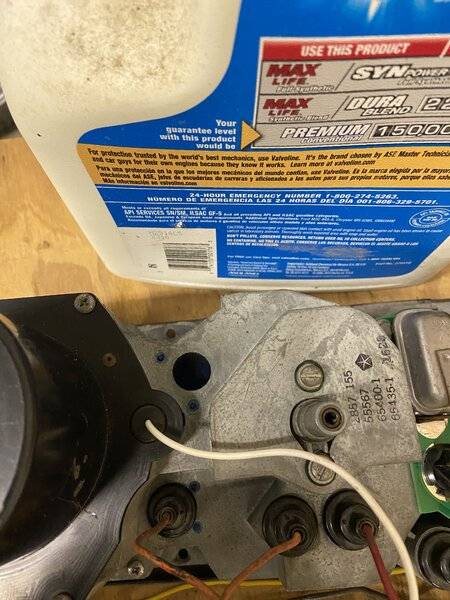

what light goes in the hole to the right of the tach, pictured? Again, three lights, four holes.

As always, I appreciate the assistance and advice. It is taking longer than I anticipated, but can see the light at the end of the tunnel.



[davek]

I believe that is for the highbeam light and it should be red,someone correct me if Im wrong



[davek]

instrument lights are orange,left turn green right turn brown



[Photon440]

Shine a flashlight through each of the holes and see what lights up.



[Nacho-RT74]

The empty hole it gets clearly a blue lense attached so is cluster light. IMHO The hole at a side of the high beam indicator ( the one getting the red wire socket ) is unused.



[Nacho-RT74]

In fact searching around, some housings didn't get that hole opened

https://www.ebay.com/itm/1968-1970-...X-Dash-Cluster-Housing-Restored-/143554960156



[Nacho-RT74]

another example about the unused hole at a side of the high beam provision



[roadrunner57]

Shine a flashlight through each of the holes and see what lights up.

I did that and the only ones that showed were the signal lights. That was actually a very good idea thank you for that.



[roadrunner57]

So here is an update:
Black wire Illumination light is for brake indicator.
Green wire illumination light is left turn signal
Red wire illumination light is high beam
Brown wire illumination is right turn signal
The 3 orange wire illumination wires are correct as per the picture.

so do the two on each side of tach illuminate the tach and speedometer?
