Does someone have a picture or definitive dimensions of the hood stripes on a 1970 Road Runner? I can't find my "before" pictures and I'm seeing two different sets of dimension online. THANKS FOR THE HELP!


Does someone have a picture or definitive dimensions of the hood stripes on a 1970 Road Runner? I can't find my "before" pictures and I'm seeing two different sets of dimension online. THANKS FOR THE HELP!

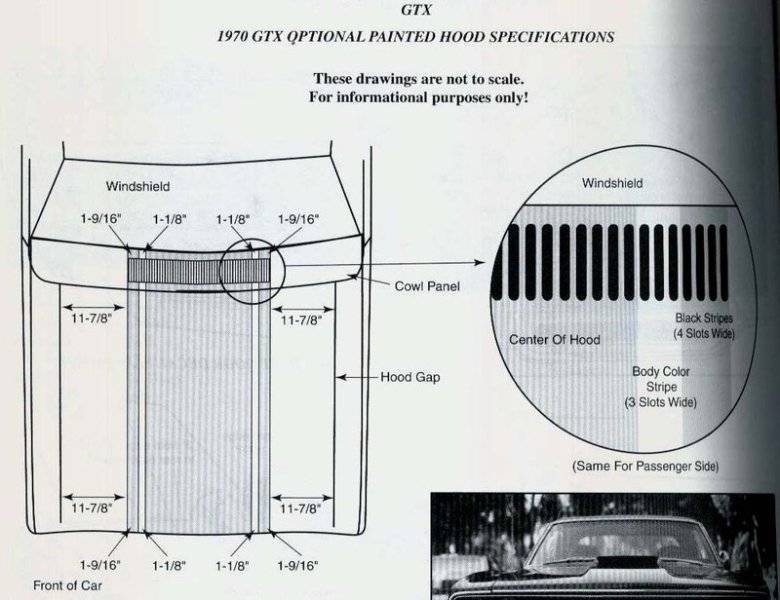

View attachment 1740645

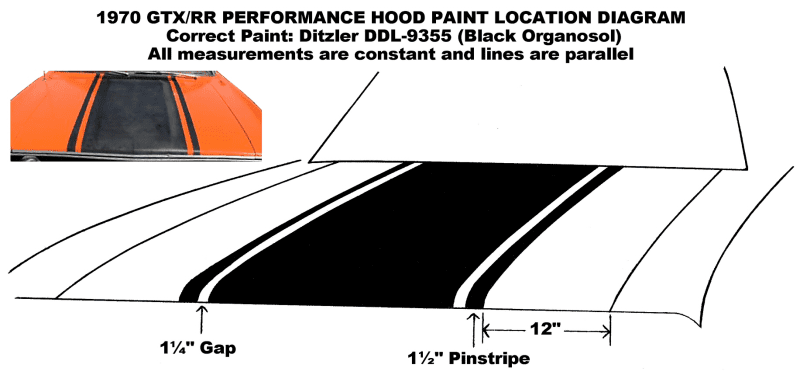

View attachment 1740647
I used the dimensions as per the YearOne catalog back in 91 but I’m sure some survivor guys will chime in on V21 specs

Does someone have a picture or definitive dimensions of the hood stripes on a 1970 Road Runner? I can't find my "before" pictures and I'm seeing two different sets of dimension online. THANKS FOR THE HELP!
View attachment 1740645
View attachment 1740647


That is what I used.

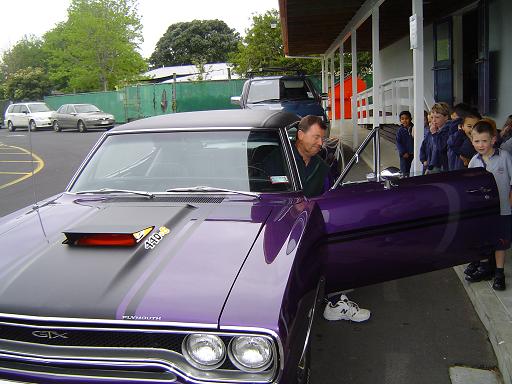

NZHR 1.jpg

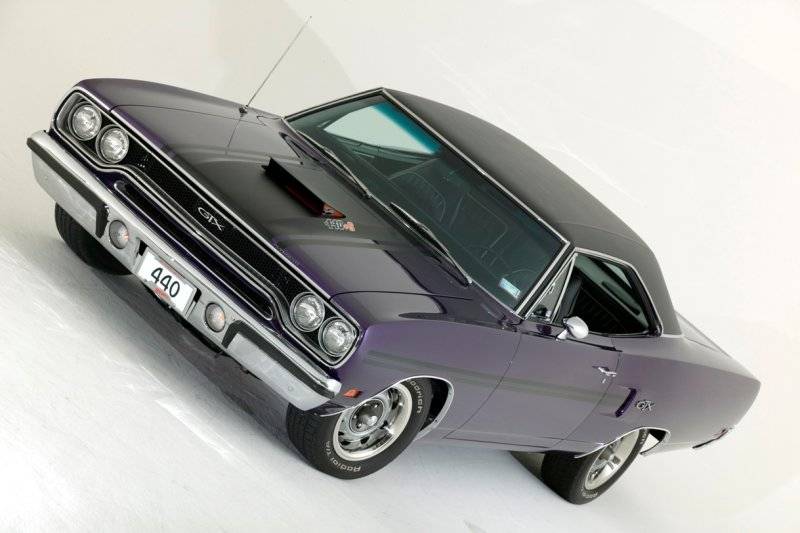

NZV8 reduced.jpg


Anything but that diagram will look a bit funky......it doesn't take too much deviation to just look wrong.

^^^ BTW, that last photo - my face is the result of floating an air biscuit moments before getting out of the car :lol:

I`ve seen both of those drawings, would be nice to have measurements off a survivor to verify which one is closer to factory.
