70 roadrunner brake lines into master cylinder correct ports??

[Jimclo2002]

I'm trying to find out the correct brake lines connections from proportion valve to the master cylinder. One end hass a purple end and the other has a black end that screw into the master cylinder. The two ports on the master cylinder face the driver fender. I may have my two lines into the master backwards



[Photon440]

On the master cylinder, the front port feeds the rear brakes whether disc or all drum.



[Jimclo2002]

Do you or someone have a photo of the brake line from the master cylinder ports to the proportioning valve and what port is correct for the rear and front message cylinder feeds to the correct position feeds to the proportion valve



[Shorthorse]

Are you working with all OEM stuff and just to make sure, is your setup disc front and drum rear?



[Jimclo2002]

This is a OEM restoration. 11 inch drums in front and rear of the car . New master cylinder with power booster.ALL New lines and wheel cylinders. Original proportion valve and the 3 way proportion split/reducer then to the axel rubber line (this is about 1.5 foot behind the main proportion valve).



[Shorthorse]

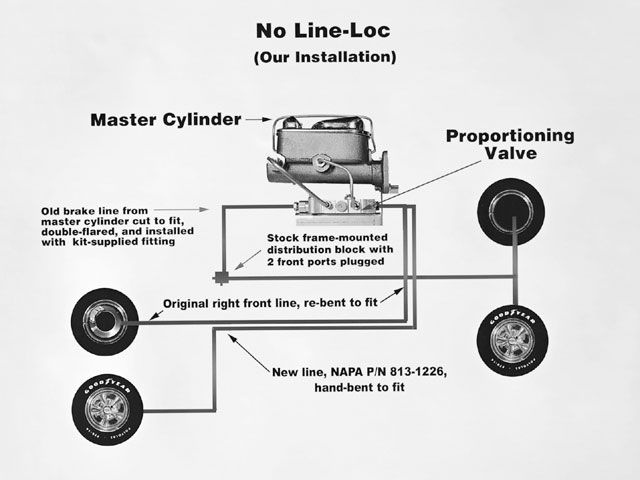

Here's a generic setup.
