72 Charger hood lock/latch cable install

[69-beeper]

Anyone have a picture of the hood latch showing how the cable routes and mounts on to the latch? For 71-72 Charger with “loop” end cable.



[440 Charger]

Probly have a 73



[69-beeper]

Probly have a 73

If it has the cable with the “loop” end I’d love to see a pic of the locations the cable mounts to both the latch and the latch mount/support.

One way or another, I’m going to mount this new hood properly.



[440 Charger]

If it has the cable with the “loop” end I’d love to see a pic of the locations the cable mounts to both the latch and the latch mount.

One way or another, I’m going to mount this new hood properly. View attachment 1074631

Not sure if mine has a loop for the latch



[69-beeper]

Not sure if mine has a loop for the latch

Yeah, I read somewhere that 73-74 cables used ball ends, but I see latches/locks listed as 71-74. I would think they’d be different. The various venders may be confusing the lock with the secondary safety latch, I don’t know.



[JDmac72chrgr]

loop side of cable comes from drivers side hole behind light buckets' assembly, front to back of center brace and loop goes over "disk" on latching mechanism; ball end for pull assembly



[Corman]

1973



[69-beeper]

loop side of cable comes from drivers side hole behind light buckets' assembly, front to back of center brace and loop goes over "disk" on latching mechanism; ball end for pull assembly

View attachment 1074694

Thanks! Appreciate the information.

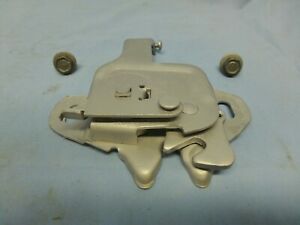

That latch looks just like the one I bought off eBag not too long ago. Same color and drop cloth actually, no sheet metal screw though, lol



[69-beeper]

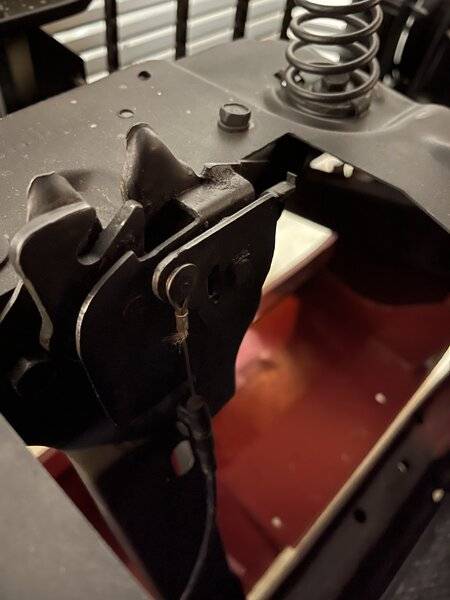

1973View attachment 1074695

Nice! Thank you for the pic!



[moparmarks]

Charger and Satellite use the same latch and cable but the latch is mounted differently on each. Is the same for 71-4. The above pic is correct for Charger.
