A/C dash bare frame photo for 68 satellite or GTX?

[68 Sport Satellite]

I have a 1968 satellite with non A/C dash. Everything is apart and I want to convert the dash for A/C. I have bought the center and side vents and a few ducts. Does anyone have a photo of the bare dash frame with everything removed for reference in where I should cut the metal for the side vents? I know the center vents are above the ash tray vertical sliding door. I have a photo of a complete dash with everything installed, but would like one of the bare metal if possible.



[appaking]

dash pics

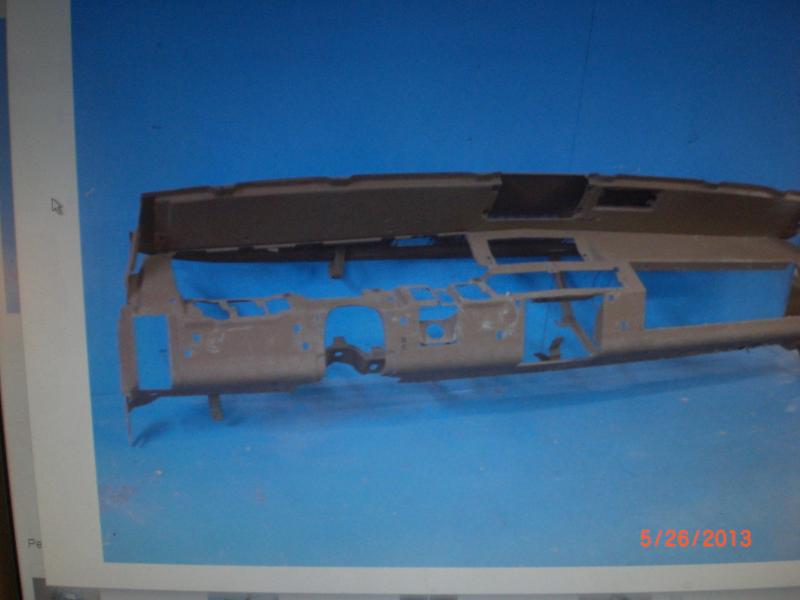

I don't quite know what I've got here. I bought this at Carlisle a couple of years ago. It's from a '69 coronet or Super bee. It was a non A/C dash but when I disasembled it, it had all the holes in the right places. I haven't tried fitting the ducts into the holes yet. What does your non- A/C dash look like? If this is an A/C dash, I would be happy to take closer, more detailed pics or measurements. Let me know!
:yes:
Kev

I have a 1968 satellite with non A/C dash. Everything is apart and I want to convert the dash for A/C. I have bought the center and side vents and a few ducts. Does anyone have a photo of the bare dash frame with everything removed for reference in where I should cut the metal for the side vents? I know the center vents are above the ash tray vertical sliding door. I have a photo of a complete dash with everything installed, but would like one of the bare metal if possible.

- - - Updated - - -

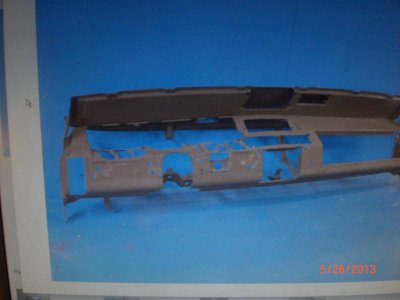

Ok, I just realized this is not the frame I have lying on my garage floor, mine still has the cap pad on it. This is one that I downloaded for reference from E-bay. That explains the correct A/C holes. This frame is still on Ebay if you need pics of the right side.

Kev
