Adjustable Proportioning Valve Mounting HELP!

1968rt

Well-Known Member
Local time
12:48 AM
Joined
Jul 28, 2010
Messages
1,024
Reaction score
1,447
Location
New York
Is it Ok to mount before the distribution block? I was told it could set off the warning light when the pressure is decreased.

if it is for the rear brakes, it should be after the distribution block.

Is it Ok to mount before the distribution block? I was told it could set off the warning light when the pressure is decreased.

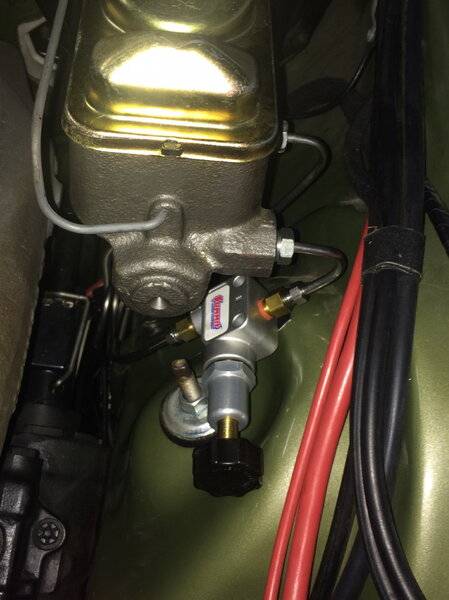

View attachment 1221875


You have it plumbed to the rear line, as long as that line remains feeding the rear brakes up to and after the dist block you are fine
Is it already adjusted? If it's adjusted and low pressure valve did not activate then it's good, once adjusted it doesn't change unless you re-adjust

if it is for the rear brakes, it should be after the distribution block.

That is where you want it. You do not want it between the master and valve as shown in your photo.

All the ones I've had state in the directions to install it in the rear line after the block,

According to Rick Ehrenberg all that distribution block **** can be discarded. Plumb the rear brakes directly to the proper master cylinder reservoir using a Y on the rear end. Plump the fronts directly to the appropriate rusing a T. Plump the prop valve anywhere in the rear line. In its current state, the brake warning light will only come on when you have no brakes - presumeably you won't need a light to tell you that !!

According to Rick Ehrenberg all that distribution block **** can be discarded. Plumb the rear brakes directly to the proper master cylinder reservoir using a Y on the rear end. Plump the fronts directly to the appropriate rusing a T. Plump the prop valve anywhere in the rear line. In its current state, the brake warning light will only come on when you have no brakes - presumeably you won't need a light to tell you that !!

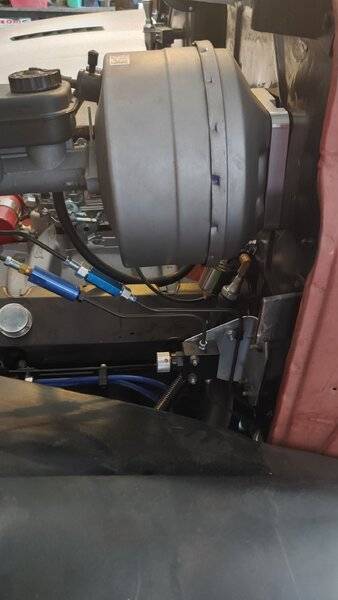

That's how mine is done. No distribution block,
proportioning valve plumbed to the rear. Also
have a 2lb residual check valve in each line.
Dual diaphragm booster, 1.032 Dia master.
Ford dual piston calipers on the front, Ford
Explorer single piston on the rear. Pedal feel is
excellent. Stops on the proverbial dime.

Get rid of the residual check valves - not required with disc and were only needed on old style drum cylinders.

Get rid of the residual check valves - not required with disc and were only needed on old style drum cylinders.
They're needed in my case due to rhe piston
retracting a little further into the caliper
with no pedal pressure. The OP won't know
if they're needed until he gets his system
installed.
The valves keep the fluid in the calipers from siphoning back into the master cylinder when you let up on the brakes. If your master cylinder isn't that low or is slightly above the calipers, it can still happen if you're parked on a hill!
If you ever have to press on the brake pedal twice to get a hard pedal, you need them.

Last edited:
That is where you want it. You do not want it between the master and valve as shown in your photo.

I will ask why it has to be mounted after the block? I am doing a front disk conversion on my 64 Fury. It has a updated dual master cylinder distribution block with no proportioning valve and I will be using the adjustable valve for the rear brakes. The distribution block is mounted on the frame rail in its original position.
Didn’t mean to step on your post but it seems silly to start another to ask one question.

I will ask why it has to be mounted after the block? I am doing a front disk conversion on my 64 Fury. It has a updated dual master cylinder distribution block with no proportioning valve and I will be using the adjustable valve for the rear brakes. The distribution block is mounted on the frame rail in its original position.
Didn’t mean to step on your post but it seems silly to start another to ask one question.
You want it past any proportioning or distribution points. Once there it can do its job correctly as far as adjustable pressure control to the two rear brakes.

It’s a 64 Fury, there is no valve in the brake line and just a solid brass dual port block that changes the direction of the fluid.

It’s a 64 Fury, there is no valve in the brake line and just a solid brass dual port block that changes the direction of the fluid.
So the adjustable valve goes between the block and the rear flex hose.

Thanks for your response and I respect your knowledge but you still haven’t given a mechanical reason why it can’t be done. Later cars had the distribution blocks on the inner fender well which made it easy to do what you recommend but I won’t mount a valve that can be damaged outside a protected area. Thanks again!

Thanks for your response and I respect your knowledge but you still haven’t given a mechanical reason why it can’t be done. Later cars had the distribution blocks on the inner fender well which made it easy to do what you recommend but I won’t mount a valve that can be damaged outside a protected area. Thanks again!
All I can tell you is what I was always told and have done. The adjustable valve goes after any proportioning or distribution points. Without seeing your cars brake configuration it is hard to tell you anything else. The valve is a control. You want it set up so the pressure you are trying to control inputs the valve. The output goes directly to what you are trying to control. So on the valves output you do not want the fluid going anywhere else. You want it going to the rear wheels in your case.

I understand that, the 64’s had a very simple system when built. I changed to a dual master cylinder and due to that I went to a 64 style distribution block which as far as hydraulics go is nothing more than a block that redirects the fluid but it does not limit or share the fluid. The front port on the MC goes to the rear inlet on the distribution block, makes a 90 degree turn and goes directly to the rear brakes.
The rear port on the MC goes to the front inlet on the distribution block and is split left and right to the front brakes. There is nothing that meters the pressure or flow of the hydraulic fluid after it leaves the MC.
Hope this helps you to understand the system in my car.

Last edited:

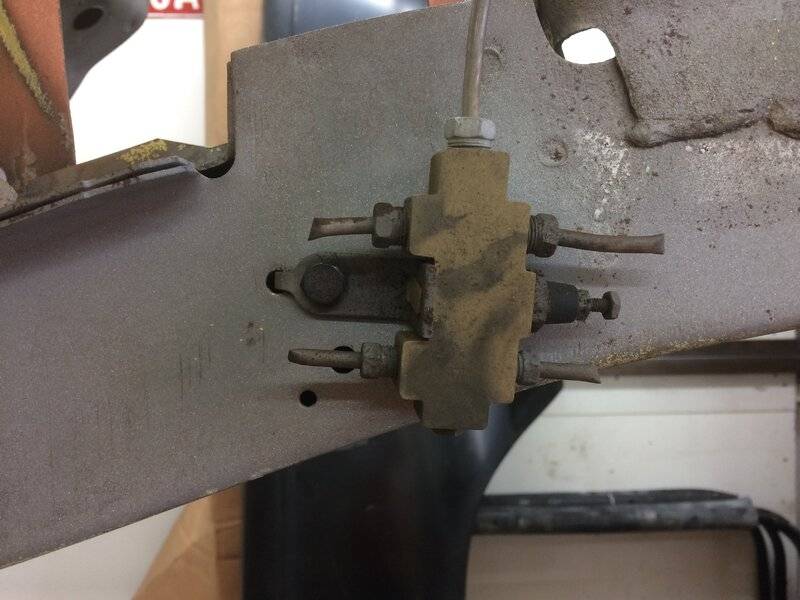

Below is the forward most block (first photo).
Both front and rear lines from the m/c go in the front of the block. The top rear line and top line go to each front brake. The bottom rear line goes to the rear brake block (2nd photo).

The ONLY purpose this block serves is to measure any pressure difference between either the front or rear lines (indicating a low fluid level in a reservoir) and if so, turn on the "brakes" light.

NOTE: I may be mistaken on the entry/exit points but that doesn't matter - the point is this block is useless and can be sold for scrap.

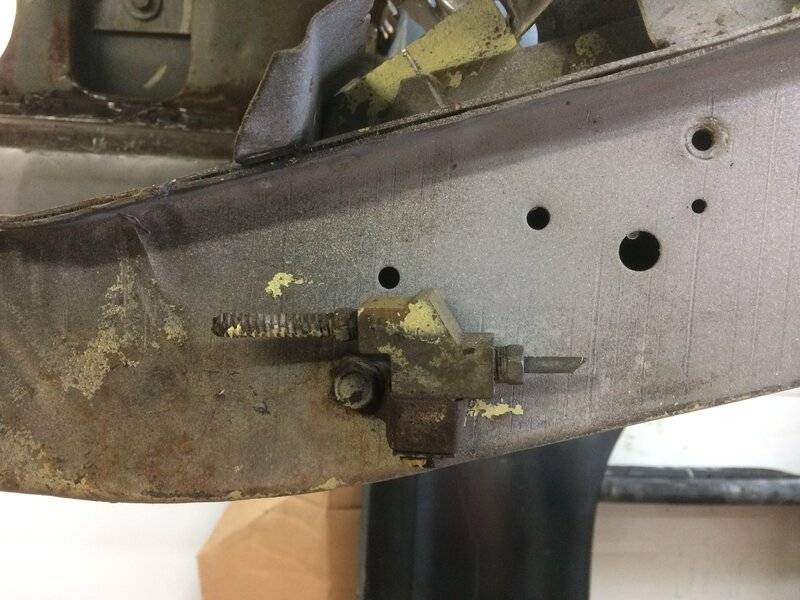

The block in the second photo is the factory preset proportioning valve.

BOTH of these can be tossed in the trash. Run your front line to a T block from which you feed each caliper.
Put your adjustable prop valve anywhere you damn well please as long as its before the rear brake splitter.

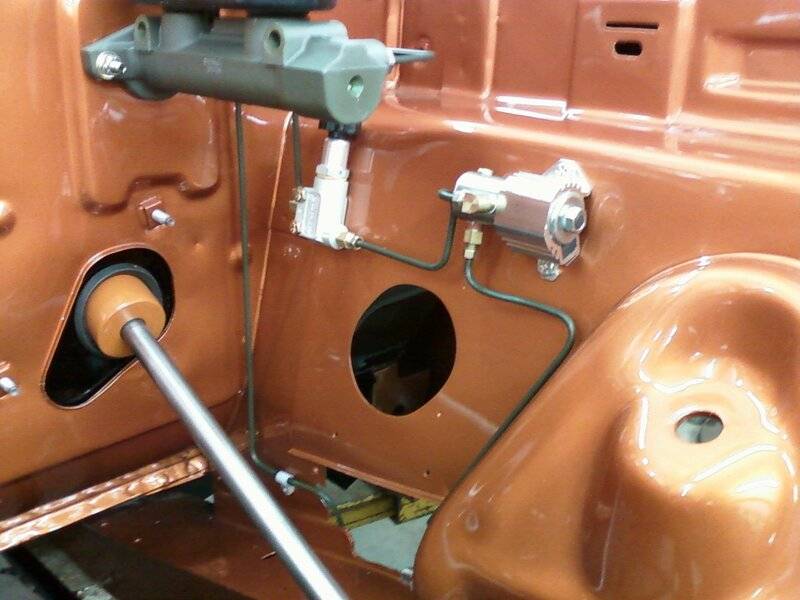

The last photo is probably one of the cleanest installs I've ever seen.

IMG_1683 (2018_04_23 16_45_56 UTC).JPG IMG_1682 (2017_05_31 15_16_58 UTC).JPG brake line install1 (2016_11_22 02_37_15 UTC).jpg

64’s DO NOT have a proportioning valve, I can’t make things an more clearer.

64’s DO NOT have a proportioning valve

So what !! They didn't have dual reservoir master cylinders either ... until you installed one! Get rid of that useless block you have.

Last edited:
Maybe this will help….

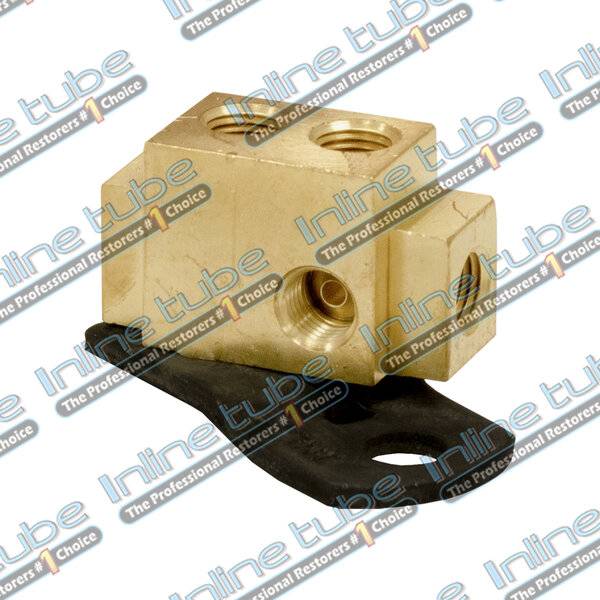

C-body Polara, Coronet, Fury, Belvedere, Valiant, Barracuda, Satellite brake line distribution block for dual master cylinder cars


When converting to dual master cylinder or disc brakes. This is a brand new distribution block for 62-64 cars. This block is made exactly like the original but separates the front brakes from the rears, so if a line was ever to blow out you would not loose both front and rear brakes. The block mounts to the frame just below the master cylinder just like the original. The master cylinder lines screw into the top while the left and right front lines screw into the sides and the front to rear screws into the back. This block is for dual master cylinder upgrades. With safety as the number one concern with brakes this is a simple upgrade to make you car safer. If you are converting to a dual master cylinder simply attach the block plumb new master cylinder lines and you are done. If you are converting to disc brakes do the same but remember to add in your adjustable valve somewhere in the front to rear brake line so you can tune in the rear brakes. This piece is exact to NOS in every detail. It is the correct size, shape and thickness brass with the bracket attached exactly as the original was. This is a concourse level brass part with phosphate bracket. The original is impossible to restore since the bracket does not come off the piece. Please view my other brake listings.
