Alum. Hemi Head Crossram Intake Torque Value

[2059]

Searched for about an hour for this info. No luck. Anyone know the torque value for the 16 cap screws that secure the crossram intake to a set of Aluminum Stage V Hemi heads? I suspect it is an in/lbs value.



[69Bee]

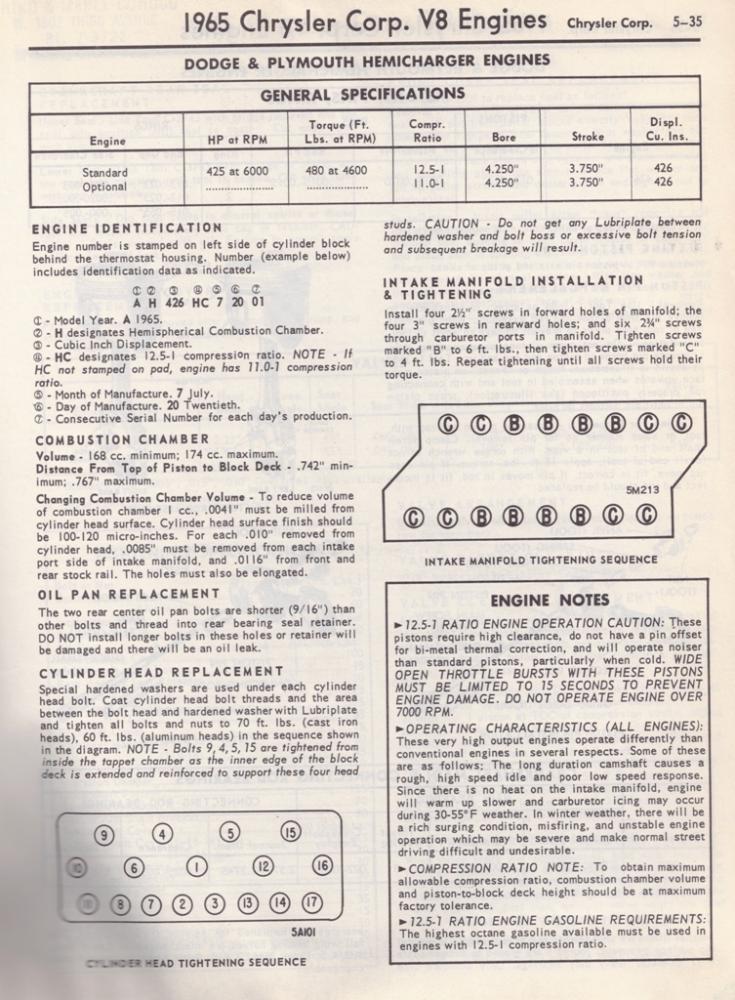

Hope this is what you are looking for:



[Gpuller]

Wait...wasn't your motor all done? What's up?



[snakeoil24]

8 ft pounds and use a Wishbone torque wrench no clickers. make sure you lube bolts with 30 wt oil



[aldal]

So then as I understand you follow the procedure on the chart and run them all up to 8 foot pounds - is that correct?



[69Bee]

So then as I understand you follow the procedure on the chart and run them all up to 12 inch pounds - is that correct?

No, middle 8 ("B") go to 6 ft/lb, and the outer 8 ("C") go to 4 ft/lb.



[2059]

Yup! Exactly what i was looking for!! Thanks a ton 69Bee. Is that a page from the '65 manual or a tech bulletin? If so what is the number, if I may ask.

thanks,

Hope this is what you are looking for:

View attachment 174447

- - - Updated - - -

Wait...wasn't your motor all done? What's up?

Yaaa... long story, lets just say this long-block is going back for "enhancements" and better "breathing". Meanwhile; another long-block will be the "stunt double" for this years summer season...



[Gpuller]

Yaaa... long story, lets just say this long-block is going back for "enhancements" and better "breathing". Meanwhile; another long-block will be the "stunt double" for this years summer season...

The plot thickens...



[69Bee]

No, it is a page from my "National Service Data" Mitchell Manuals. I have 65 thru 76.



[2059]

The plot thickens...

:icon_super:
