Anyone Have a Bulkhead Connector Diagram?

Bruzilla

Bruzilla

Well-Known Member
Local time
8:55 AM
Joined
Jan 11, 2012
Messages
7,644
Reaction score
7,832
Location
Orange Park, FL
I'm looking for a diagram of a 1974 Roadrunner bulkhead connector that shows the numbers for each connector.

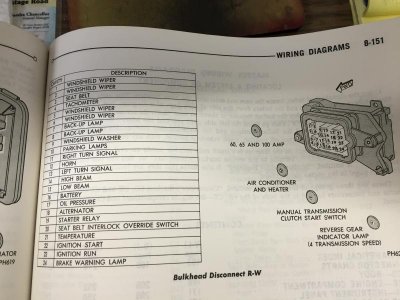

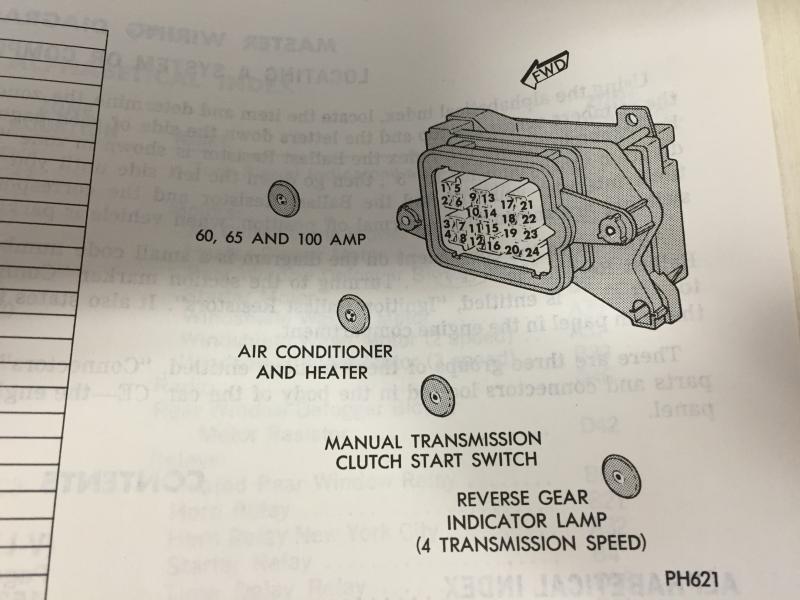

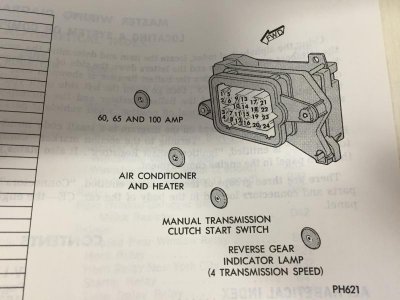

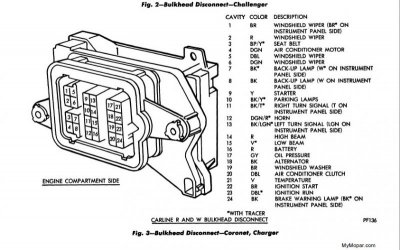

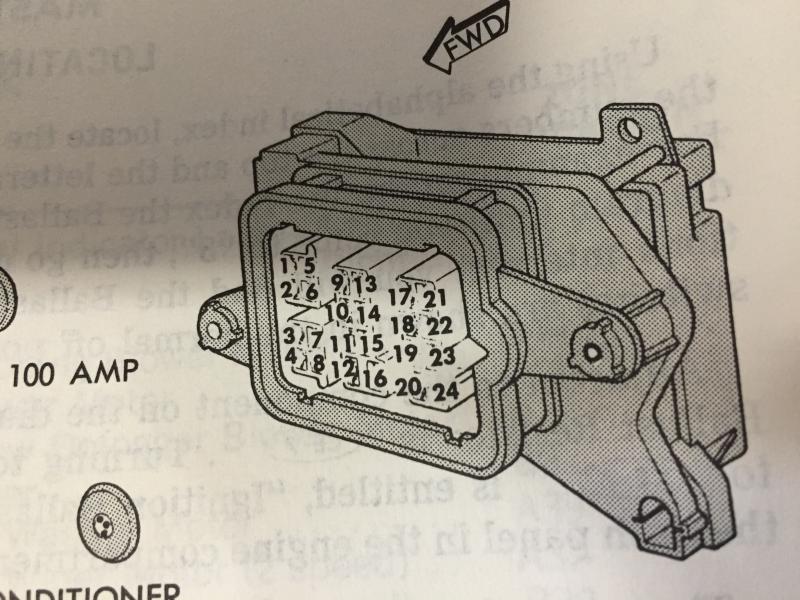

The first is from the 73 Dodge manual, and the last three are from my 74 Dodge manual, both showing R and W models.
