brake line routing

[daltonruss]

Anyone have a pic of the brake line routing from the m/c to prop valve then out to each wheel? 72 charger power front disk brakes. I got this in pieces so nothing to go by. Thanks



[YY1]

I'm planning to spend time at my storage this weekend, setting up and moving stuff around to start in on my 73 cowl. If I have time (and can remember), I'l ltry to take some pics of my 72.



[rocky61201]

Sorry I can't post any pics cuz my 71 is still at the body shop.

I converted 4 whell drums to power disc up front and stock drums in the rear. I purchased the stock 72 front disc/rear drum proportioning/combination/metering valve and pre bent brake lines from inline tube .com. I purchased the prebent brake lines because basically I suck at bending and flaring these things.

Because I purchased the stock style 72 prop valve and pre bent lines everything pretty much bolted right up with minimal work and no guessing on the routing.

Anyway when I got my car back I'll post some pics.

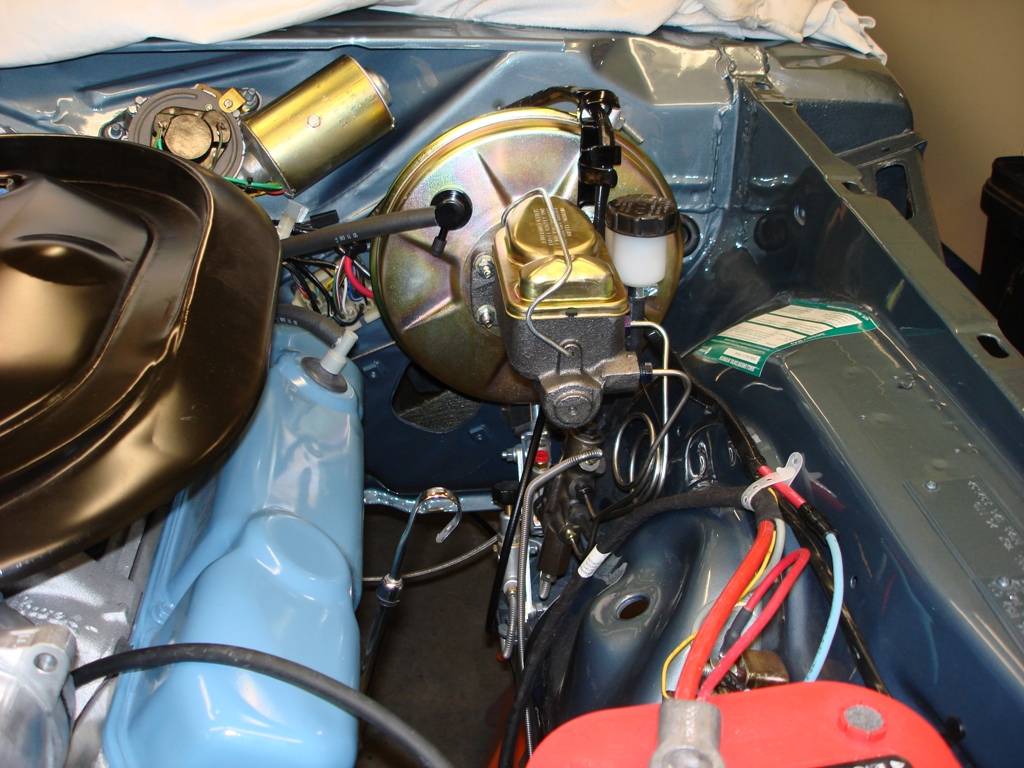

[72RoadrunnerGTX]



[daltonruss]

thanks 72RR just what i needed!!!
