Brake Pedal return Spring

[vn800]

Hello

In the parts catalog is a spiral spring pictured for the brake pedal.
Who maybe has a photo where bzw.wie looks this spring or is attached?
Is for 1969 B-body.
Maybe even with the reference source for the spring.

Or this music to the clutch pedal?
A return spring for the brake pedal should actually exist?


best regards

Franz



[lewtot184]

probably the anti-rattle spring. there's no return springs i know of.



[69Bee]

5-100-15 Spring, power brake lever pushrod 2534228

I do not recall ever seeing it either. The best explanation I can give is it keeps the pedal from leaning on the power booster linkage.



[HT413]

pretty sure that's just an anti-rattle spring. I can say this - my dad's brakes kept hanging up on his 68 vette, so he suspected a similar 'return spring' as the culprit. after tearing apart his dash to get at the spring, turned out it was a bad master cylinder. All those springs generally do is keep just a bit of tension on the pedal to keep it from rattling, the m/c's mechanism is what is supposed to push back on the pedal, keeping it off the booster.



[440+6]

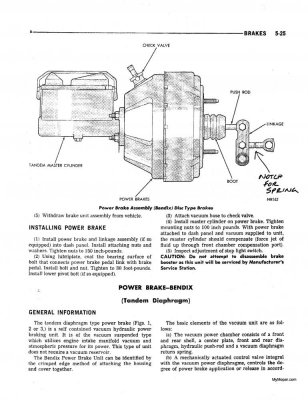

That spring goes from a hole on the top flat part of Bracket 5-31-15 on your drawing, to the notch in the rod as shown on my drawing.
My car has it in place and it's an anti rattle spring.



here is a pic of mine



[vn800]

That spring goes from a hole on the top flat part of Bracket 5-31-15 on your drawing, to the notch in the rod as shown on my drawing.
My car has it in place and it's an anti rattle spring.

View attachment 305418
here is a pic of mine

View attachment 305420

Hello

Thanks for the Info.
I have no brake booster and have what is on the drawing to see this linkage does not apply for me probably the anti rattle spring!

best regards

Franz



[5.7 hemi]

That pic above it to show how the spring clip is used to help support push rod, on power and manual brake cars.
